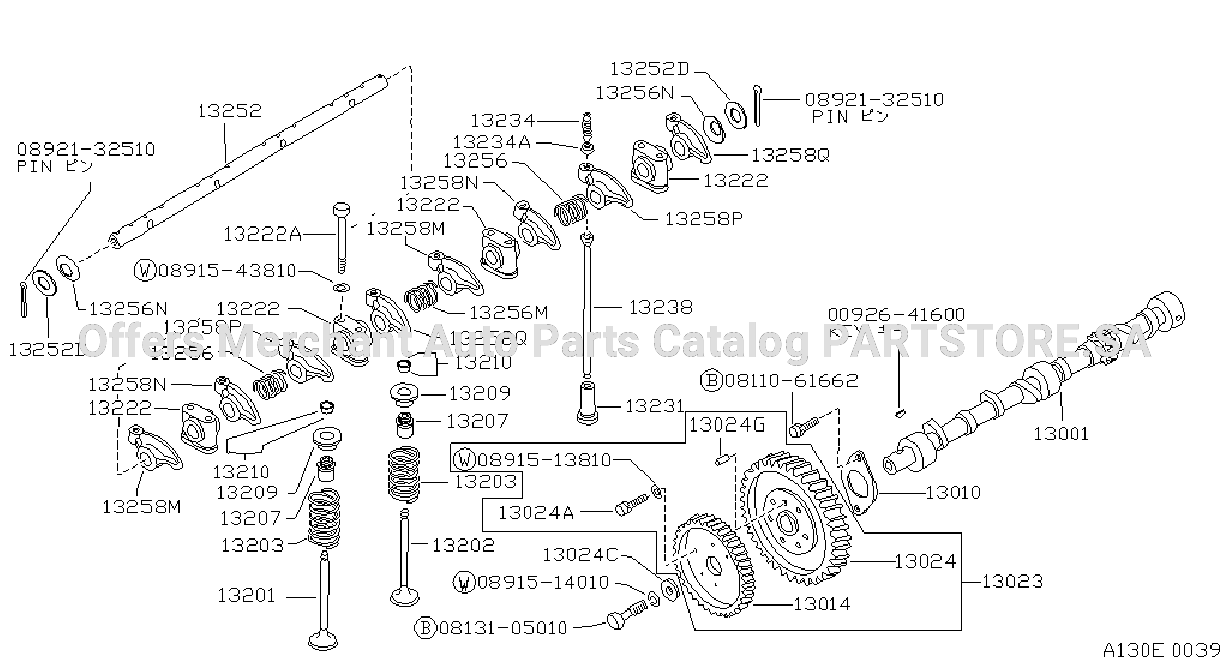

Camshaft Valve Mechanism
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 130-E01-01 | Camshaft Valve Mechanism | 1985 - 1987 |
ENGINE: SD23
|
Parts in this diagram 37
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0092641600 | 0092641600 | KEY | |||
| 0152205104 | 13024G | PIN - DOWEL, SPROCKET | |||
| 0811061662 | 0811061662 | BOLT - HEX | |||
| 0813105010 | 0813105010 | ボルト, ヘクサゴン | |||
| 0891513810 | 0891513810 | WASHER - SPRING | |||
| 0891514010 | 0891514010 | WASHER - SPRING | |||
| 0891543810 | 0891543810 | WASHER - PLAIN | |||
| 0892132510 | 0892132510 | PIN - COTTER SPLI | |||
| 1300137509 | 13001 | CAMSHAFT ASSY | |||
| 1301076203 | 13010 | PLATE - LOCATING, CAMSHAFT |
of
4
