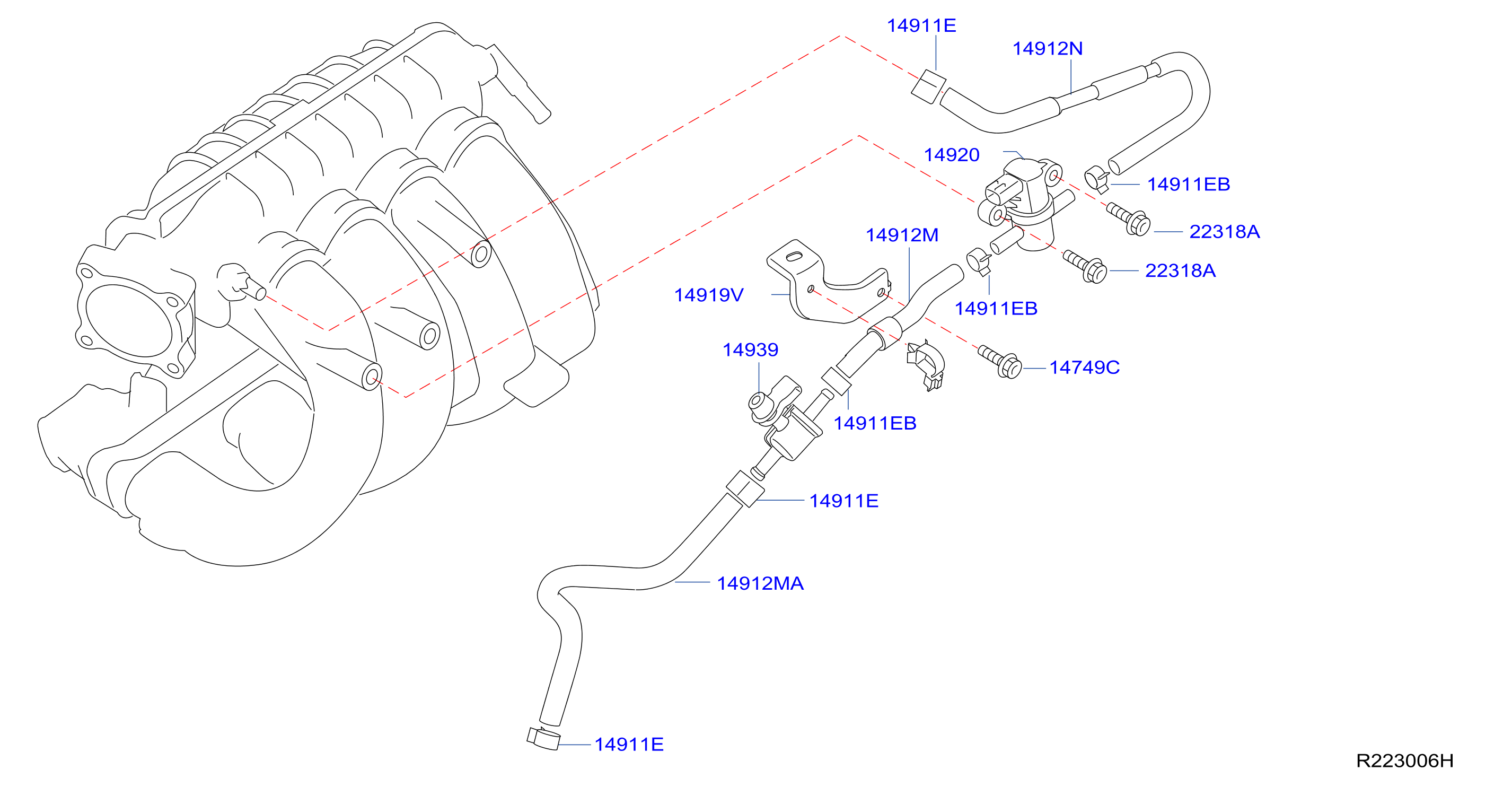

Engine Control Vacuum Piping Front
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223A-001-01 | Engine Control Vacuum Piping Front | 2009 - ... |
ENGINE: QR25DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N8021 | 22318A | BOLT | |||
| 0155800411 | 14911E | CLAMP - HOSE | |||
| 14912JA00A | 14912N | TUBE - ANTI EVAPORATION CONTROL | |||
| 14912JA00D | 14912M | HOSE - FUEL EVAPORATION CONTROL | |||
| 14912JA00E | 14912MA | HOSE - FUEL EVAPORATION CONTROL | |||
| 14919JA00A | 14919V | BRACKET - HOSE | |||
| 14930JA10A | 14920 | VALVE ASSY - CONTROL | |||
| 14939EA200 | 14939 | VALVE ASSY - EVAPO, SERVICE PORT | |||
| 313771XA00 | 14749C | BOLT |
