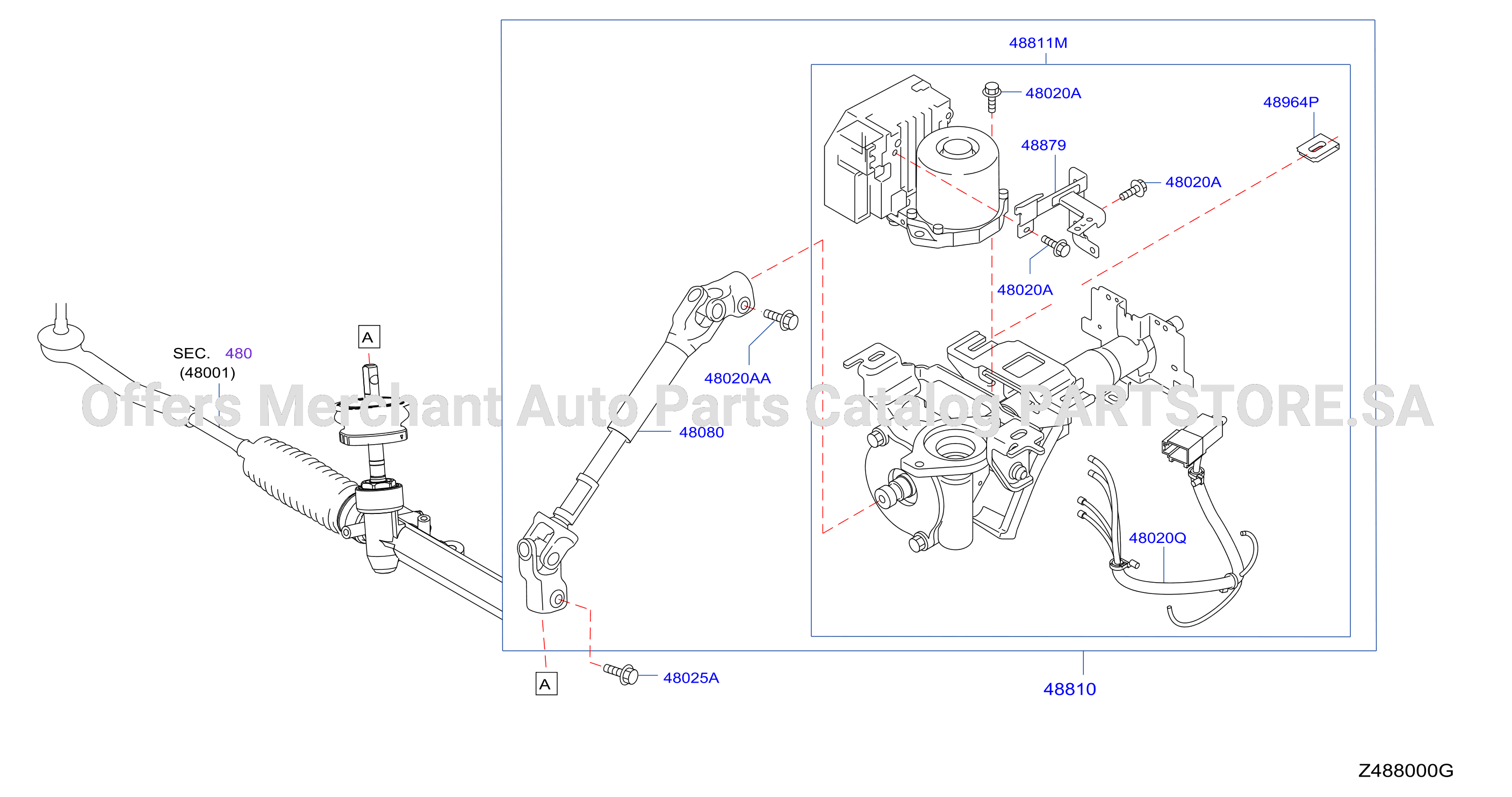

Steering Column
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 488A-001-01 | Steering Column | 2011 - ... |
ENGINE: MR16DDT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N0141 | 48025A | BOLT | |||
| 241681KA0A | 48020Q | HARNESS - SUB | |||
| 480803NA0A | 48080 | JOINT ASSY - STEERING COLUMN, LOWER | |||
| 480911KA0A | 48879 | BRACKET - HARNESS | |||
| 488103DF2A | 48810 | COLUMN ASSY - STEERING, UPPER | |||
| 488113DF2A | 48811M | CONTROL UNIT ASSY - EPS W / MOTOR | |||
| 489351KA0A | 48020A | BOLT | |||
| 48935JY00A | 48020AA | BOLT | |||
| 48964JK71A | 48964P | BLOCK - SLIDE |
