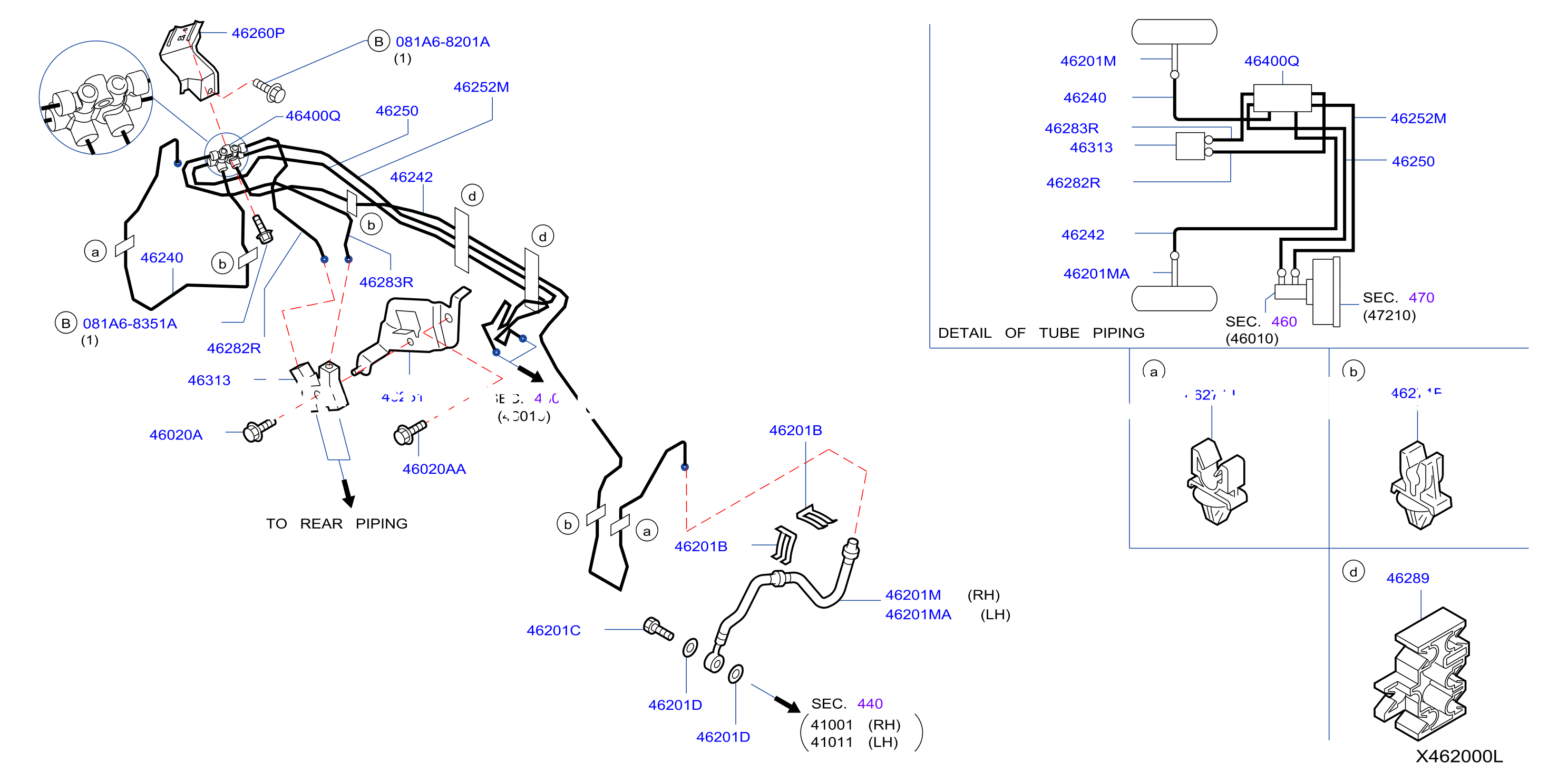

Brake Piping Control Front Piping W / O Abs
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-002-02 | Brake Piping Control Front Piping W / O Abs | 2008 - 2009 |
BODY: HB
|
No illustration for this section
The full parts list is available below
Parts in this diagram 17
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6041 | 46020A | BOLT | |||
| 01125N8021 | 46020AA | BOLT | |||
| 081A68201A | 081A68201A | BOLT - FLANGE | |||
| 081A68351A | 081A68351A | BOLT - FLANGE | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210AX001 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX006 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX00A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX00B | 46201MA | HOSE ASSY - BRAKE, FRONT |
of
2
