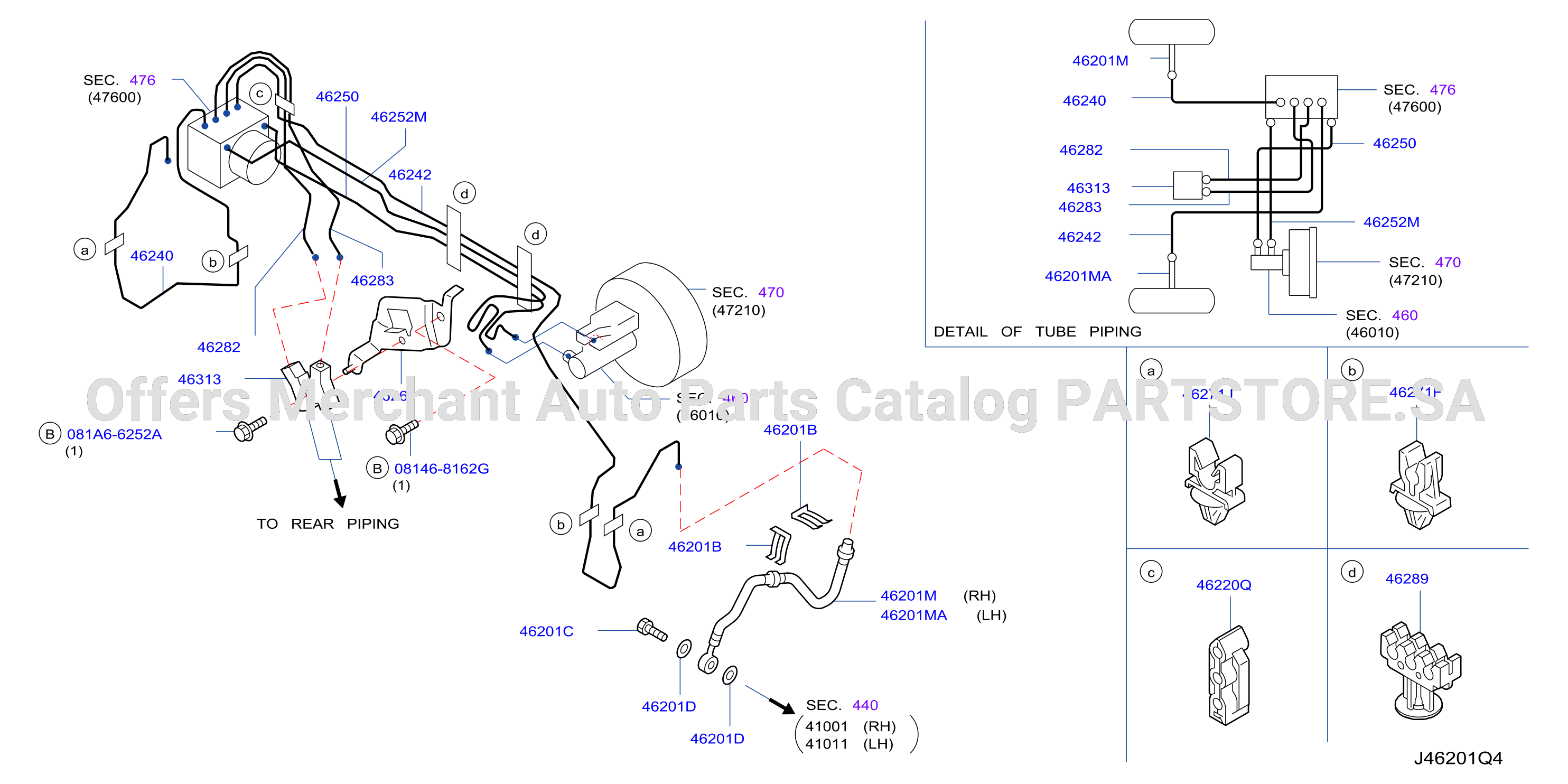

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-004-01 | Brake Piping Control Front Piping | 2006 - 2009 |
BODY: S
GRADE: PREMIUM
|
Parts in this diagram 28
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0156100241 | 46220Q | CLAMP | |||
| 081468162G | 081468162G | BOLT - HEX | |||
| 081A66252A | 081A66252A | BOLT - FLANGE, HEX | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210AX001 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX006 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX00A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210AX00B | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE |
of
3
