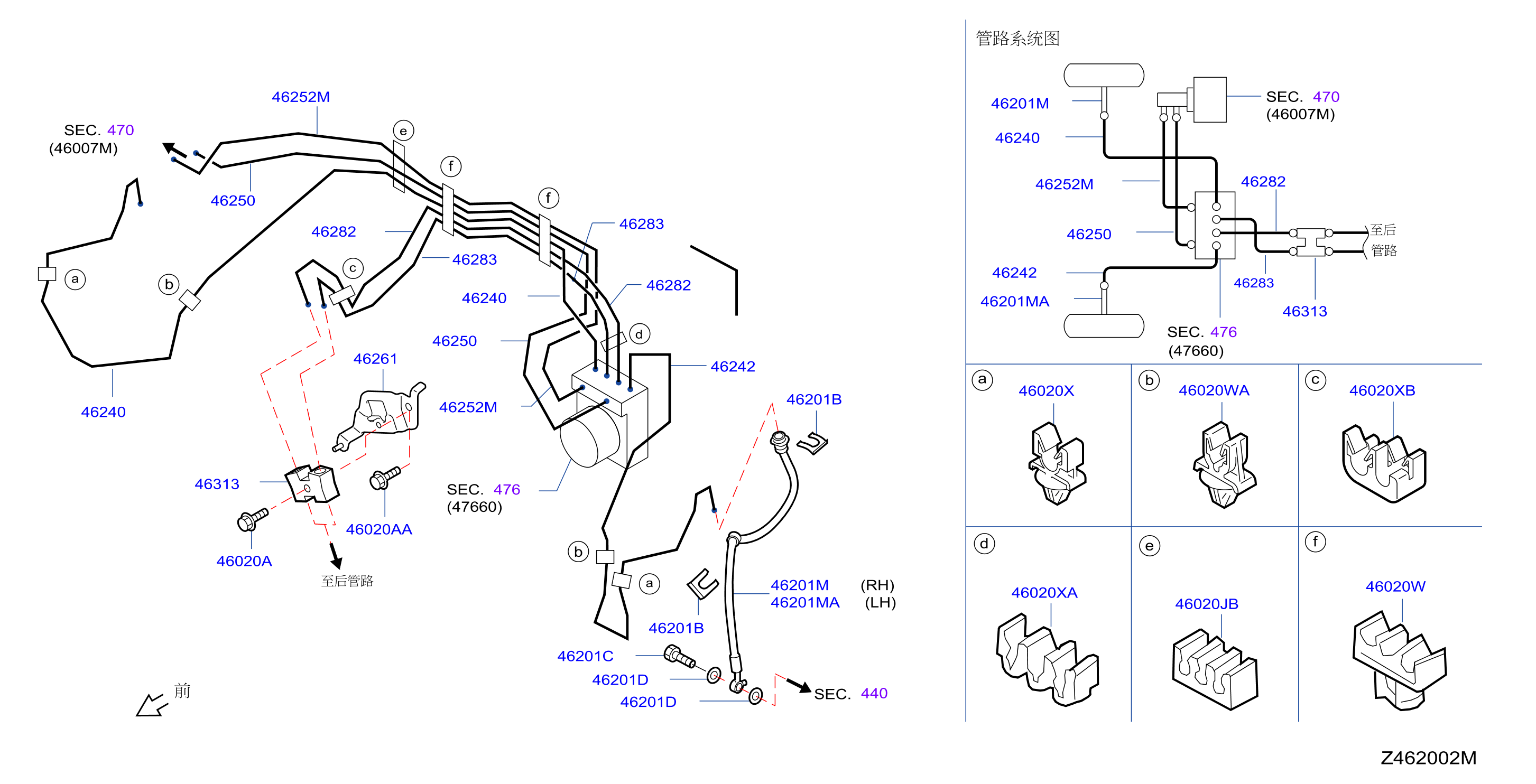

Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A6101 | 46020A | BOLT | |||
| 01125A8031 | 46020AA | BOLT | |||
| 01125N6041 | 46020A | BOLT | |||
| 01125N8021 | 46020AA | BOLT | |||
| 462063DA0A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462104NC0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462114NC0A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462405UR0A | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 462425UR0A | 46242 | TUBE ASSY - BRAKE, FRONT LH | |||
| 462505UR0A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | |||
| 462525UR0A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | |||
| 462613NA0A | 46261 | BRACKET - BRAKE TUBE | |||
| 46271EB70A | 46020JB | CLIP | |||
| 46271ED50A | 46020X | INSULATOR - TUBE | |||
| 46271ED51A | 46020WA | CLAMP | |||
| 462722S401 | 46020XB | INSULATOR - TUBE | |||
| 462723DA0A | 46020XA | INSULATOR - TUBE | |||
| 462825UR0A | 46282 | TUBE ASSY - BRAKE, REAR | |||
| 462835UR0A | 46283 | TUBE ASSY - BRAKE, REAR | |||
| 462893JA3A | 46020W | CLAMP | |||
| 46313JN00A | 46313 | CONNECTOR - BRAKE TUBE | |||
| 463560E00A | 46201C | BOLT - UNION, FRONT BRAKE HOSE |
