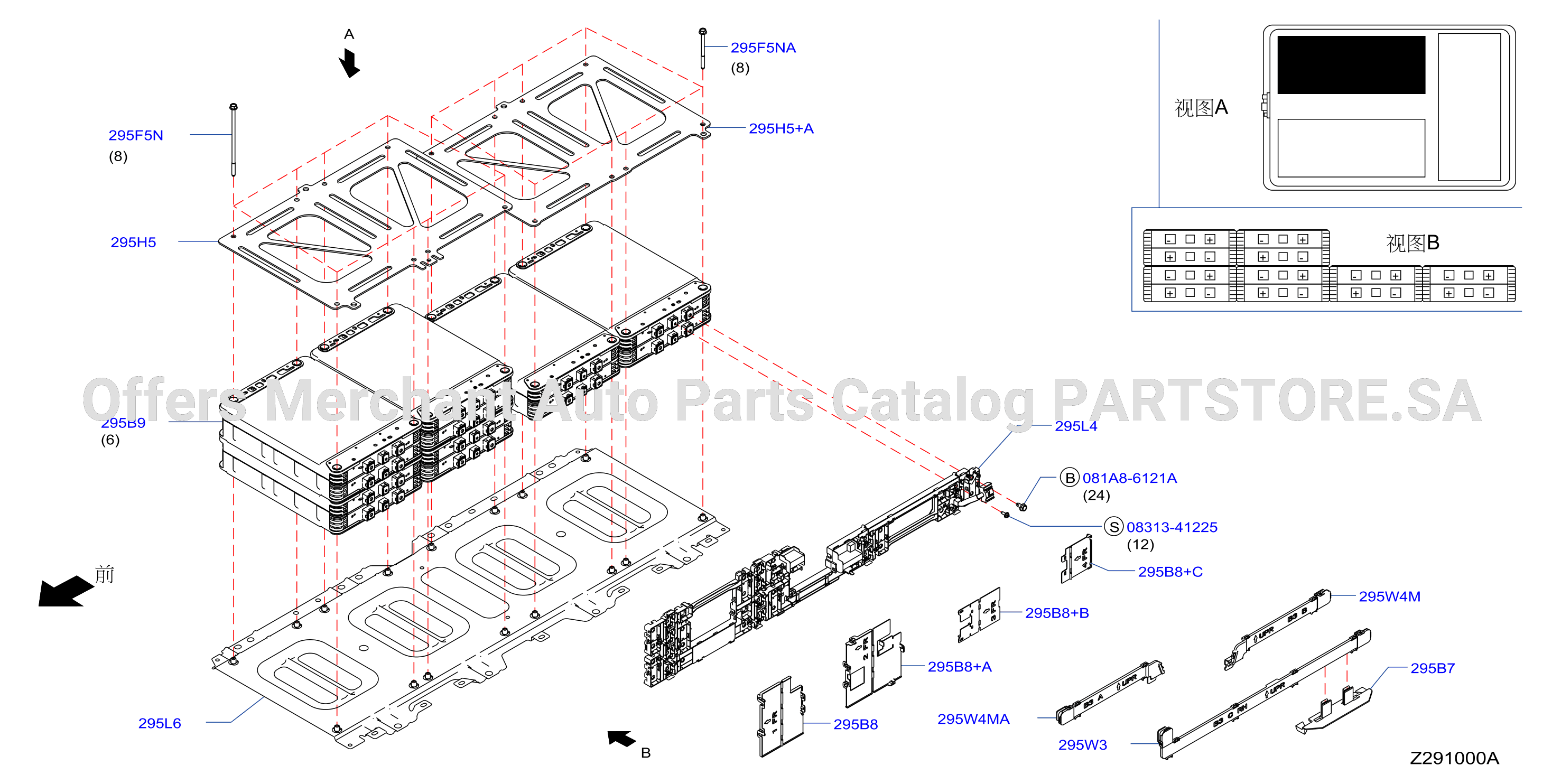

Electric Vehicle Battery Fr Stack Rh
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 291A-001-01 | Electric Vehicle Battery Fr Stack Rh | 2018 - ... |
BODY: SED
|
No illustration for this section
The full parts list is available below
Parts in this diagram 20
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081A86121A | 081A86121A | BOLT | |||
| 0831341225 | 0831341225 | SCREW - MACHINE | |||
| 295B74AF0A | 295B7 | BRACKET - BUS BAR | |||
| 295B84NP1A | 295B8 | COVER - BUS BAR | |||
| 295B84NP2A | 295B8+A | COVER - BUS BAR | |||
| 295B84NP3A | 295B8+B | COVER - BUS BAR | |||
| 295B84NP4A | 295B8+C | COVER - BUS BAR | |||
| 295B94AF0A | 295B9 | BATTERY MODULE - LITHIUM ION | |||
| 295F53NK0B | 295F5NA | BOLT - BATTERY | |||
| 295F53NK0C | 295F5N | BOLT - BATTERY |
of
2
