Electric Vehicle Drive System Traction Motor
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 290A-001-01 | Electric Vehicle Drive System Traction Motor | 2018 - ... |
BODY: SED
|
No illustration for this section
The full parts list is available below

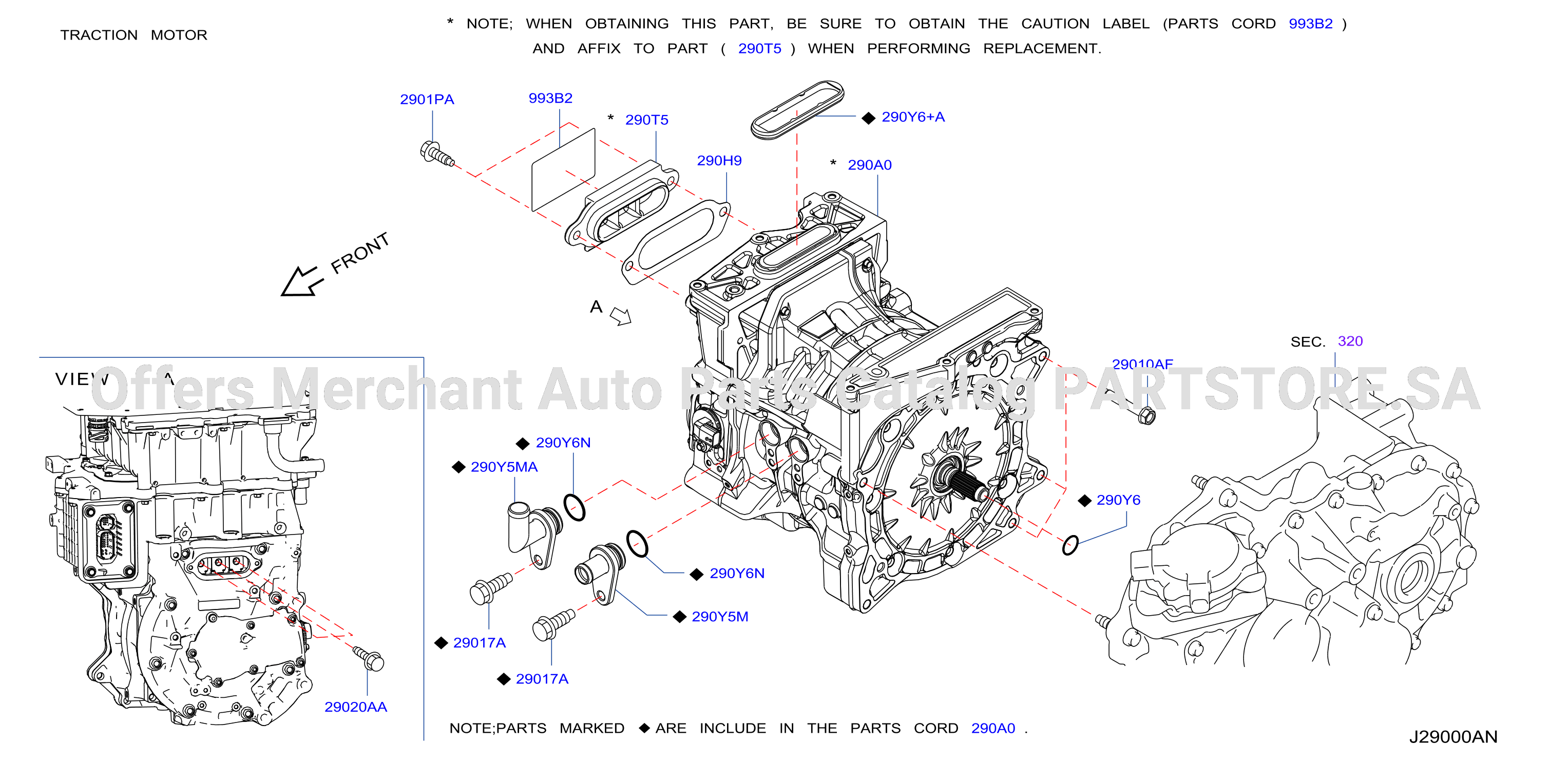

Parts in this diagram 13
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125E8021 | 29017A | BOLT | |||
| 01125N1191 | 29010AF | BOLT | |||
| 01125N8011 | 29020AA | BOLT | |||
| 290A05UR0A | 290A0 | MOTOR ASSY - TRACTION | |||
| 290B73NA0A | 2901PA | BOLT | |||
| 290H93NF0C | 290H9 | GASKET | |||
| 290T53NF0A | 290T5 | COVER - TERMINAL | |||
| 290Y53NF0A | 290Y5M | INLET - WATER | |||
| 290Y55SK0A | 290Y5MA | INLET - WATER | |||
| 290Y63NA1A | 290Y6 | SEAL - O RING |
of
2
