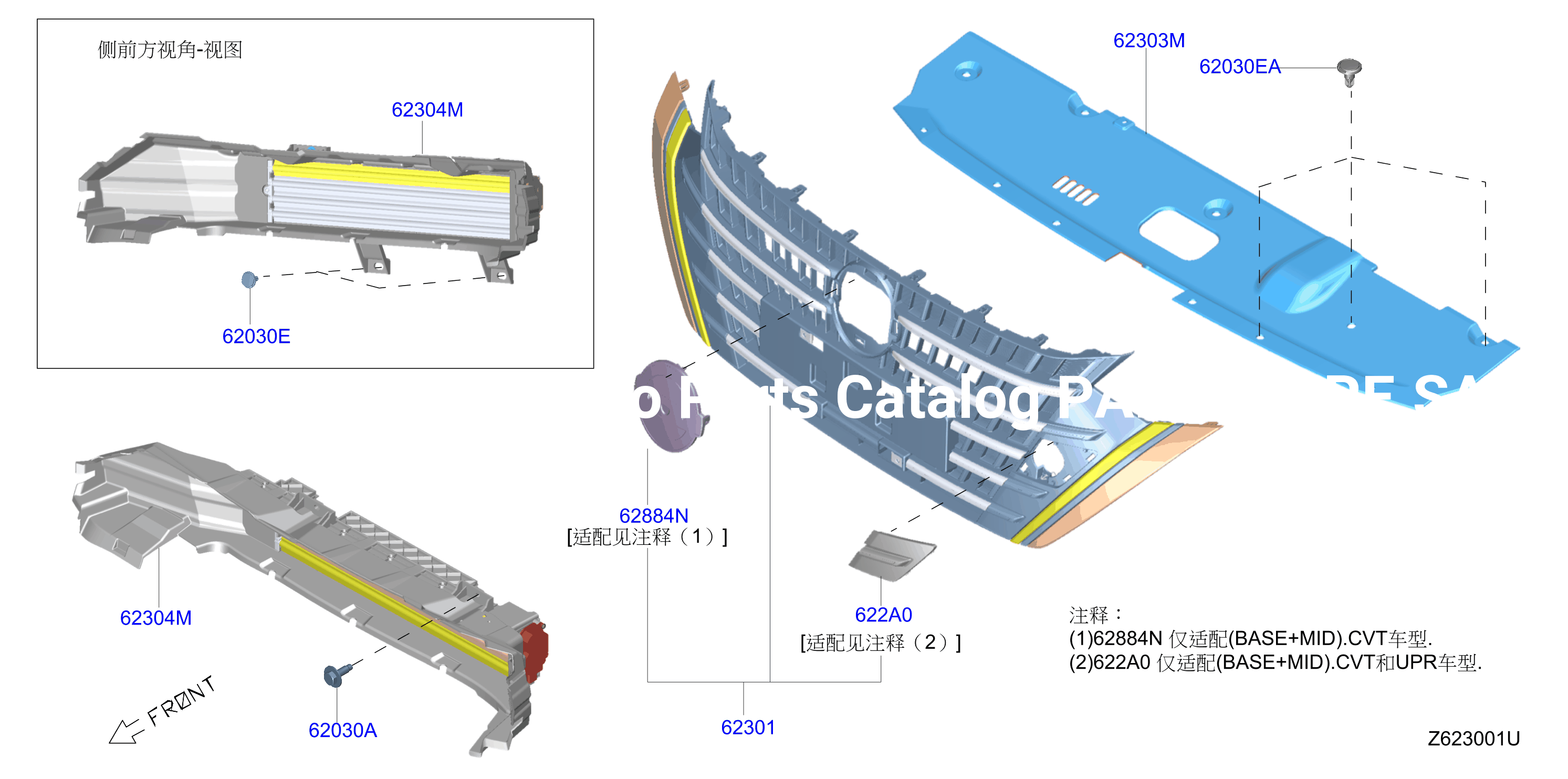

Front Grille 22Mc
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 623C-001-01 | Front Grille 22Mc | 2023 - ... |
BODY: SED
DRIVE: 2WD
ENGINE: HR16
GRADE: MID
TRANSMISSION: CVT
|
No illustration for this section
The full parts list is available below
Parts in this diagram 26
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01121A6031 | 62030A | BOLT | |||
| 0155310501 | 62030E | CLIP | |||
| 015532DR9A | 62030E | CLIP | |||
| 015532FR0A | 62030E | CLIP | |||
| 622A06LA0A | 622A0 | COVER - FRONT BUMPER BRACKET | |||
| 622A06YU0A | 622A0 | COVER - FRONT BUMPER BRACKET | |||
| 623106LA0A | 62301 | GRILLE ASSY - FRONT | |||
| 623106LA0B | 62301 | GRILLE ASSY - FRONT | |||
| 623106LA1A | 62301 | GRILLE ASSY - FRONT | |||
| 623106LA2A | 62301 | GRILLE ASSY - FRONT |
of
3
