Brake Servo Servo Control
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 470B-001-01 | Brake Servo Servo Control | 2021 - 2023 |
ENGINE: HR12
|
No illustration for this section
The full parts list is available below

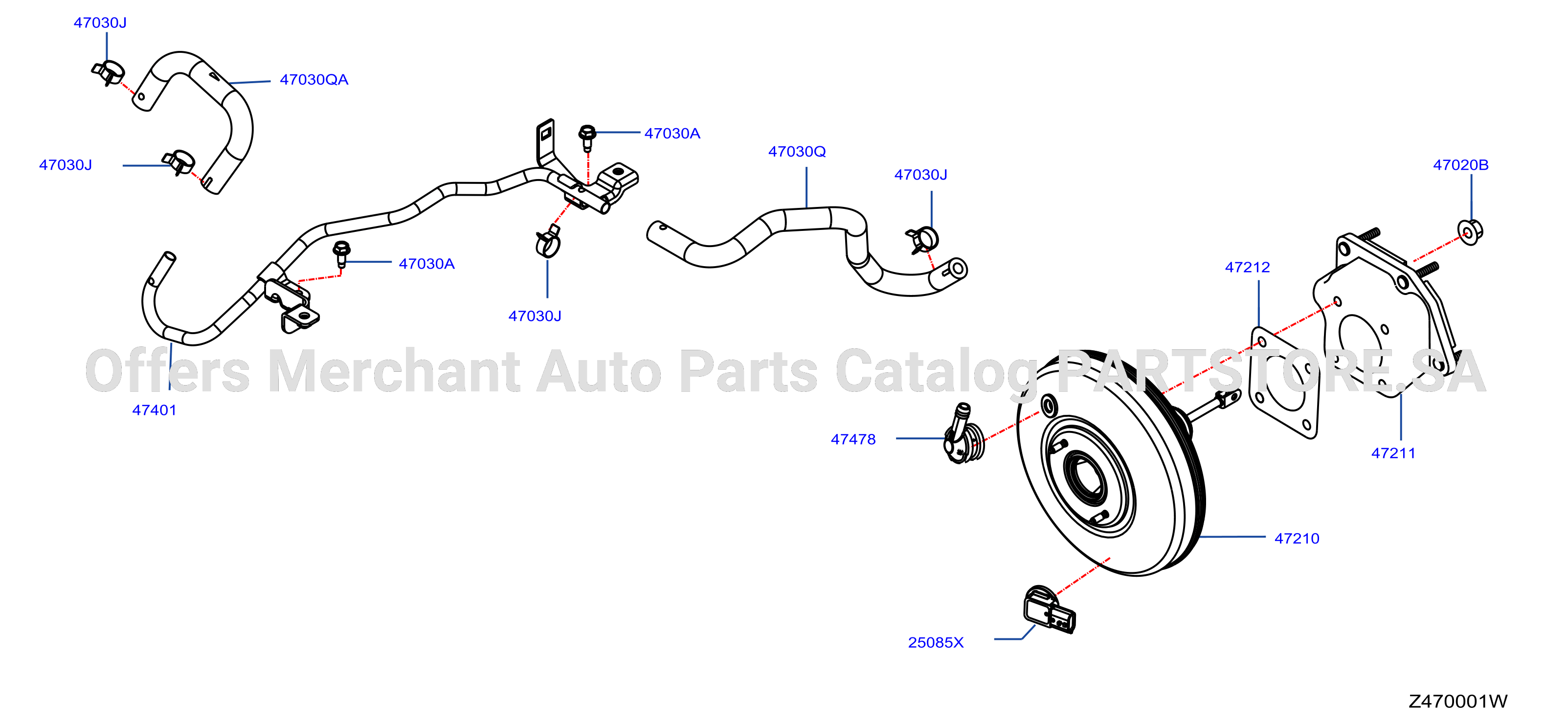

Parts in this diagram 11
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A6031 | 47030A | BOLT | |||
| 01225A8011 | 47020B | NUT | |||
| 1643917B0A | 47030J | CLAMP | |||
| 250853JA0A | 25085X | SENSOR - PRESSURE, BOOSTER | |||
| 472116LA0A | 47211 | SPACER - BRAKE BOOSTER | |||
| 472124CE0A | 47212 | PACKING - BRAKE BOOSTER | |||
| 474016LS0A | 47401 | TUBE - BOOSTER TO TANK | |||
| 474716LS0A | 47030Q | HOSE - BRAKE BOOSTER | |||
| 474746LS0A | 47030QA | HOSE - BRAKE BOOSTER | |||
| 474784CU0A | 47478 | VALVE ASSY - CHECK |
of
2
