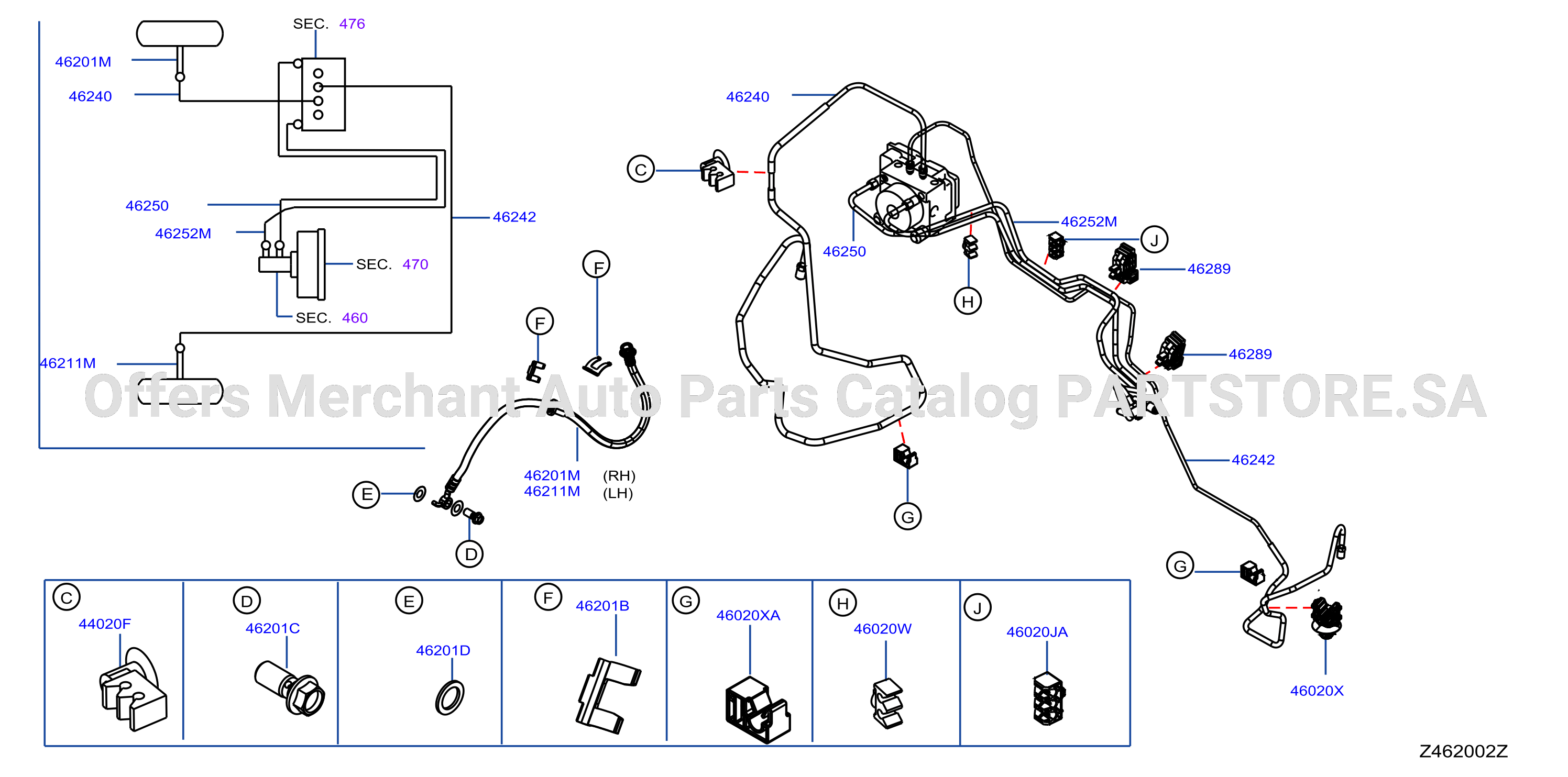

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-001-01 | Brake Piping Control Front Piping | 2019 - 2021 |
BODY: SED
GRADE: BASE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 15
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 1757400QAA | 46020X | INSULATOR - TUBE | |||
| 462063DA0A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462106LA0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462116LA0A | 46211M | HOSE ASSY - BRAKE, REAR | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462406LA0A | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 462426LA0A | 46242 | TUBE ASSY - BRAKE, FRONT LH | |||
| 462506LA0A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | |||
| 462526LA0A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | |||
| 462716LA0A | 46020XA | INSULATOR - TUBE |
of
2
