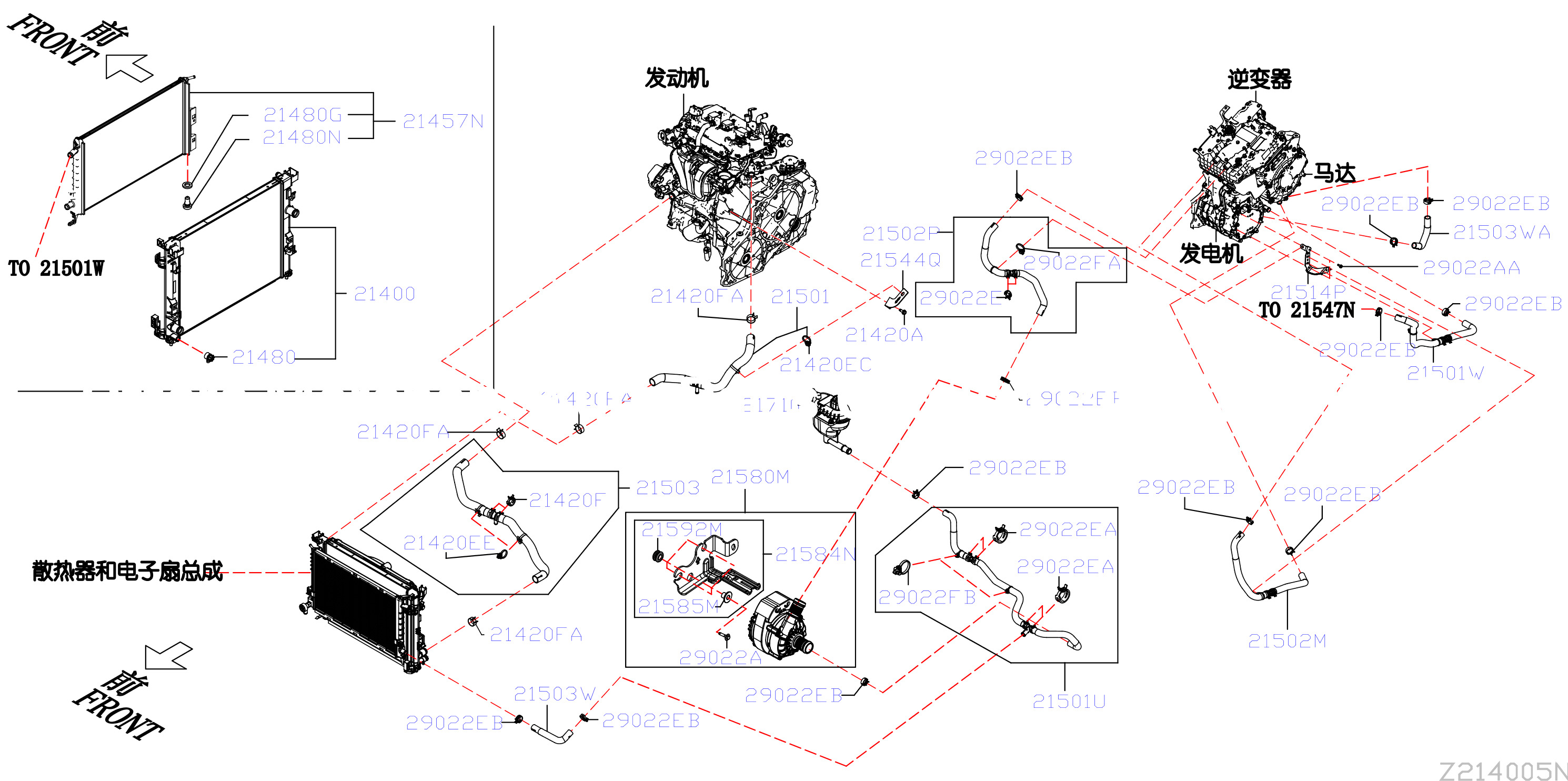

Parts in this diagram 26
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01121A6051 | 29022A | BOLT | |||
| 01125A6031 | 21420A | BOLT | |||
| 0155800741 | 21420F | CLAMP | |||
| 214106LS0A | 21400 | RADIATOR ASSY | |||
| 2144001G10 | 21480 | COCK - WATER DRAIN | |||
| 214415V000 | 21480G | PACKING - DRAIN COCK | |||
| 21441JK20A | 21480N | COCK - WATER DRAIN | |||
| 214576LS0A | 21457N | RADIATOR ASSY - INVERTER COOLING | |||
| 215016LS0A | 21501 | HOSE - RADIATOR, UPPER | |||
| 215016LS1A | 21501U | HOSE - PUMP, INLET | |||
| 215016LS2A | 21501W | HOSE - RADIATOR, INLET | |||
| 215026LS1A | 21502P | HOSE - PUMP, OUTLET | |||
| 215026LS2A | 21502M | HOSE - SUB RADIATOR, INLET | |||
| 215036LS0A | 21503 | HOSE - RADIATOR, LOWER | |||
| 215036LS1A | 21503W | HOSE - MOTOR, OUTLET | |||
| 215036LS2A | 21503WA | HOSE - MOTOR, OUTLET | |||
| 215146LS0A | 21514P | BRACKET - WATER HOSE | |||
| 215446LS0A | 21544Q | BRACKET - STAY | |||
| 215806LS0A | 21580M | MOTOR ASSY - SUB, COOLING | |||
| 215846LS1A | 21584N | BRACKET - SUB COOLING MOTOR | |||
| 215925WZ2B | 21592M | MOUNTING - RUBBER, MOTOR | |||
| 215935WZ2B | 21585M | SLEEVE | |||
| 217106LS0A | 21710 | TANK COMPL - INVERTER COOLING RESERVOIR | |||
| 24225C9900 | 21420EE | CLIP | |||
| 24225C9901 | 21420EC | CLIP | |||
| 925277990B | 29022E | CLAMP |
