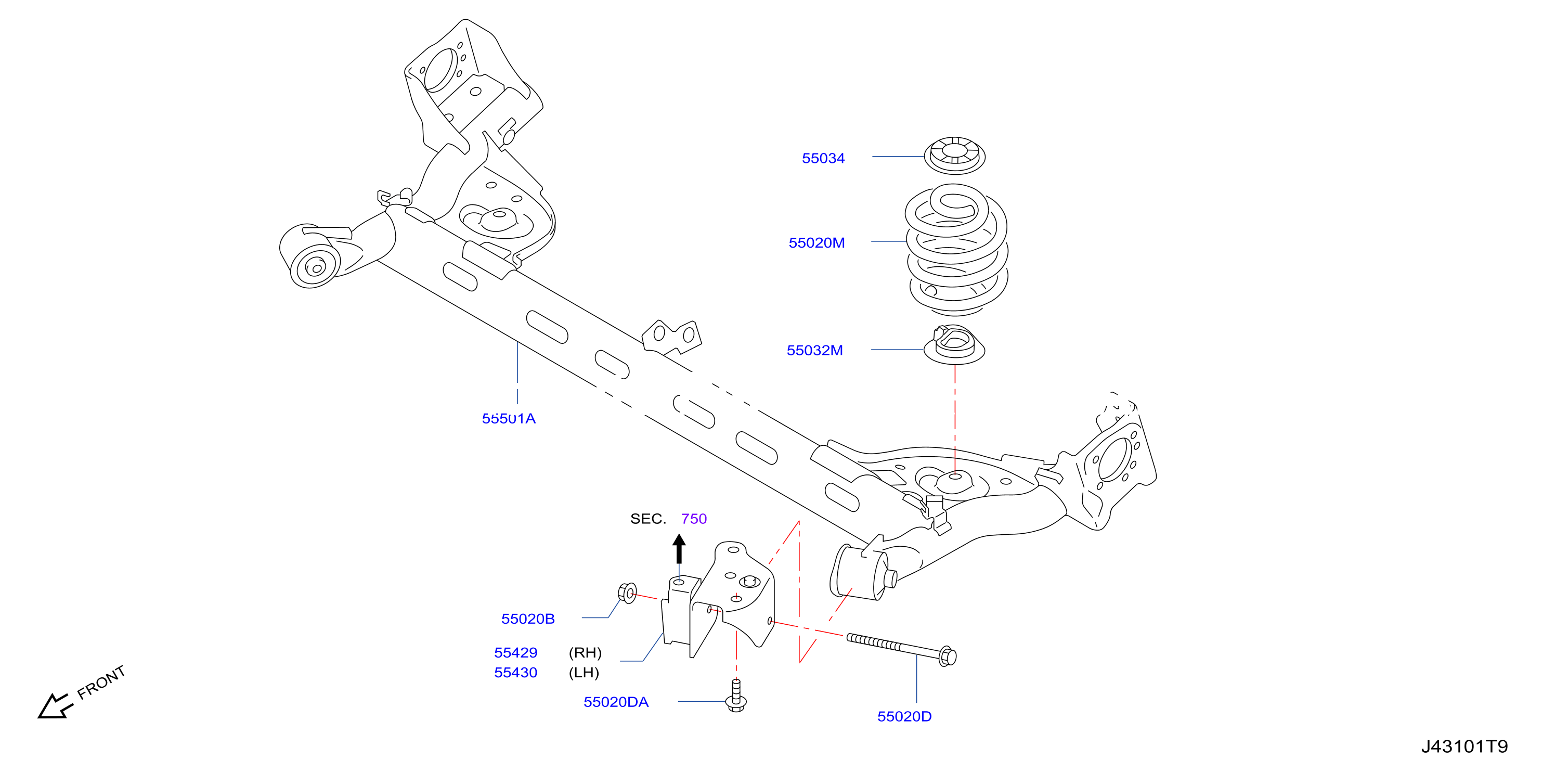

Rear Suspension Member
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 431A-002-01 | Rear Suspension Member | 2012 - 2015 |
ENGINE: HR16DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N0031 | 55020DA | BOLT | |||
| 01223N2011 | 55020B | NUT | |||
| 550203ST0A | 55020M | SPRING - REAR SUSPENSION | |||
| 550203ST0C | 55020M | SPRING - REAR SUSPENSION | |||
| 55032EE500 | 55032M | SEAT - RUBBER, REAR SPRING LOWER | |||
| 55034EE500 | 55034 | SEAT - RUBBER, REAR SPRING UPPER | |||
| 55222EN00A | 55020D | BOLT | |||
| 55429EE500 | 55429 | BRACKET ASSY - REAR SUSPENSION ARM, RH | |||
| 55430EE500 | 55430 | BRACKET ASSY - REAR SUSPENSION ARM, LH |
