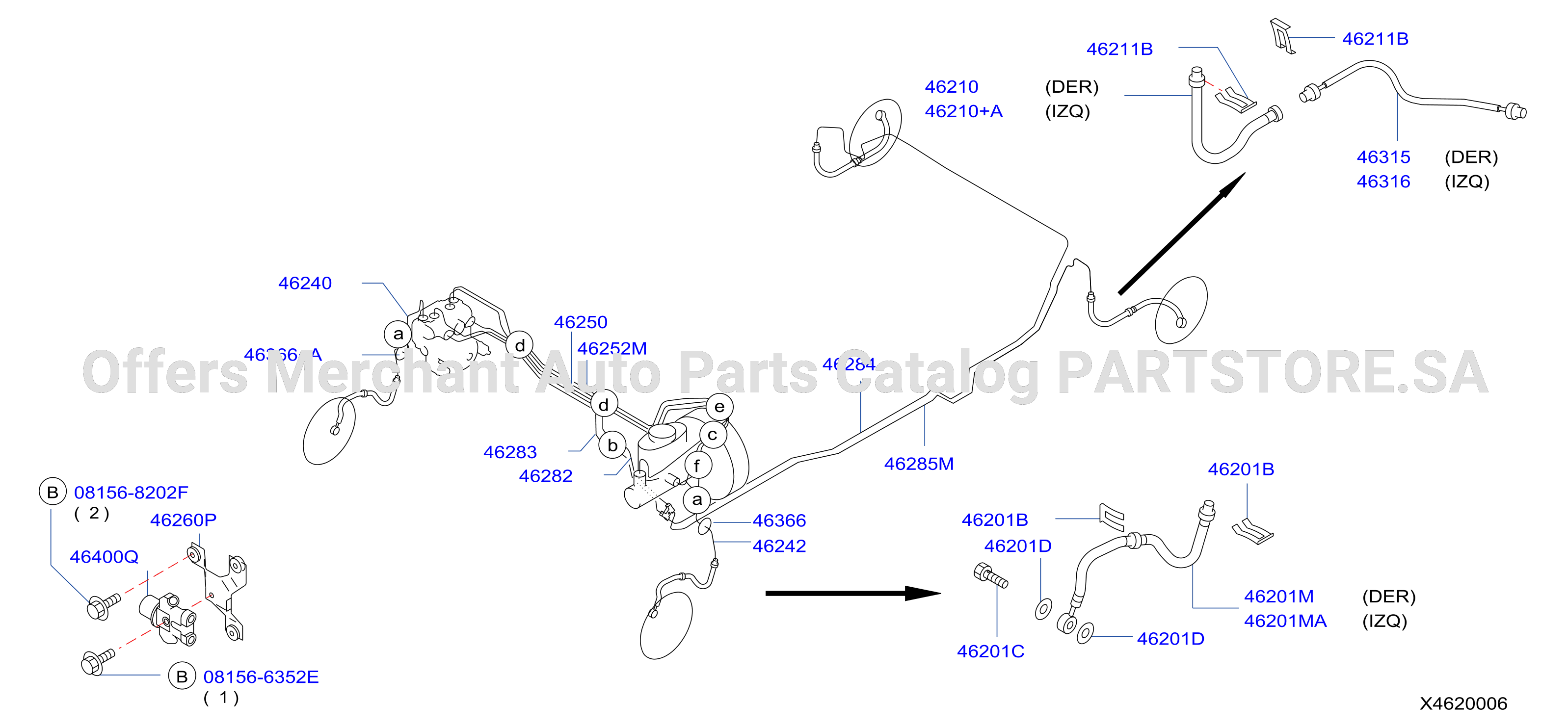

Brake Piping Control Piping F / Abs
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-002-01 | Brake Piping Control Piping F / Abs | 2000 - 2002 |
BODY: S
ENGINE: QG18DE
|
No illustration for this section
The full parts list is available below
Parts in this diagram 19
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081566352E | 081566352E | BOLT - HEX | |||
| 081568202F | 081568202F | BOLT - HEX, PP W / W | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46206M0200 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462104Z000 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462104Z005 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462104Z010 | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 462114Z010 | 46210+A | HOSE ASSY - BRAKE, REAR | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462405M000 | 46240 | TUBE ASSY - BRAKE, FRONT RH |
