Engine Control Module
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 226-H01-01 | Engine Control Module | 1986 - ... |
ENGINE: CA16D
|
No illustration for this section
The full parts list is available below

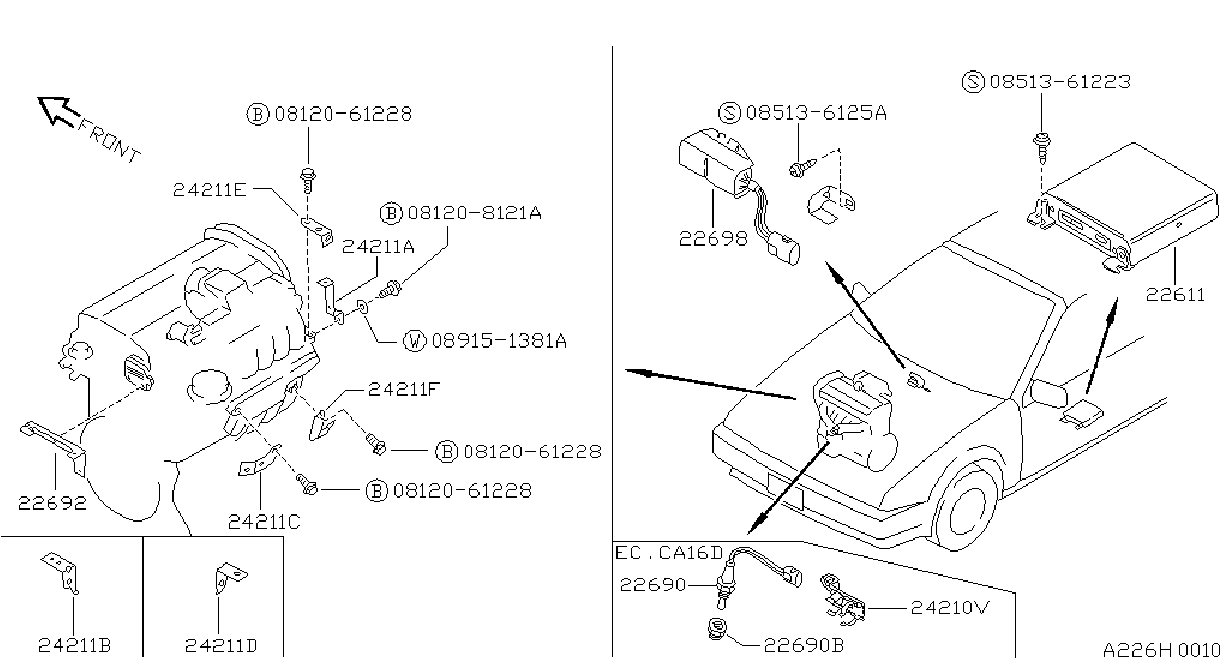

Parts in this diagram 14
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0812061228 | 0812061228 | BOLT - HEX | |||
| 081208121A | 081208121A | BOLT - HEX | |||
| 0851361223 | 0851361223 | SCREW - TAPPING | |||
| 085136125A | 085136125A | SCREW - TAPPING | |||
| 089151381A | 089151381A | WASHER - SPRING | |||
| 22698R2000 | 22698 | DROPPING RESISTOR | |||
| 2371064M00 | 22611 | ENGINE CONTROL MODULE | |||
| 2413685M00 | 22692 | BRACKET - EGI RELAY | |||
| 2422555M00 | 24211A | CLIP - EGI HARNESS, A | |||
| 2422555M01 | 24211B | CLIP - EGI HARNESS, A |
