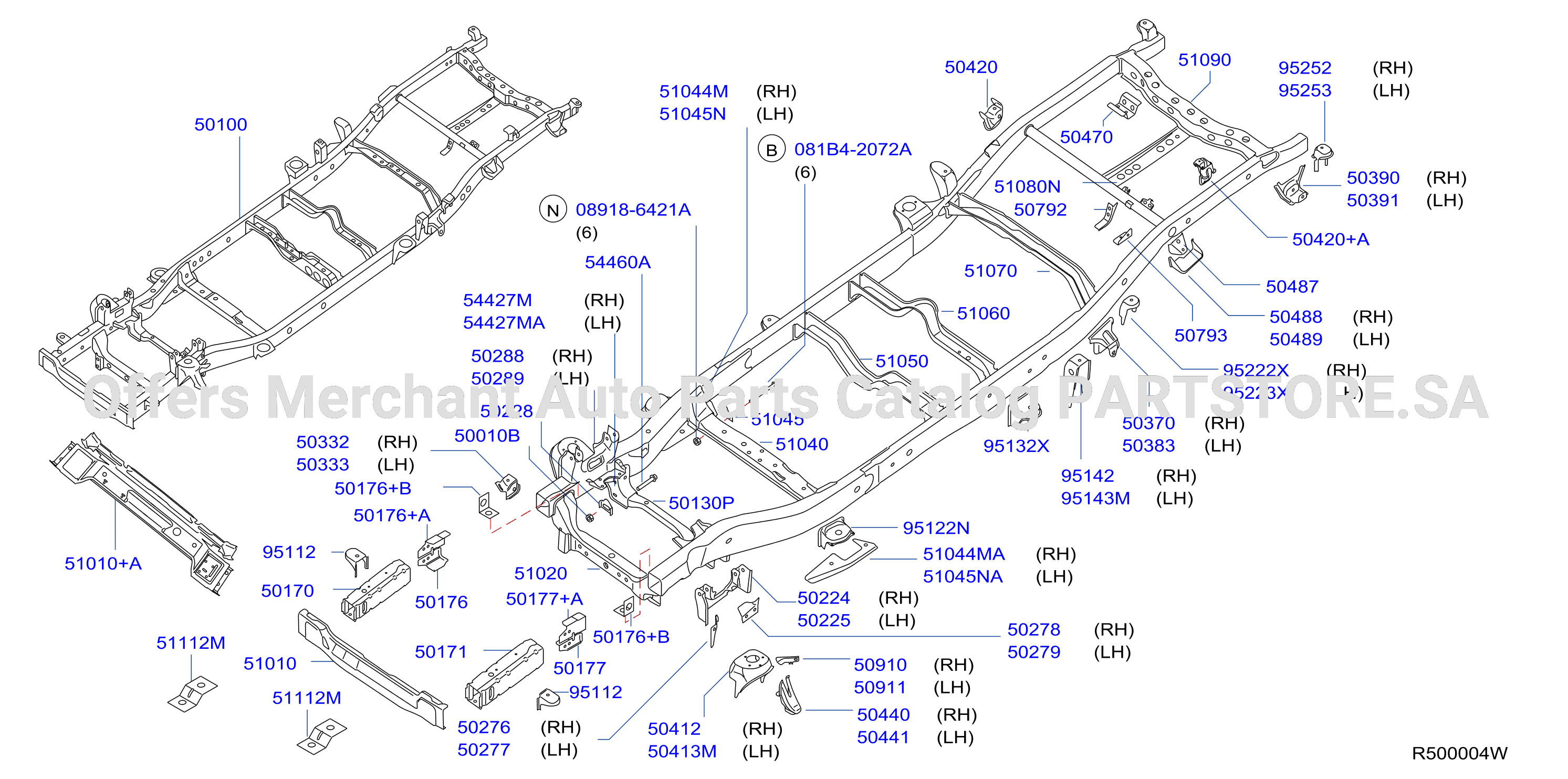

Frame Frame Assy
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 500B-001-01 | Frame Frame Assy | 2010 - 2011 |
BODY: CC
|
Parts in this diagram 68
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081B42072A | 081B42072A | BOLT - FLANGE, HEX | |||
| 089186421A | 089186421A | NUT - SLOCK | |||
| 501307S000 | 50130P | MEMBER ASSY - CROSS, 3RD | |||
| 50130ZT00A | 50130P | MEMBER ASSY - CROSS, 3RD | |||
| 501707S230 | 50170 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 501717S230 | 50171 | BRACKET - UPPER LINK MOUNTING, FRONT RH | |||
| 501767S030 | 50176 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 50176ZQ0MA | 50176+B | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 501777S030 | 50177 | EXTENSION ASSY - FRONT SIDE MEMBER | |||
| 501787S030 | 50176+A | EXTENSION ASSY - FRONT SIDE MEMBER |
of
7
