Engine Control Vacuum Piping Evap Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223A-001-01 | Engine Control Vacuum Piping Evap Piping | 2010 - 2011 |
ENGINE: VK56DE
|
No illustration for this section
The full parts list is available below

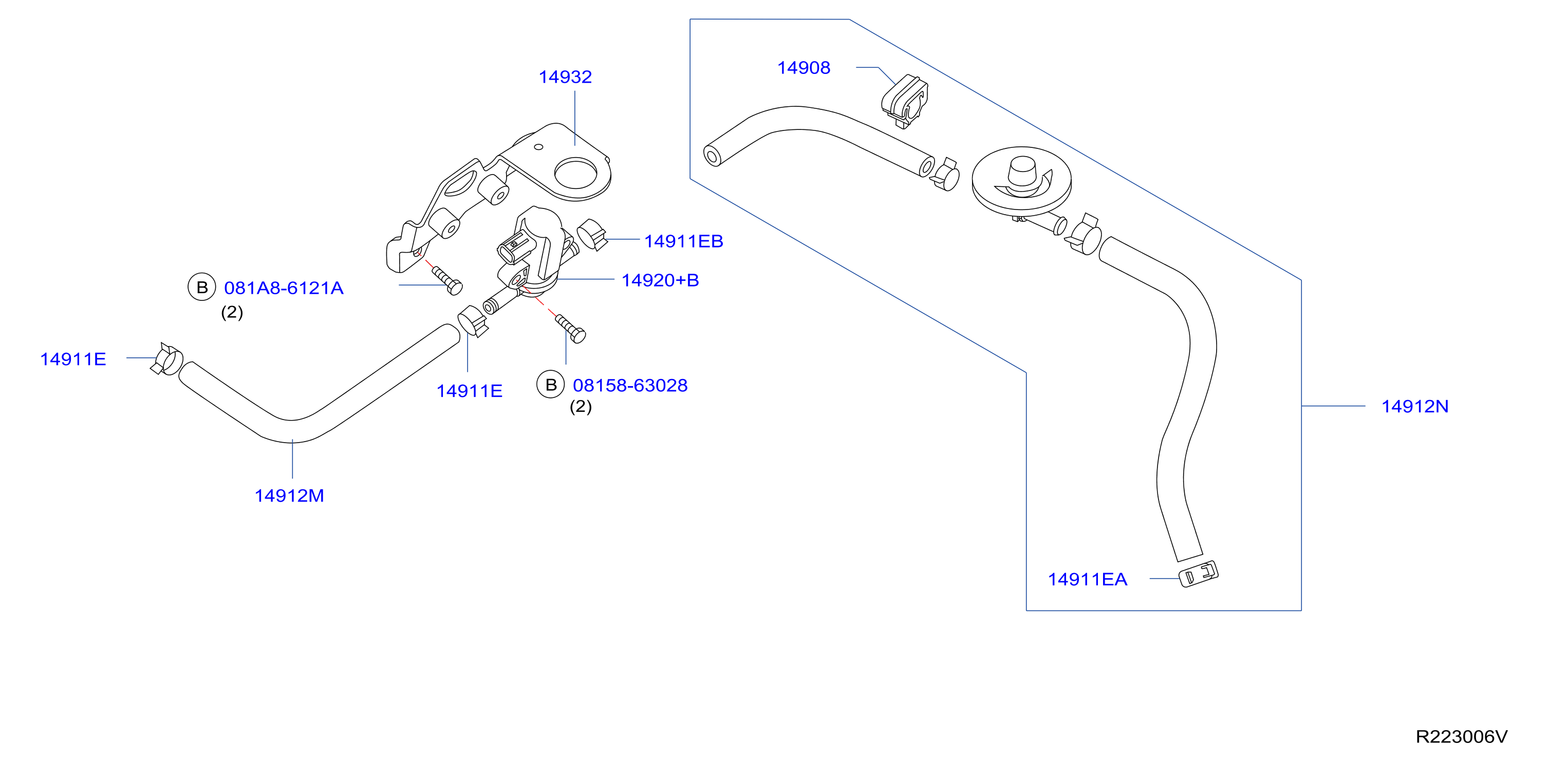

Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800411 | 14911E | CLAMP - HOSE | |||
| 0815863028 | 0815863028 | BOLT | |||
| 081A86121A | 081A86121A | BOLT | |||
| 14912ZE01A | 14912N | TUBE - ANTI EVAPORATION CONTROL | |||
| 14912ZE02A | 14912M | HOSE - FUEL EVAPORATION CONTROL | |||
| 149307S000 | 14920+B | VALVE ASSY - CONTROL | |||
| 14957ZE00A | 14932 | BRACKET - PURGE CONTROL VALVE | |||
| 1643942L0A | 14911EA | CLAMP - HOSE | |||
| 242204P220 | 14908 | CLIP - HOSE |
