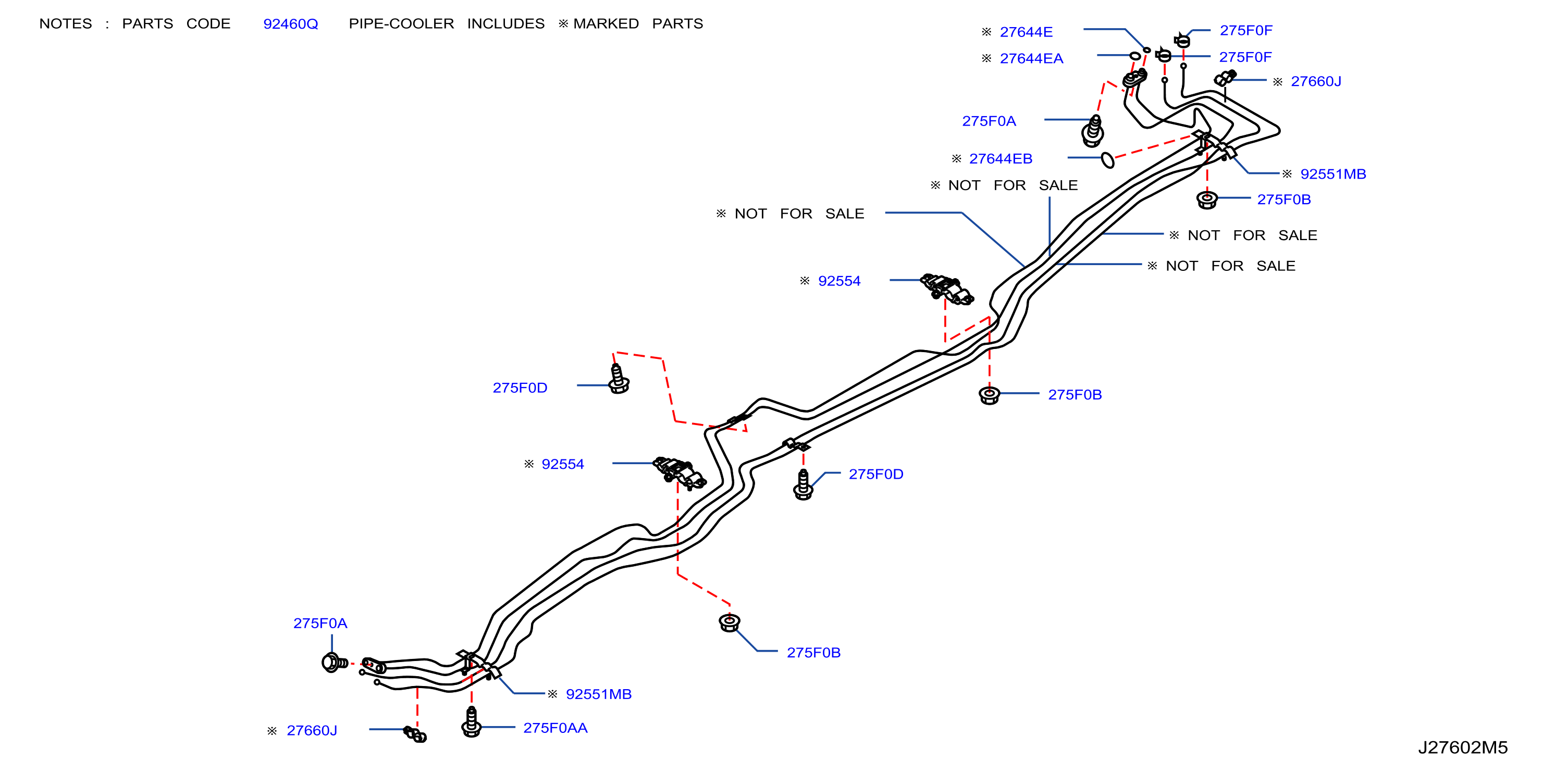

Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N6021 | 275F0AA | BOLT | |||
| 01125N6031 | 275F0A | BOLT | |||
| 01225N6011 | 275F0B | NUT | |||
| 0145600031 | 275F0D | SCREW | |||
| 0155800511 | 275F0F | CLAMP | |||
| 924601LA1B | 92460Q | PIPE - COOLER | |||
| 924601ZR5A | 92460Q | PIPE - COOLER | |||
| 924605ZN0A | 92460Q | PIPE - COOLER | |||
| 924605ZP1A | 92460Q | PIPE - COOLER | |||
| 924605ZP1B | 92460Q | PIPE - COOLER | |||
| 924605ZP1C | 92460Q | PIPE - COOLER | |||
| 924606JR1B | 92460Q | PIPE - COOLER | |||
| 924606JR1C | 92460Q | PIPE - COOLER | |||
| 92471N8210 | 27644E | SEAL - O RING | |||
| 92472N8210 | 27644EB | SEAL - O RING | |||
| 92473N8210 | 27644EA | SEAL - O RING | |||
| 92473N823A | 27644EA | SEAL - O RING | |||
| 924776AV1A | 27644E | SEAL - O RING | |||
| 924776AV2A | 27644EB | SEAL - O RING | |||
| 925511LA1A | 92551MB | BRACKET | |||
| 925511LA1B | 92551MB | BRACKET | |||
| 925531LA1A | 92554 | BRACKET - PIPE | |||
| 925561LA1A | 27660J | BRACKET |
