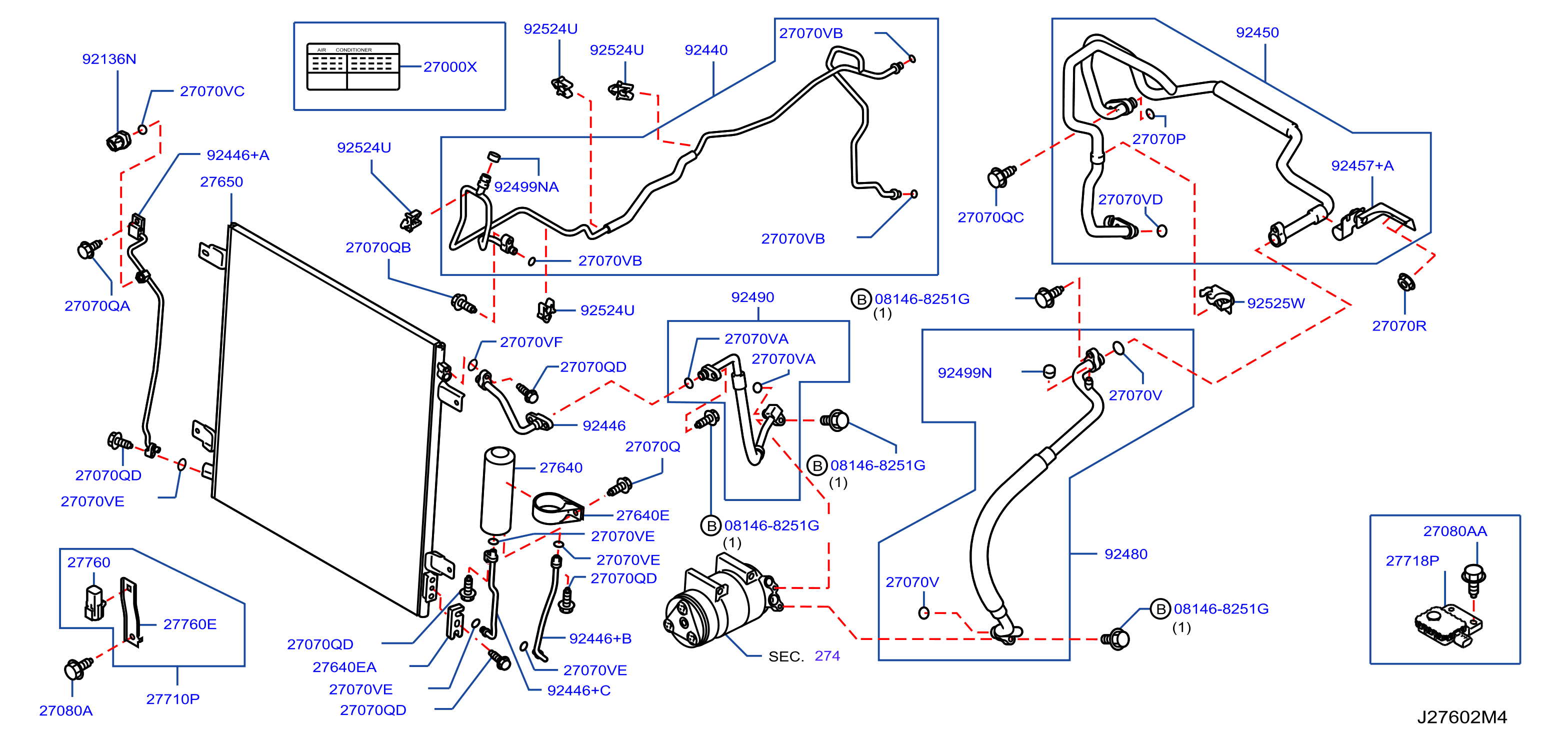

Condenser Liquid Tank Piping Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 276A-014-01 | Condenser Liquid Tank Piping Front Piping | 2020 - 2023 |
BODY: 3ROW
DESTINATION: MEX
|
No illustration for this section
The full parts list is available below
Parts in this diagram 41
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01121N6051 | 27070Q | BOLT | |||
| 01125N6011 | 27080A | BOLT | |||
| 01125N6031 | 27070QA | BOLT | |||
| 01225N6011 | 27070R | NUT | |||
| 081468251G | 081468251G | BOLT - HEX | |||
| 270901LK1A | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 27090E911C | 27000X | LABEL - CAUTION, AIR CONDITIONER | |||
| 277101LA0A | 27710P | SENSOR ASSY - AMBIENT | |||
| 277101LA0B | 27710P | SENSOR ASSY - AMBIENT | |||
| 277151LA0A | 27760E | BRACKET - AMBIENT SENSOR |
of
5
