| Code | Name | Period | Specifications |
|---|---|---|---|

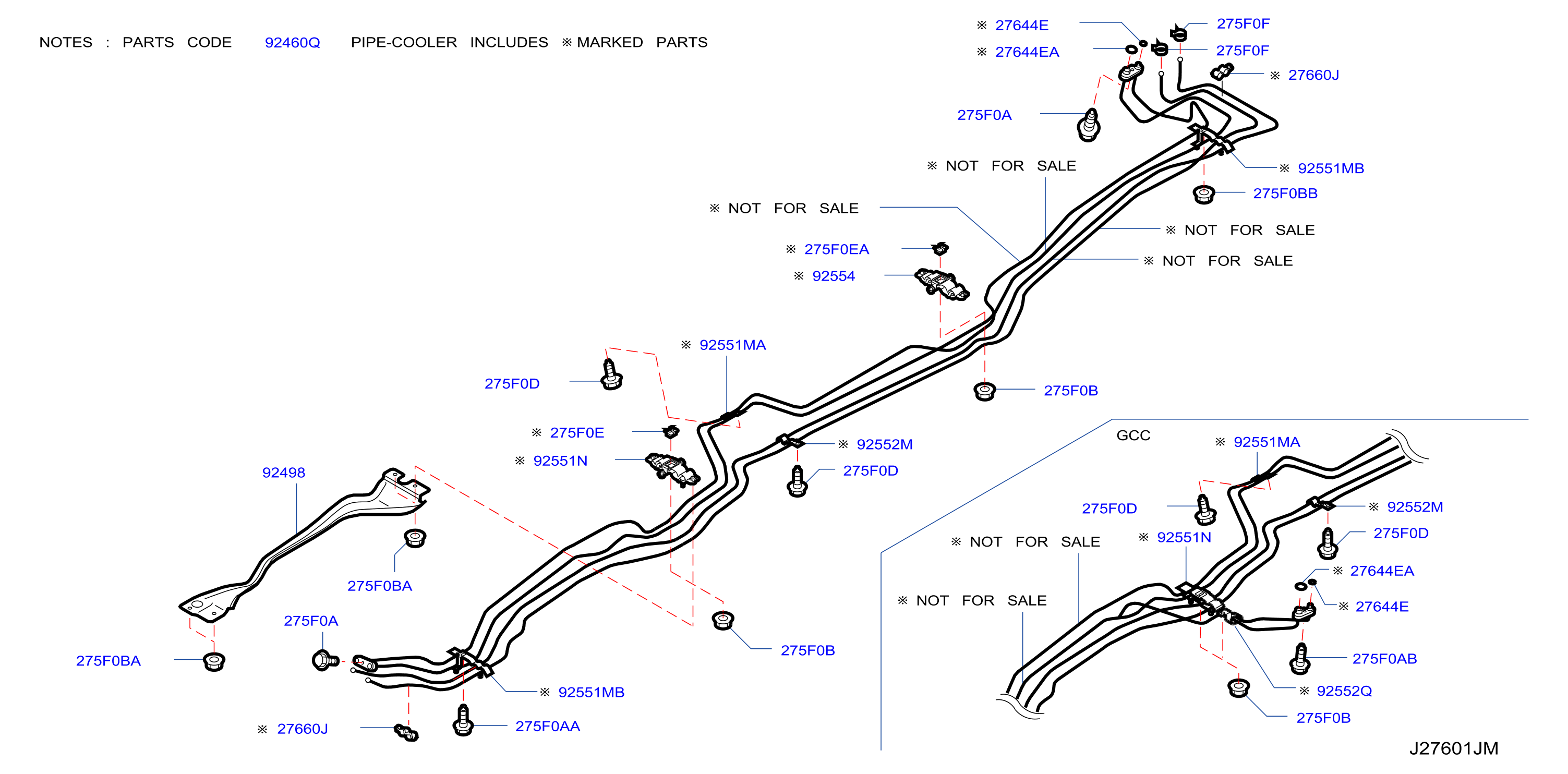

| 276A-004-01 | Condenser Liquid Tank Piping Rear Piping | 2011 - 2012 |
BODY: 3ROW
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N6021 | 275F0AA | BOLT | ||
| 01125N6031 | 275F0A | BOLT | ||
| 01225N6011 | 275F0B | NUT | ||
| 0145600031 | 275F0D | SCREW | ||
| 0155800511 | 275F0F | CLAMP | ||
| 924211LA0A | 275F0E | CLIP | ||
| 924981LA0A | 92498 | COVER - REAR COOLER PIPE | ||
| 925511LA1A | 92551MB | BRACKET | ||
| 925511LA1B | 92551MB | BRACKET | ||
| 925521LA1A | 92551N | BRACKET | ||
| 925531LA1A | 92554 | BRACKET - PIPE | ||
| 925561LA1A | 27660J | BRACKET | ||
| 925571LA1A | 92551MA | BRACKET | ||
| 925591LA1A | 92552M | BRACKET - HOSE CLIP |
