| Code | Name | Period | Specifications |
|---|---|---|---|

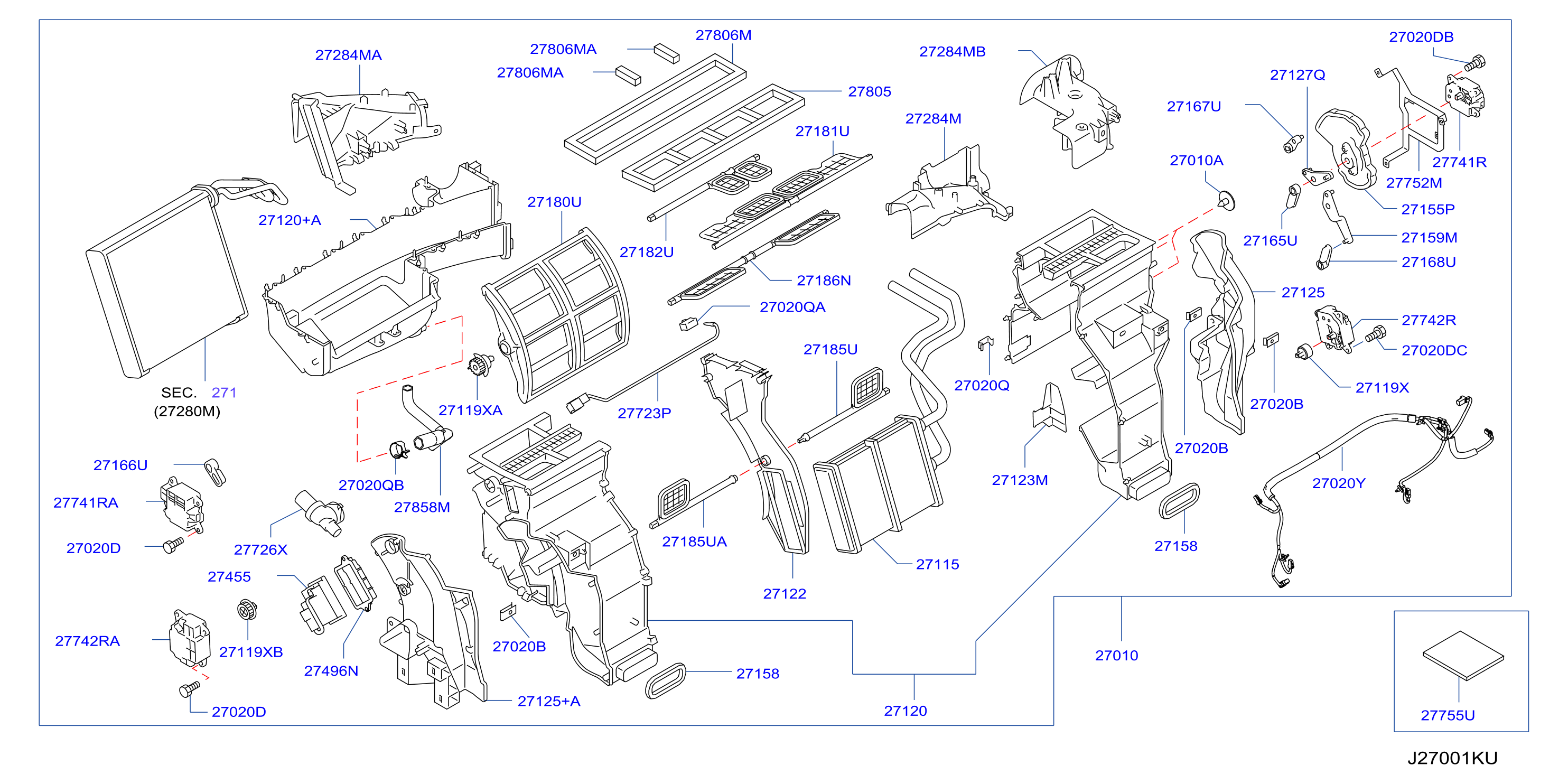

| 270A-004-01 | Heater Blower Unit Heater Fr | 2010 - 2011 |
BODY: 3ROW
DESTINATION: PRC
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0124100011 | 27020B | NUT | ||
| 21476B0100 | 27020Q | CLIP | ||
| 240401LA0A | 27020Y | HARNESS - SUB, BLOWER UNIT | ||
| 240401ZS0A | 27020Y | HARNESS - SUB, BLOWER UNIT | ||
| 240406JF0B | 27020Y | HARNESS - SUB, BLOWER UNIT | ||
| 24271N7100 | 27755U | PROTECTOR - HARNESS | ||
| 271101LB0A | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271101LB0B | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271101LB0C | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271101LB0D | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271101LB2D | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271101LB2E | 27010 | HEATING UNIT ASSY - FRONT | ||
| 271112Y00A | 27020D | SCREW | ||
| 271112Y00B | 27020DB | SCREW | ||
| 2711131215 | 27020D | SCREW | ||
| 271114M40A | 27020DC | SCREW | ||
| 271201LA1A | 27120 | CASE ASSY - FRONT HEATER UNIT | ||
| 271201LB0A | 27120 | CASE ASSY - FRONT HEATER UNIT | ||
| 271221LA0A | 27122 | CASE - FRONT HEATER | ||
| 271221LA1A | 27122 | CASE - FRONT HEATER | ||
| 271231LA0A | 27123M | CASE - FRONT HEATER | ||
| 271251LA0A | 27125 | DUCT - FOOT | ||
| 271261LA0A | 27125+A | DUCT - FOOT | ||
| 271371HA0A | 27020QA | CLIP | ||
| 271401LA0A | 27115 | CORE ASSY - FRONT HEATER | ||
| 271411LA0A | 27741R | ACTUATOR ASSY - MODE | ||
| 271411LA0B | 27741RA | ACTUATOR ASSY - MODE | ||
| 271531LA0A | 27127Q | LINK - AIR DOOR, NO 4 | ||
| 27153AL50A | 27020QB | CLIP | ||
| 271551LA0A | 27155P | LINK - MAIN | ||
| 271591LA0A | 27159M | LINK - FOOT | ||
| 271631LA0A | 27119X | LEVER - HEATER UNIT | ||
| 271631LA1A | 27119XA | LEVER - HEATER UNIT | ||
| 271631LA2A | 27119XB | LEVER - HEATER UNIT | ||
| 271651LA0A | 27165U | LEVER - VENTILATOR | ||
| 271661LA0A | 27166U | LEVER - VENTILATION, NO2 | ||
| 271671LA0A | 27167U | LEVER - DEFROSTER | ||
| 271681LA0A | 27168U | LEVER - FOOT | ||
| 27180JA10A | 27180U | DOOR - FRONT HEATER | ||
| 271811LA0A | 27181U | DOOR ASSY - VENTILATION | ||
| 271811LA0B | 27181U | DOOR ASSY - VENTILATION | ||
| 271821LA0A | 27182U | DOOR ASSY - VENTILATION | ||
| 271851LA0A | 27185U | DOOR ASSY - FOOT | ||
| 271851LA1A | 27185UA | DOOR ASSY - FOOT | ||
| 271861LA0A | 27186N | DOOR ASSY - MODE | ||
| 271992J00A | 27010A | SCREW | ||
| 272841LA0A | 27284M | CASE ASSY - FRONT COOLING UNIT | ||
| 272841LA1A | 27284MA | CASE ASSY - FRONT COOLING UNIT | ||
| 272841LA2A | 27284MB | CASE ASSY - FRONT COOLING UNIT | ||
| 274501BU0A | 27455 | AIR PURIFIER ASSY | ||
| 274501BU0B | 27455 | AIR PURIFIER ASSY | ||
| 274551LA0A | 27455 | AIR PURIFIER ASSY | ||
| 27496JK30A | 27496N | BRACKET - AIR PURIFIRE | ||
| 277231KA0A | 27723P | SENSOR ASSY - INTAKE | ||
| 277233SB0A | 27723P | SENSOR ASSY - INTAKE | ||
| 27726AL500 | 27726X | ASPIRATOR | ||
| 277421LA0A | 27742R | ACTUATOR ASSY - AIR MIX | ||
| 277421LA0B | 27742RA | ACTUATOR ASSY - AIR MIX | ||
| 277501LA0A | 27752M | BRACKET - ACTUATOR | ||
| 278051LA0A | 27805 | SEAL - BLOWER UNIT | ||
| 278061LA0A | 27806M | SEAL - FRONT HEATER UNIT | ||
| 278061LA1A | 27806MA | SEAL - FRONT HEATER UNIT | ||
| 278061LA1B | 27806MA | SEAL - FRONT HEATER UNIT | ||
| 278081LA0A | 27158 | PACKING | ||
| 278581LA0A | 27858M | CONNECTOR - DRAIN HOSE |
