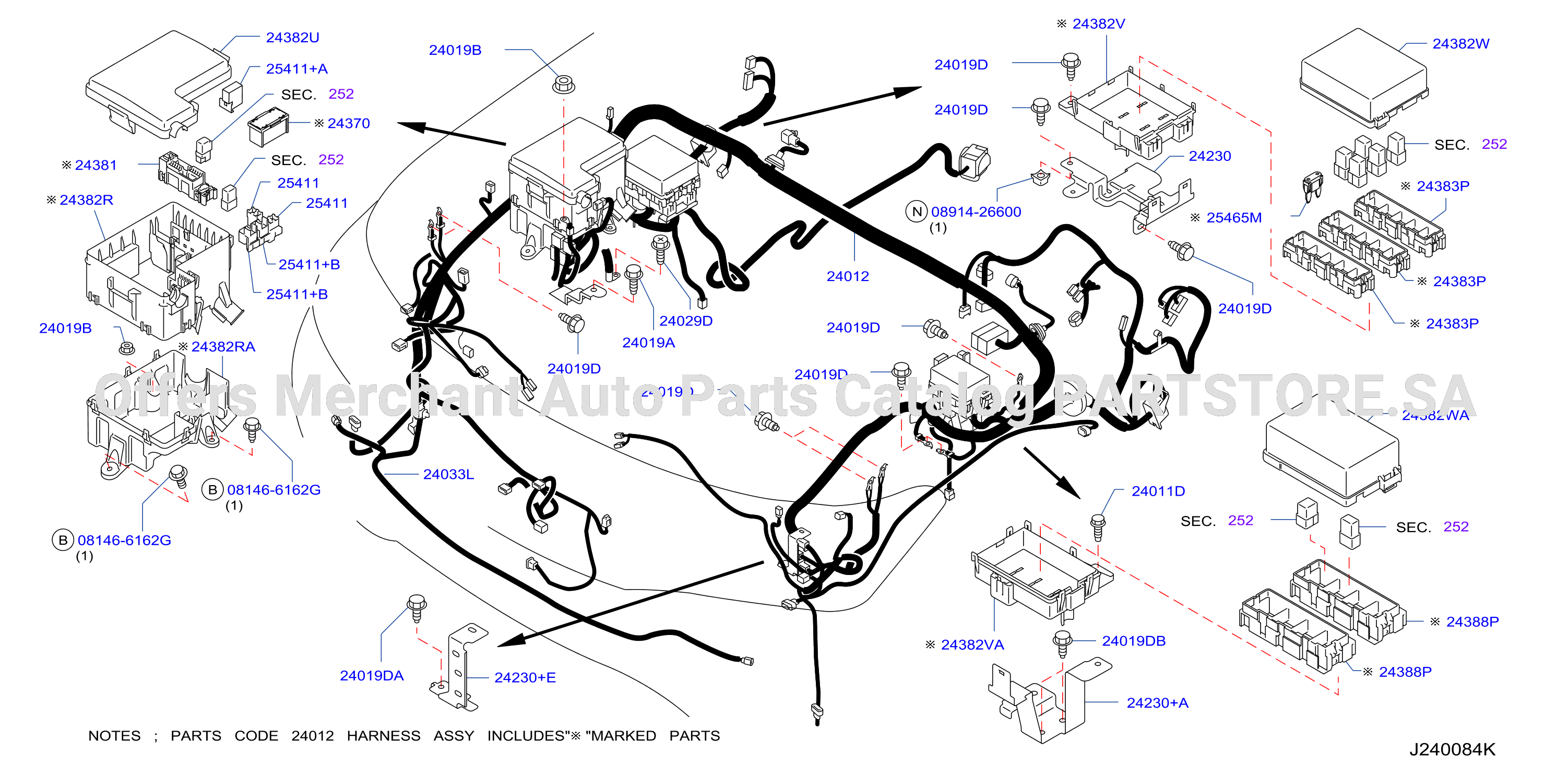

Wiring Engine Room
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 240A-032-01 | Wiring Engine Room | 2010 - 2011 |
BODY: 3ROW
|
No illustration for this section
The full parts list is available below
Parts in this diagram 46
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125N8011 | 24019A | BOLT | |||
| 01225N6031 | 24019B | NUT | |||
| 0145600411 | 24019D | SCREW | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 0891426600 | 0891426600 | NUT - WELD, SQUARE | |||
| 240331LA0A | 24033L | HARNESS - CORNER SENSOR, FRONT | |||
| 240333ZD0A | 24033L | HARNESS - CORNER SENSOR, FRONT | |||
| 240335ZA0A | 24033L | HARNESS - CORNER SENSOR, FRONT | |||
| 240336GW0A | 24033L | HARNESS - CORNER SENSOR, FRONT | |||
| 240336JE0A | 24033L | HARNESS - CORNER SENSOR, FRONT |
