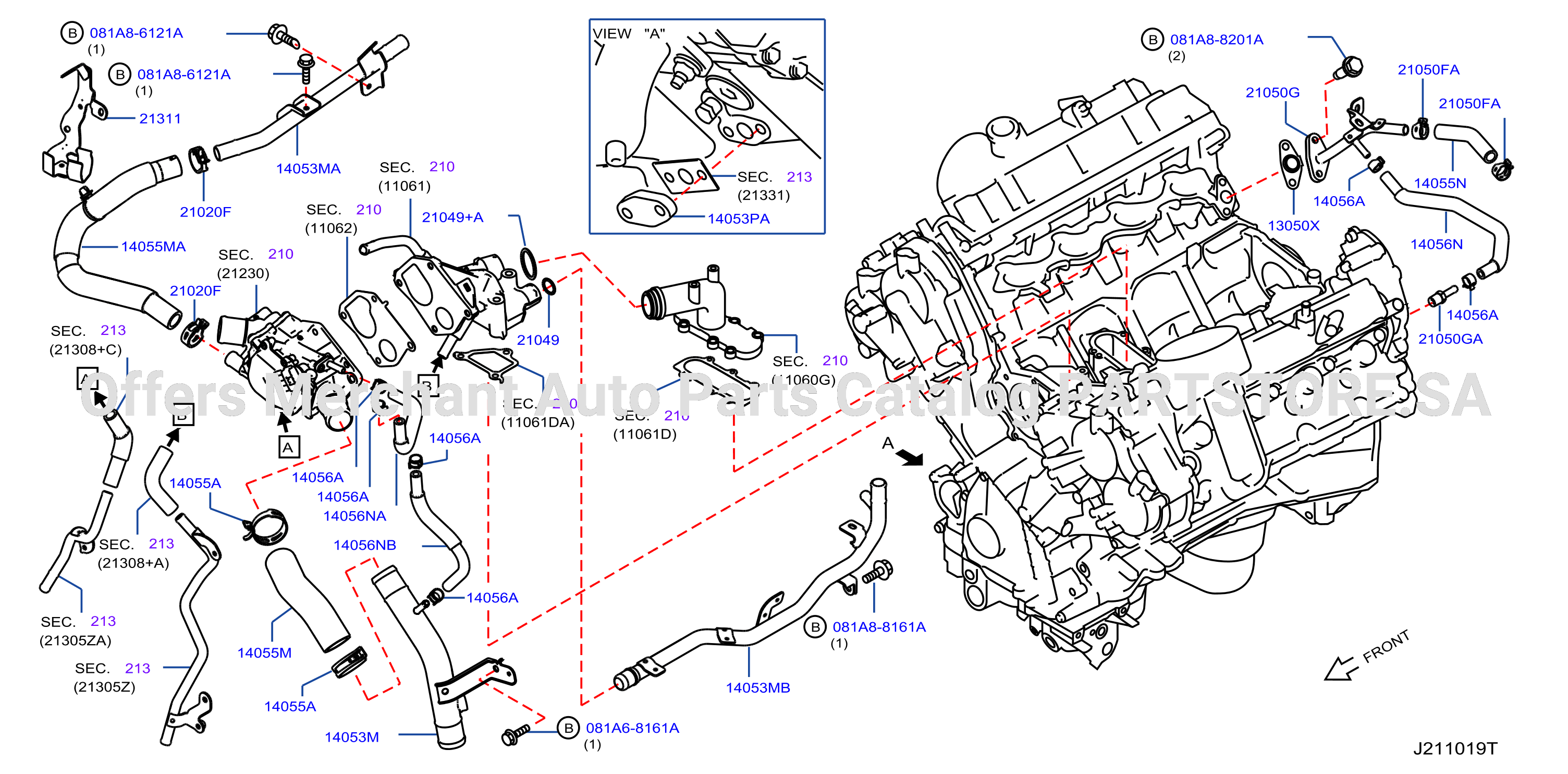

Water Hose Piping Mex
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 211A-002-01 | Water Hose Piping Mex | 2015 - 2016 |
DESTINATION: MEX
ENGINE: VK56VD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 39
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800551 | 14055A | CLAMP - HOSE | |||
| 0155800731 | 14055A | CLAMP - HOSE | |||
| 081A68161A | 081A68161A | BOLT - FLANGE | |||
| 081A86121A | 081A86121A | BOLT | |||
| 081A88161A | 081A88161A | BOLT | |||
| 081A88201A | 081A88201A | BOLT | |||
| 130487S00A | 14053M | PIPE - WATER | |||
| 13048EZ30A | 14053M | PIPE - WATER | |||
| 130507S010 | 13050X | GASKET - WATER INLET | |||
| 14053JK50C | 14053PA | PIPE - WATER |
of
4
