| Code | Name | Period | Specifications |
|---|---|---|---|

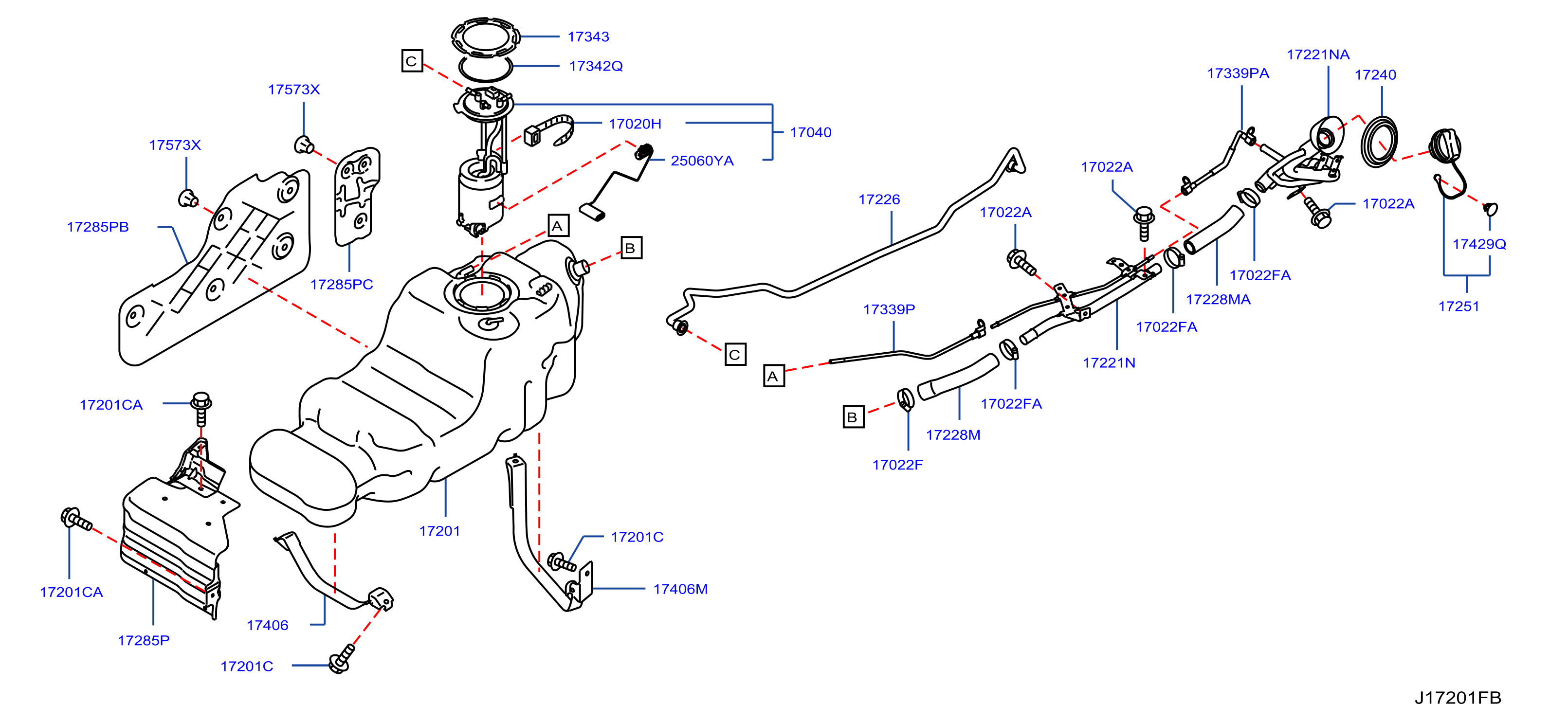

| 172B-001-01 | Fuel Tank | 2011 - 2013 |
DESTINATION: KOREA
ENGINE: VK56VD
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01121N0041 | 17201C | BOLT | ||
| 01125N8021 | 17022A | BOLT | ||
| 01125N8171 | 17022A | BOLT | ||
| 164397S000 | 17022FA | CLAMP | ||
| 164397S005 | 17022F | CLAMP | ||
| 170401LA0A | 17040 | FUEL PUMP - IN TANK | ||
| 170401LA0B | 17040 | FUEL PUMP - IN TANK | ||
| 170401LA0D | 17040 | FUEL PUMP - IN TANK | ||
| 170403ZD0A | 17040 | FUEL PUMP - IN TANK | ||
| 170403ZD0B | 17040 | FUEL PUMP - IN TANK | ||
| 172021LA0A | 17201 | TANK ASSY - FUEL | ||
| 172211LA0A | 17221N | TUBE ASSY - FILLER | ||
| 172211LA1A | 17221NA | TUBE ASSY - FILLER | ||
| 172211LA2A | 17221NA | TUBE ASSY - FILLER | ||
| 172211LA2B | 17221NA | TUBE ASSY - FILLER | ||
| 172261LA0A | 17226 | HOSE - VENTILATION | ||
| 172281LA0A | 17228M | HOSE - FILLER | ||
| 172281LA1A | 17228MA | HOSE - FILLER | ||
| 172403VA0A | 17240 | GROMMET - FILLER BASE | ||
| 17240AN000 | 17240 | GROMMET - FILLER BASE | ||
| 172511LA0A | 17251 | CAP ASSY - FILLER | ||
| 172511LA1A | 17251 | CAP ASSY - FILLER | ||
| 172511LA1B | 17251 | CAP ASSY - FILLER | ||
| 172511LA1C | 17251 | CAP ASSY - FILLER | ||
| 172511LA1D | 17251 | CAP ASSY - FILLER | ||
| 172511LA1F | 17251 | CAP ASSY - FILLER | ||
| 172511LA1G | 17251 | CAP ASSY - FILLER | ||
| 172851LA0A | 17285P | PROTECTOR - FUEL TANK | ||
| 172851LA4A | 17285PB | PROTECTOR - FUEL TANK | ||
| 172851LA5A | 17285PC | PROTECTOR - FUEL TANK | ||
| 172851ZR0A | 17285P | PROTECTOR - FUEL TANK | ||
| 172851ZR1A | 17285PB | PROTECTOR - FUEL TANK | ||
| 173391LA0A | 17339P | TUBE - EVAPORATION | ||
| 173391LA1A | 17339PA | TUBE - EVAPORATION | ||
| 17342EA000 | 17342Q | PACKING - FUEL GAUGE | ||
| 17343EA000 | 17343 | PLATE - LOCK, FUEL GAUGE | ||
| 174061LA0A | 17406 | BAND ASSY - FUEL TANK MOUNTING | ||
| 174071LA0A | 17406M | BAND ASSY - FUEL TANK, MOUNTING | ||
| 17571ZH00A | 17429Q | CLIP - FUEL CAP TETHER | ||
| 175721LA0A | 17020H | CLIP | ||
| 175733ZD0A | 17573X | CLIP | ||
| 17573EA00A | 17573X | CLIP | ||
| 250601LA0C | 25060YA | FUEL LEVEL SENSOR | ||
| 250601LA0D | 25060YA | FUEL LEVEL SENSOR | ||
| 544590M10E | 17201CA | BOLT |
