| Code | Name | Period | Specifications |
|---|---|---|---|

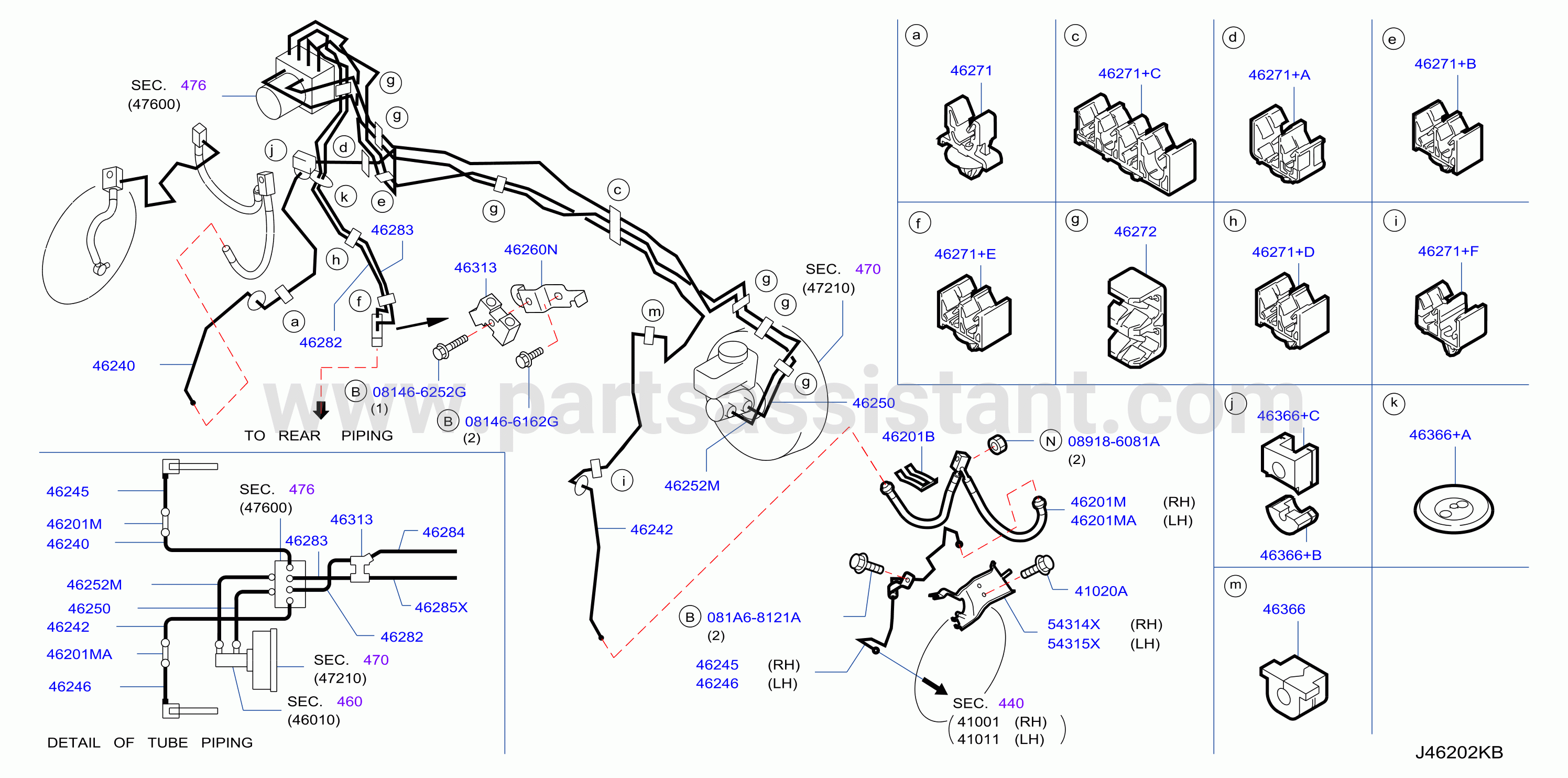

| 462OO-001-02 | Brake Piping Control Front Piping V9X Hicas | 2014 - 2015 |
BODY: SEDAN
GRADE: SPORTPRE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112104761 | 41020A | BOLT | ||
| 081466162G | 081466162G | BOLT - HEX | ||
| 081466252G | 081466252G | BOLT - HEX | ||
| 081A68121A | 081A68121A | BOLT - FLANGE | ||
| 089186081A | 089186081A | NUT - SLOCK | ||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | ||
| 462101MA4A | 46201M | HOSE ASSY - BRAKE, FRONT | ||
| 462111MA4A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 462401MS0A | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 462421MS0A | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 46245JK64A | 46245 | TUBE ASSY - FRONT BRAKE, RH | ||
| 46246JK64A | 46246 | TUBE ASSY - FRONT BRAKE, LH | ||
| 462501MS0A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 462521MS0A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | ||
| 46260JK600 | 46260N | BRACKET - BRAKE TUBE | ||
| 462711BP0B | 46271+B | CLIP - TUBE, BRAKE | ||
| 462711BP0C | 46271+C | CLIP - TUBE, BRAKE | ||
| 46271JG00A | 46271 | CLIP - TUBE, BRAKE | ||
| 46271JJ91A | 46271+D | CLIP - TUBE, BRAKE | ||
| 46271JK10A | 46271+A | CLIP - TUBE, BRAKE | ||
| 46271JK71A | 46271+E | CLIP - TUBE, BRAKE | ||
| 46271JK72A | 46271+F | CLIP - TUBE, BRAKE | ||
| 46272JK70A | 46272 | CLIP - TUBE, BRAKE | ||
| 462821ME0A | 46282 | TUBE ASSY - BRAKE, REAR | ||
| 462831ME0A | 46283 | TUBE ASSY - BRAKE, REAR | ||
| 462841MS0A | 46284 | TUBE ASSY - BRAKE, REAR | ||
| 462851MS0A | 46285X | TUBE ASSY - BRAKE, REAR | ||
| 46313JG00A | 46313 | CONNECTOR - BRAKE TUBE | ||
| 463661ME0A | 46366+A | GROMMET | ||
| 46366AM600 | 46366+B | GROMMET | ||
| 46366AM601 | 46366+C | GROMMET | ||
| 46366EG000 | 46366 | GROMMET | ||
| 54314JK64A | 54314X | BRACKET - BRAKE HOSE, RH | ||
| 54315JK64A | 54315X | BRACKET - BRAKE HOSE, LH |
