| Code | Name | Period | Specifications |
|---|---|---|---|

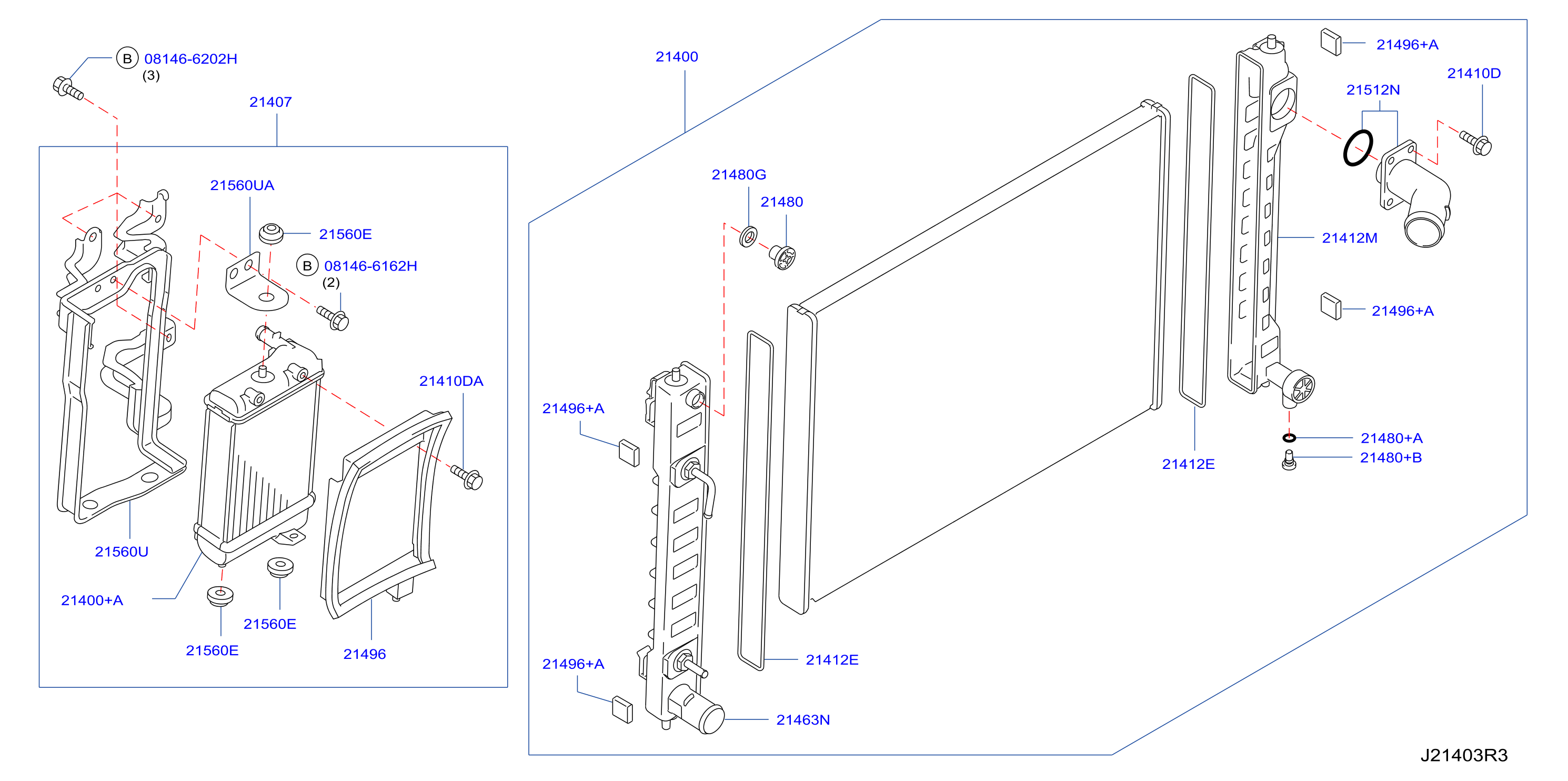

| 214D-004-01 | Radiator Shroud Inverter Cooling Radiator | 2012 - 2014 |
ENGINE: V9X
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0145600421 | 21410DA | SCREW | ||
| 081466162H | 081466162H | BOLT - HEX | ||
| 081466202H | 081466202H | BOLT - HEX | ||
| 214101BY0B | 21400+A | RADIATOR ASSY | ||
| 214121MS0A | 21412M | TANK - RADIATOR, RH | ||
| 214141MS0A | 21412E | SEAL - PACKING, RADIATOR | ||
| 2144050Y00 | 21480 | COCK - WATER DRAIN | ||
| 214415V000 | 21480+A | COCK - WATER DRAIN | ||
| 21441JK20A | 21480+B | COCK - WATER DRAIN | ||
| 214571MS0A | 21407 | RADIATOR ASSY - SUB | ||
| 214581BY1B | 21560UA | BRACKET - RADIATOR | ||
| 214581MS0A | 21560U | BRACKET - RADIATOR | ||
| 214601MS0A | 21400 | RADIATOR ASSY | ||
| 214631MS0A | 21463N | TANK - RADIATOR, LH W / OIL COOLER | ||
| 21479VX100 | 21410D | SCREW | ||
| 2148118000 | 21480G | PACKING - DRAIN COCK | ||
| 214961BA0A | 21496 | SEAL - RADIATOR | ||
| 214961MS0A | 21496 | SEAL - RADIATOR | ||
| 2150610V00 | 21560E | MOUNTING - RUBBER, RADIATOR UPPER | ||
| 215121BA0A | 21512N | PIPE ASSY - RADIATOR, INLET |
