| Code | Name | Period | Specifications |
|---|---|---|---|

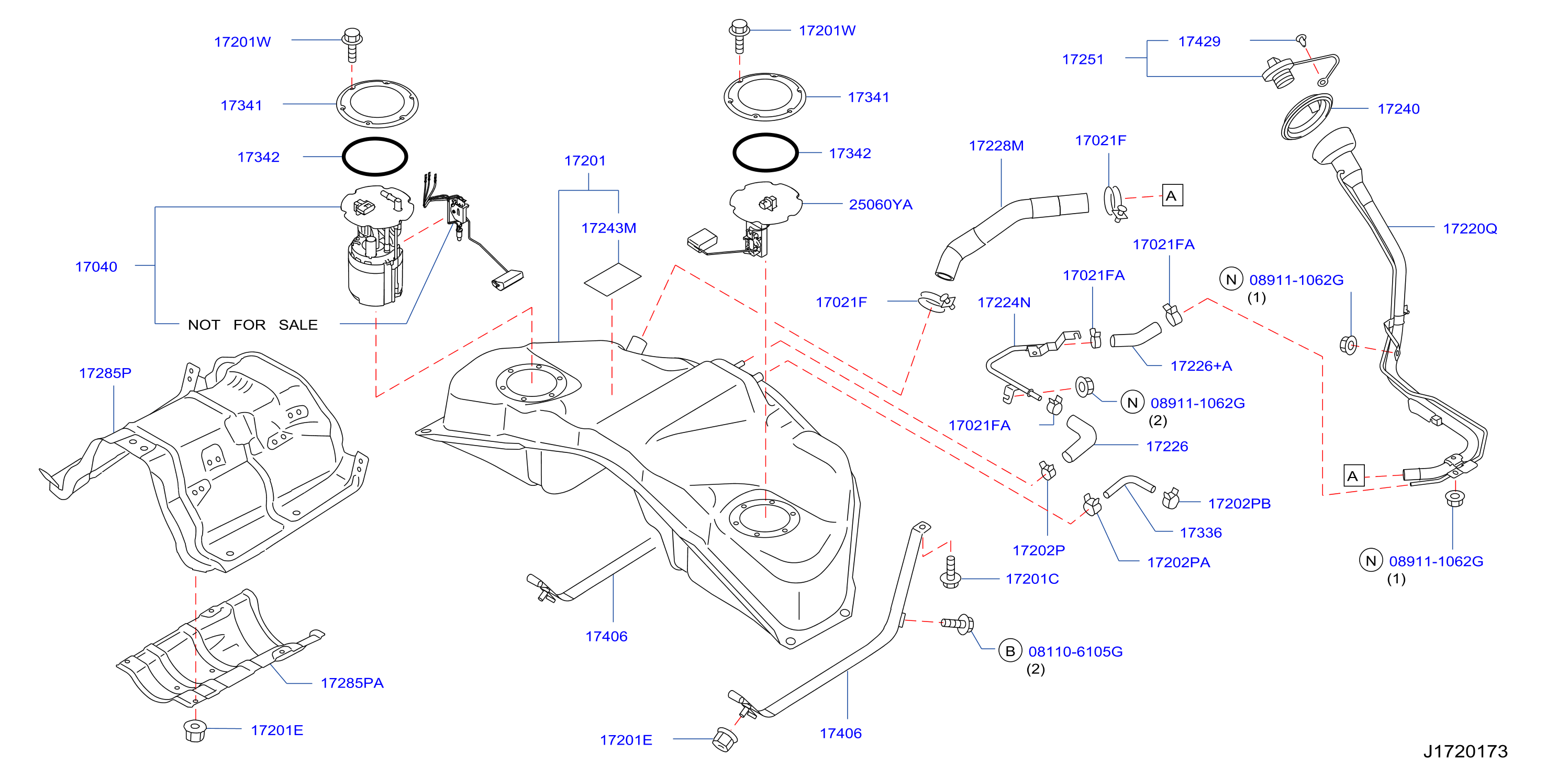

| 172A-004-01 | Fuel Tank Vq37Vhr Vq25Hr | 2010 - 2010 |
AREA: TAIWAN
ENGINE: VQ25HR
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112106671 | 17201C | BOLT | ||
| 0122100351 | 17201E | NUT | ||
| 0143601821 | 17201W | SCREW | ||
| 0155800401 | 17202PA | CLAMP | ||
| 081106105G | 081106105G | BOLT - HEX | ||
| 089111062G | 089111062G | NUT - HEX | ||
| 16439EB31B | 17021F | CLAMP | ||
| 16439V500C | 17021FA | CLAMP | ||
| 170401MA0A | 17040 | FUEL PUMP - IN TANK | ||
| 170401MA0B | 17040 | FUEL PUMP - IN TANK | ||
| 170406AU0A | 17040 | FUEL PUMP - IN TANK | ||
| 172021ME0A | 17201 | TANK ASSY - FUEL | ||
| 172211ME0A | 17220Q | TUBE ASSY - FILLER | ||
| 17224EG000 | 17224N | TUBE ASSY - VENTILATION | ||
| 17226EG005 | 17226 | HOSE - VENTILATION | ||
| 17226EG010 | 17226+A | HOSE - VENTILATION | ||
| 172283EV0A | 17228M | HOSE - FILLER | ||
| 17228EG000 | 17228M | HOSE - FILLER | ||
| 17240AN000 | 17240 | GROMMET - FILLER BASE | ||
| 172431MG0C | 17243M | SHIM - FUEL TANK | ||
| 172431PM0A | 17243M | SHIM - FUEL TANK | ||
| 172431PN0A | 17243M | SHIM - FUEL TANK | ||
| 1724351E04 | 17243M | SHIM - FUEL TANK | ||
| 1724371L00 | 17243M | SHIM - FUEL TANK | ||
| 17243AL500 | 17243M | SHIM - FUEL TANK | ||
| 17243EG000 | 17243M | SHIM - FUEL TANK | ||
| 172511AM0A | 17251 | CAP ASSY - FILLER | ||
| 172515XA0A | 17251 | CAP ASSY - FILLER | ||
| 172851MG0A | 17285P | PROTECTOR - FUEL TANK | ||
| 17285EJ70A | 17285P | PROTECTOR - FUEL TANK | ||
| 17285JK000 | 17285PA | PROTECTOR - FUEL TANK | ||
| 17336EG005 | 17336 | HOSE - EVAPORATION | ||
| 1734140U00 | 17341 | RETAINER - FUEL GAUGE | ||
| 1734201A00 | 17342 | SEAL - O RING, FUEL GAUGE | ||
| 17406AL500 | 17406 | BAND ASSY - FUEL TANK MOUNTING | ||
| 174291BB0A | 17429 | PIN - FUEL CAP, MOUNTING | ||
| 175714HA0A | 17429 | PIN - FUEL CAP, MOUNTING | ||
| 250601MA0A | 25060YA | FUEL LEVEL SENSOR | ||
| 250601MA0B | 25060YA | FUEL LEVEL SENSOR | ||
| 250604HK0A | 25060YA | FUEL LEVEL SENSOR |
