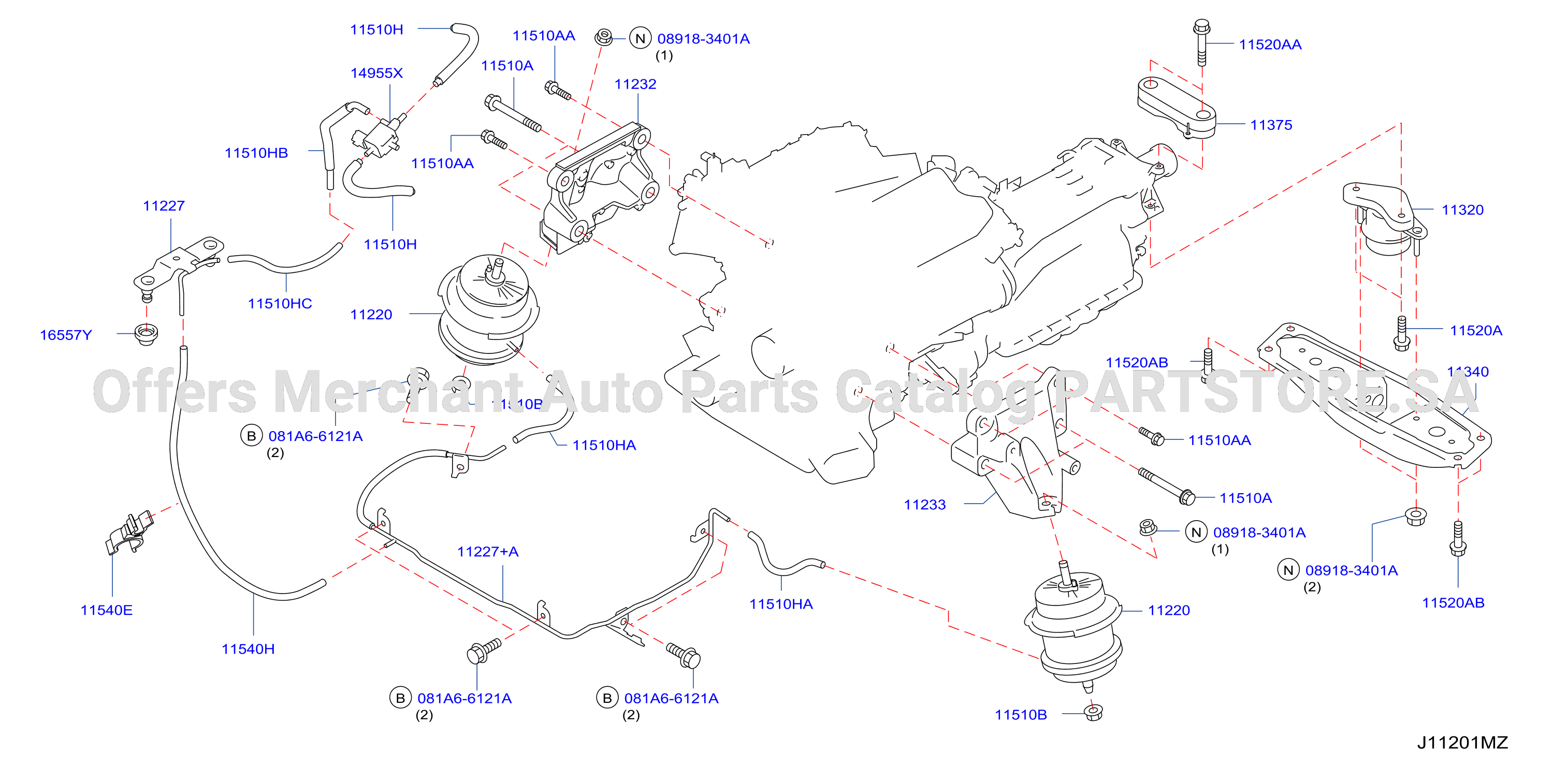

Engine Transmission Mounting
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 112F-001-01 | Engine Transmission Mounting | 2011 - 2012 |
ENGINE: V9X
|
No illustration for this section
The full parts list is available below
Parts in this diagram 26
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122500931 | 11510B | NUT | |||
| 081A66121A | 081A66121A | BOLT - FLANGE, HEX | |||
| 089183401A | 089183401A | NUT - FLANGE, HEX | |||
| 112201MS0A | 11220 | INSULATOR - ENGINE MOUNTING, FRONT | |||
| 112271BY5A | 11227 | TUBE - VACUUM | |||
| 112271MS0A | 11227+A | TUBE - VACUUM | |||
| 112321MS0A | 11232 | BRACKET - ENGINE MOUNTING, RH | |||
| 112331MS0A | 11233 | BRACKET - ENGINE MOUNTING, LH | |||
| 112982J211 | 11510A | BOLT | |||
| 112982W100 | 11520AA | BOLT |
of
3
