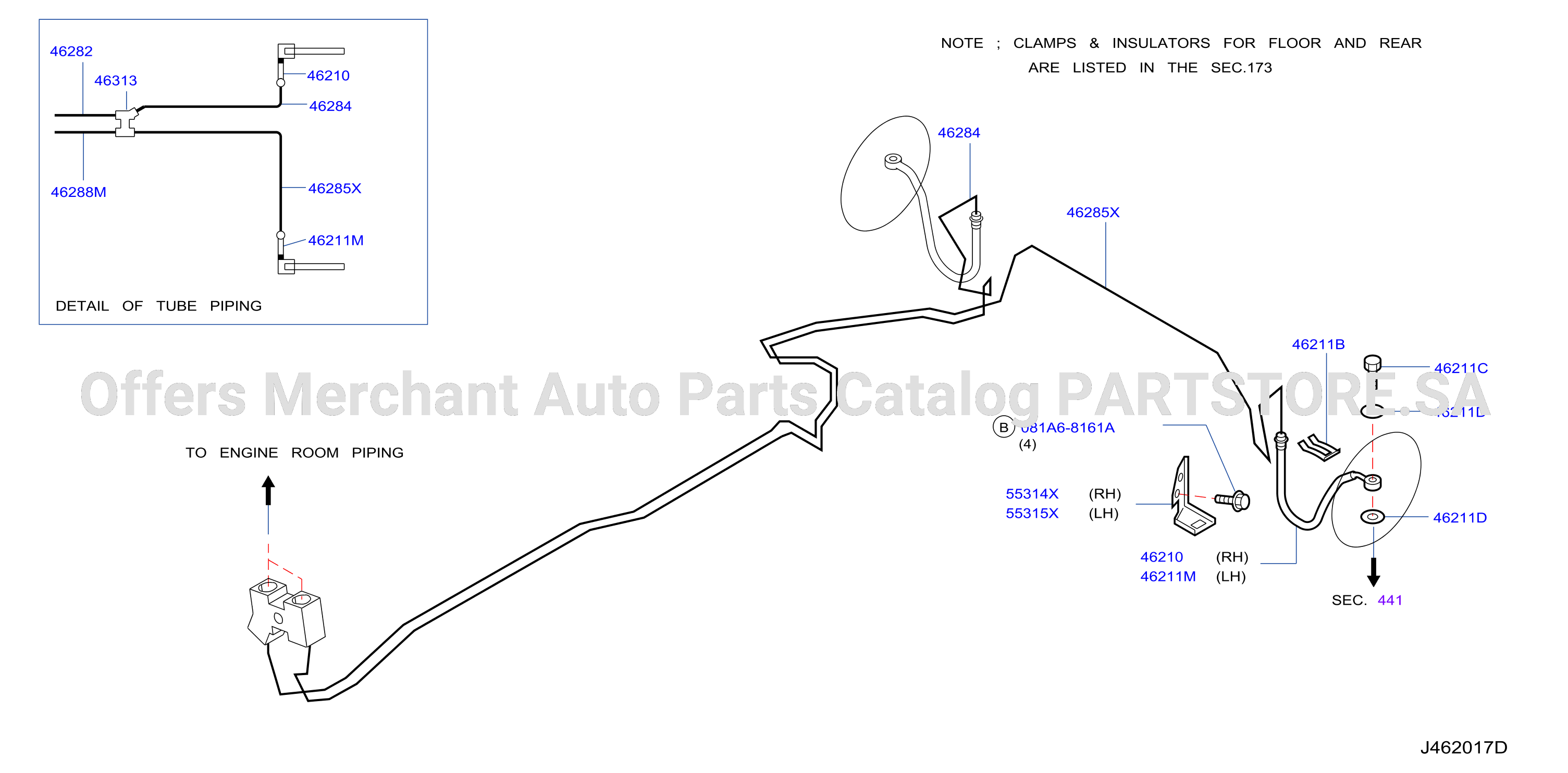

Brake Piping Control Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-006-04 | Brake Piping Control Rear Piping | 2008 - ... |
AREA: CHINA
BODY: S
GRADE: UPPER
|
No illustration for this section
The full parts list is available below
Parts in this diagram 22
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081A68161A | 081A68161A | BOLT - FLANGE | |||
| 462062J000 | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 46210EG020 | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 46210EG02A | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 46210EH50A | 46210 | HOSE ASSY - BRAKE, REAR | |||
| 46211EG020 | 46211M | HOSE ASSY - BRAKE, REAR | |||
| 46211EG02A | 46211M | HOSE ASSY - BRAKE, REAR | |||
| 46211EH50A | 46211M | HOSE ASSY - BRAKE, REAR | |||
| 46237A4600 | 46211D | GASKET - BRAKE HOSE |
of
3
