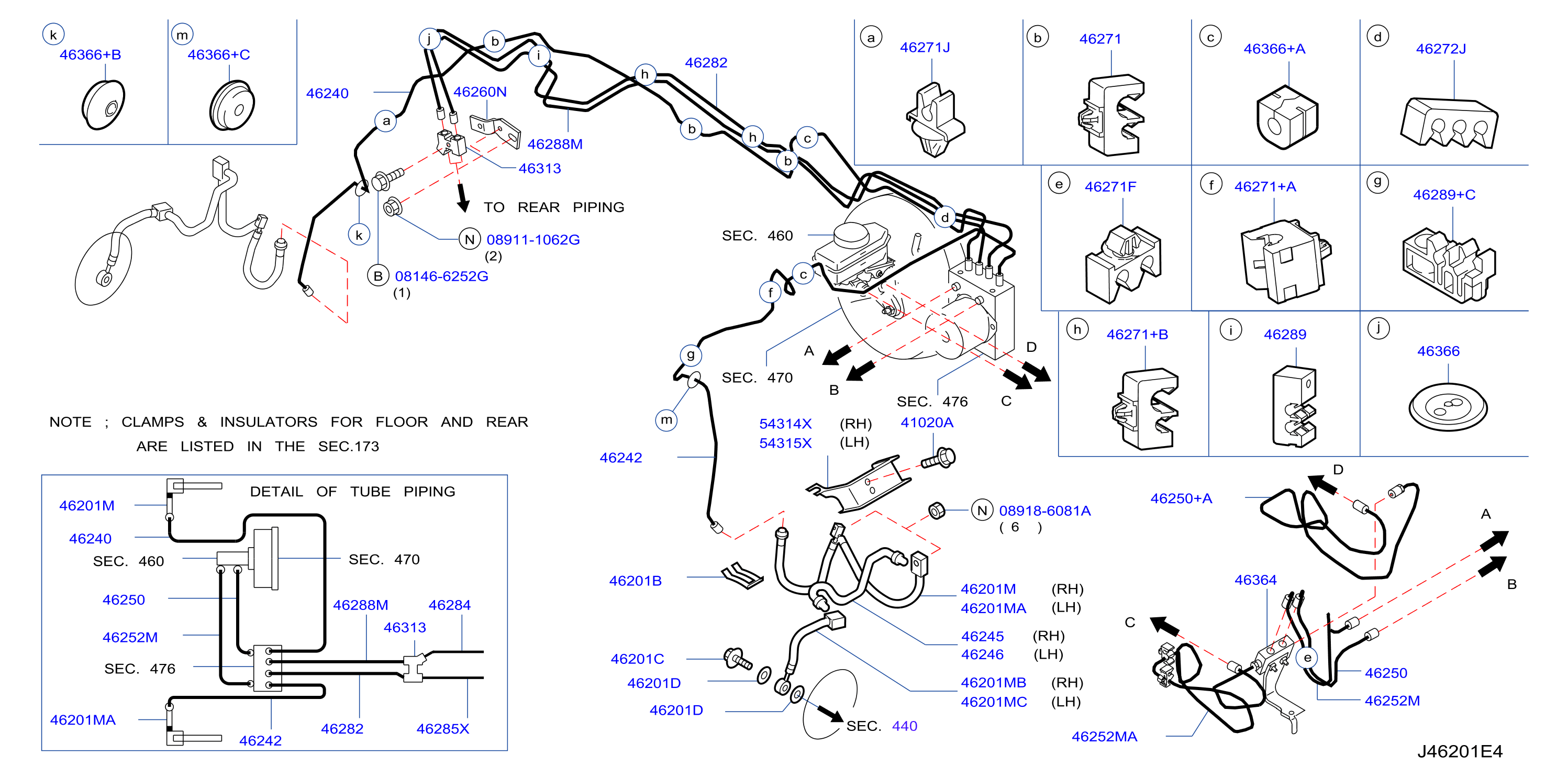

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-001-02 | Brake Piping Control Front Piping | 2007 - 2008 |
AREA: CHINA
BODY: S
GRADE: UPPER
|
No illustration for this section
The full parts list is available below
Parts in this diagram 62
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112104761 | 41020A | BOLT | |||
| 081466252G | 081466252G | BOLT - HEX | |||
| 089111062G | 089111062G | NUT - HEX | |||
| 089186081A | 089186081A | NUT - SLOCK | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210EG000 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210EG00A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46210EG010 | 46201MB | HOSE ASSY - BRAKE, FRONT | |||
| 46210JL40A | 46201M | HOSE ASSY - BRAKE, FRONT |
of
7
