| Code | Name | Period | Specifications |
|---|---|---|---|

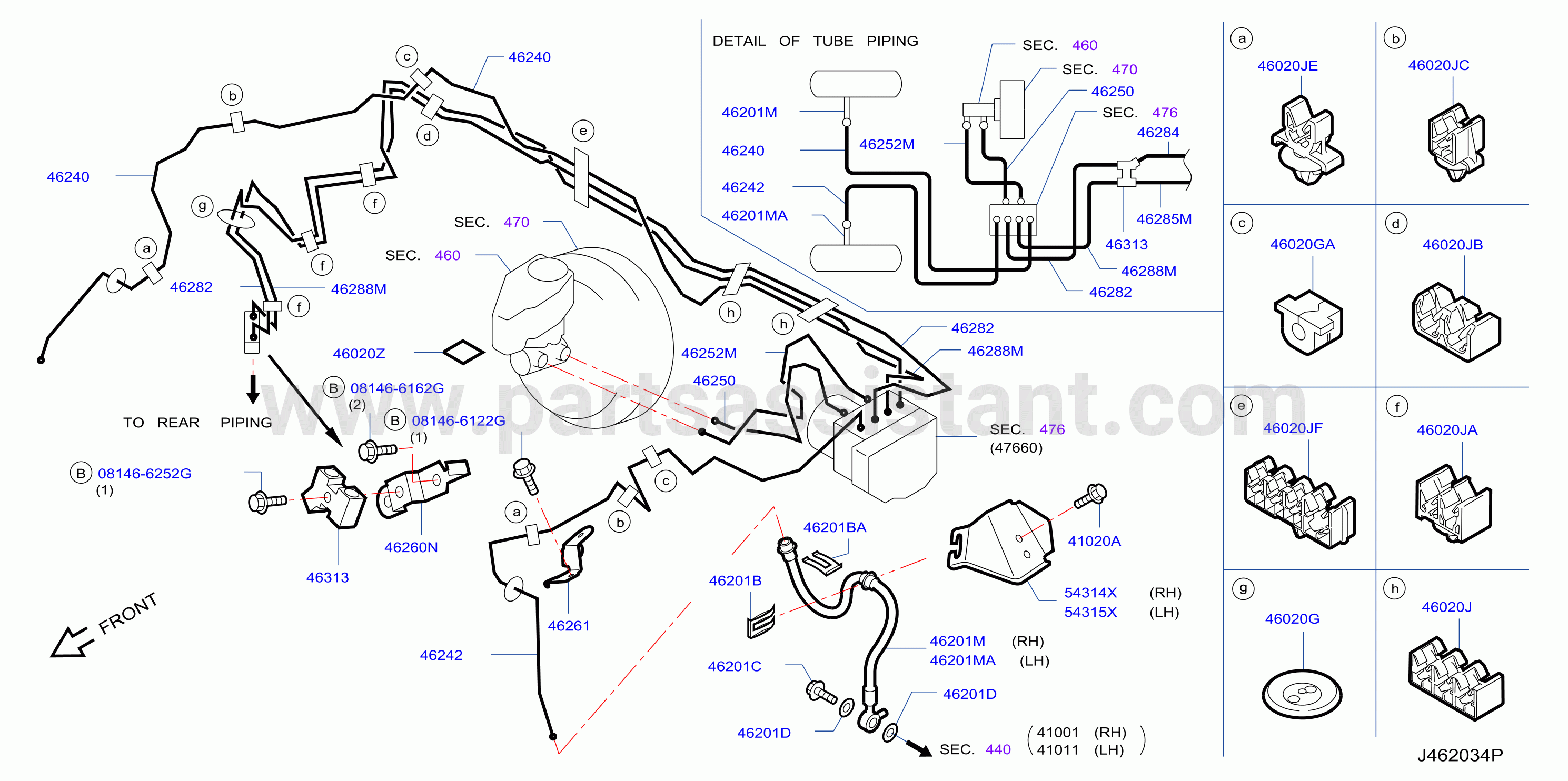

| 462A-002-01 | Brake Piping Control Front Piping | 2014 - 2017 |
BODY: LSEDAN
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112104761 | 41020A | BOLT | ||
| 081466122G | 081466122G | BOLT - HEX | ||
| 081466162G | 081466162G | BOLT - HEX | ||
| 081466252G | 081466252G | BOLT - HEX | ||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | ||
| 462063DA0A | 46201B | SPRING - LOCK, BRAKE HOSE | ||
| 462102V70A | 46201M | HOSE ASSY - BRAKE, FRONT | ||
| 462112V70A | 46201MA | HOSE ASSY - BRAKE, FRONT | ||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | ||
| 462402V76A | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 462422V76A | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 462502V77A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 462522V77A | 46252M | TUBE ASSY - BRAKE, MASTER CYLINDER TO REAR | ||
| 46260JK600 | 46260N | BRACKET - BRAKE TUBE | ||
| 462614GC6A | 46261 | BRACKET - BRAKE TUBE | ||
| 462712DR0A | 46020JE | CLIP | ||
| 46271JG00A | 46020JE | CLIP | ||
| 46271JK70A | 46020JC | CLIP | ||
| 46271JK71A | 46020JA | CLIP | ||
| 46271JK73A | 46020JF | CLIP | ||
| 46272JK70A | 46020JB | CLIP | ||
| 46272JK71A | 46020J | CLIP | ||
| 462822V76A | 46282 | TUBE ASSY - BRAKE, REAR | ||
| 462832V76A | 46288M | TUBE ASSY - BRAKE, REAR LH | ||
| 462842V70A | 46284 | TUBE ASSY - BRAKE, REAR | ||
| 462842V71A | 46284 | TUBE ASSY - BRAKE, REAR | ||
| 462852V70A | 46285M | TUBE ASSY - BRAKE, REAR | ||
| 462852V71A | 46285M | TUBE ASSY - BRAKE, REAR | ||
| 46313JG00A | 46313 | CONNECTOR - BRAKE TUBE | ||
| 463560E00A | 46201C | BOLT - UNION, FRONT BRAKE HOSE | ||
| 463661ME0A | 46020G | GROMMET | ||
| 46366EG000 | 46020GA | GROMMET | ||
| 543142V70B | 54314X | BRACKET - BRAKE HOSE, RH | ||
| 543144GA0A | 54314X | BRACKET - BRAKE HOSE, RH | ||
| 543152V70B | 54315X | BRACKET - BRAKE HOSE, LH | ||
| 543154GA0A | 54315X | BRACKET - BRAKE HOSE, LH | ||
| 748491EA0A | 46020Z | COVER - HOLE |
