| Code | Name | Period | Specifications |
|---|---|---|---|

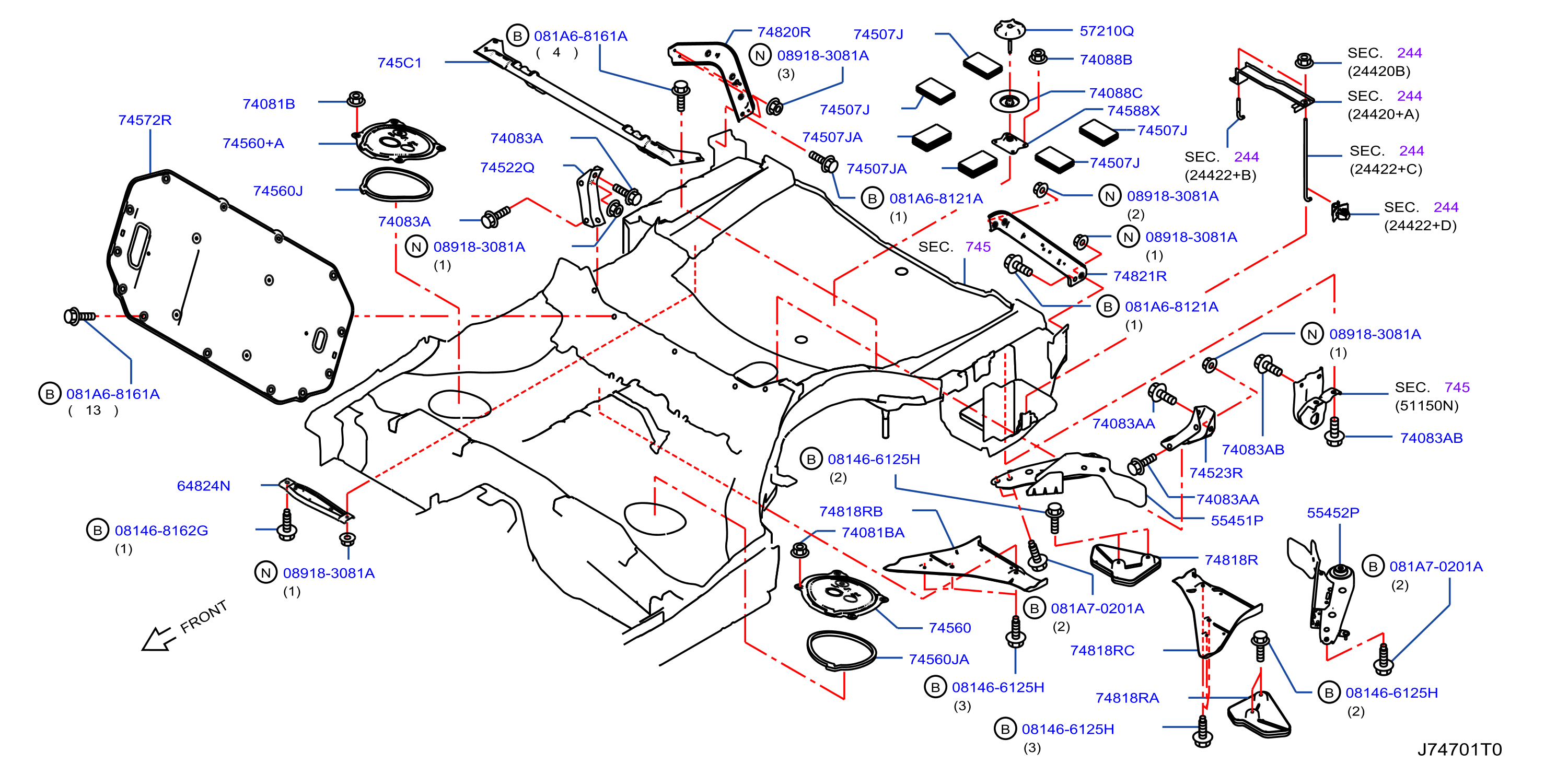

| 747C-002-01 | Floor Fitting Rear | 2019 - 2020 |
BODY: S
ENGINE: 2LTURBO
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 01125N0101 | 74083AB | BOLT | ||
| 0122500371 | 74081B | NUT | ||
| 081466125H | 081466125H | BOLT - HEX | ||
| 081468162G | 081468162G | BOLT - HEX | ||
| 081A68121A | 081A68121A | BOLT - FLANGE | ||
| 081A68161A | 081A68161A | BOLT - FLANGE | ||
| 081A70201A | 081A70201A | BOLT - HEX | ||
| 089183081A | 089183081A | NUT - FLANGE, HEX | ||
| 544596HH0A | 74083A | BOLT | ||
| 54459CD10A | 74083A | BOLT | ||
| 554511MA0C | 55451P | STAY ASSY - REAR SUSPENSION MEMBER RH | ||
| 554521MA0C | 55452P | STAY ASSY - REAR SUSPENSION MEMBER LH | ||
| 648244GB0A | 64824N | BRACKET ASSY - CANISTER | ||
| 745224GA1A | 74522Q | SUPPORT - REAR SEAT BACK, LOWER RH | ||
| 745234GA1A | 74523R | SUPPORT - REAR SEAT BACK, LOWER LH | ||
| 748181MA0A | 74818RB | COVER - UNDER, REAR | ||
| 748181MA0B | 74818RC | COVER - UNDER, REAR | ||
| 748181MG0A | 74818R | COVER - UNDER, REAR | ||
| 748181MG0B | 74818RA | COVER - UNDER, REAR | ||
| 748471MA0A | 74560J | SEAL - INSPECTION HOLE COVER | ||
| 748B04GA0A | 74820R | GUSSET - FLOOR REAR, RH | ||
| 748B14GA0A | 74821R | GUSSET - FLOOR REAR, LH | ||
| 748B44GA0A | 74820R | GUSSET - FLOOR REAR, RH | ||
| 767304GB0A | 74572R | SUPPORT ASSY - REAR SEAT BACK | ||
| G48484GAAH | 74560 | COVER - INSPECTION HOLE | ||
| G48484GAMH | 74560+A | COVER - INSPECTION HOLE |
