| Code | Name | Period | Specifications |
|---|---|---|---|

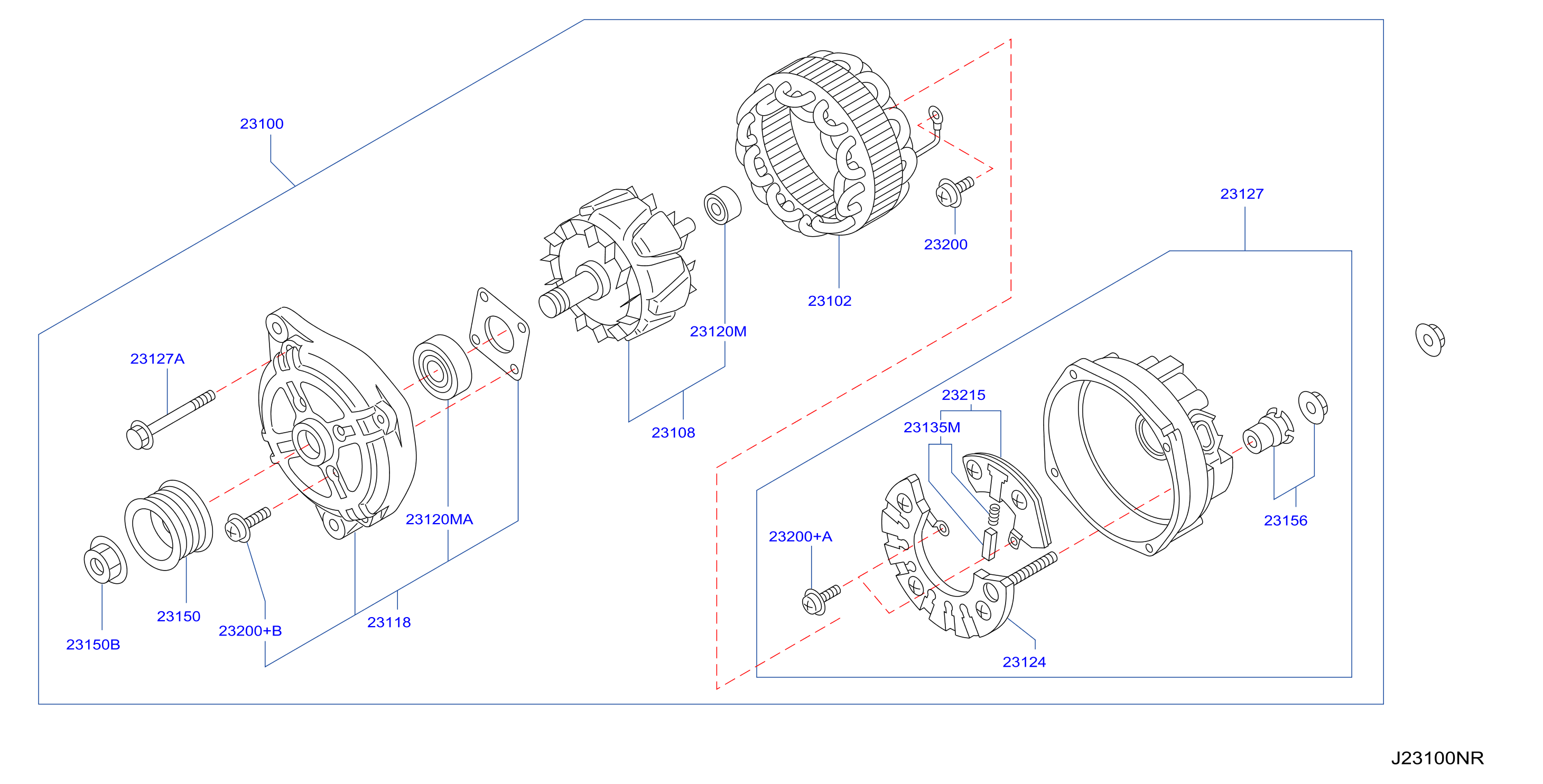

| 231C-001-01 | Alternator Alternator Assy | 2008 - 2008 |
ENGINE: VQ37VHR
|
No illustration for this section
The full parts list is available below
Parts in this diagram 21
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 231003FY1A | 23100 | GENERATOR | |||
| 23100JK01A | 23100 | GENERATOR | |||
| 23102JA11A | 23102 | STATOR ASSY | |||
| 23102JA11B | 23102 | STATOR ASSY | |||
| 23108JK01A | 23108 | ROTOR ASSY | |||
| 2311520P10 | 23200+B | SCREW SET | |||
| 23118JK01A | 23118 | COVER ASSY - FRONT | |||
| 2312022J20 | 23120MA | BEARING - BALL | |||
| 2312030R10 | 23120M | BEARING - BALL | |||
| 23124JK01A | 23124 | RECTIFIER ASSY |
