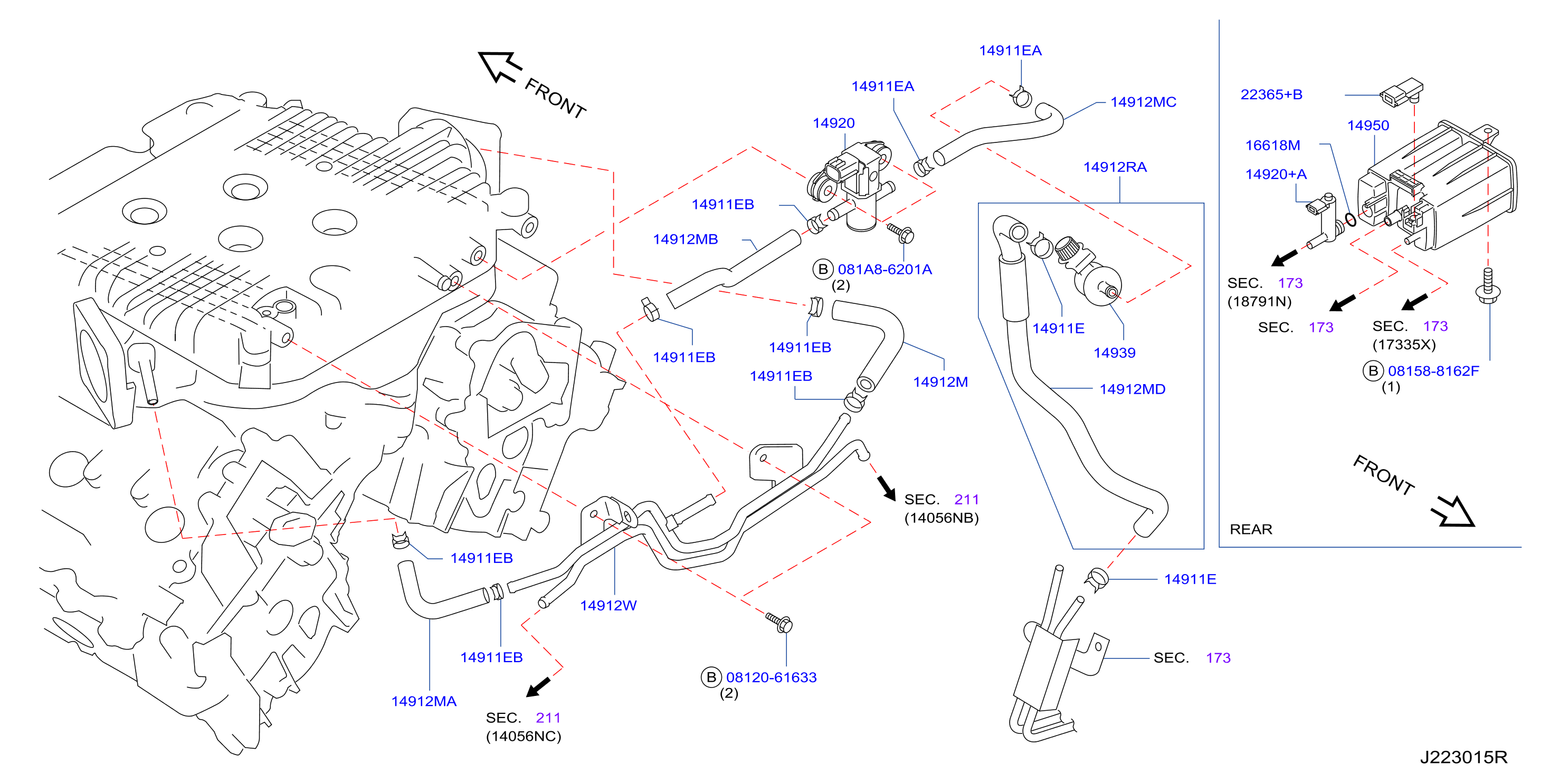

Engine Control Vacuum Piping Kra Twn
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 223A-003-01 | Engine Control Vacuum Piping Kra Twn | 2010 - 2011 |
AREA: TWN
ENGINE: VQ25HR
|
No illustration for this section
The full parts list is available below
Parts in this diagram 29
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800411 | 14911E | CLAMP - HOSE | |||
| 0812061633 | 0812061633 | BOLT - HEX | |||
| 081588162F | 081588162F | BOLT | |||
| 081A86201A | 081A86201A | BOLT | |||
| 149121NM0A | 14912MA | HOSE - FUEL EVAPORATION CONTROL | |||
| 149121NM0B | 14912M | HOSE - FUEL EVAPORATION CONTROL | |||
| 149121NM0C | 14912MB | HOSE - FUEL EVAPORATION CONTROL | |||
| 14912JK00B | 14912MA | HOSE - FUEL EVAPORATION CONTROL | |||
| 14912JK00C | 14912MB | HOSE - FUEL EVAPORATION CONTROL | |||
| 14912JK01A | 14912MC | HOSE - FUEL EVAPORATION CONTROL |
of
3
