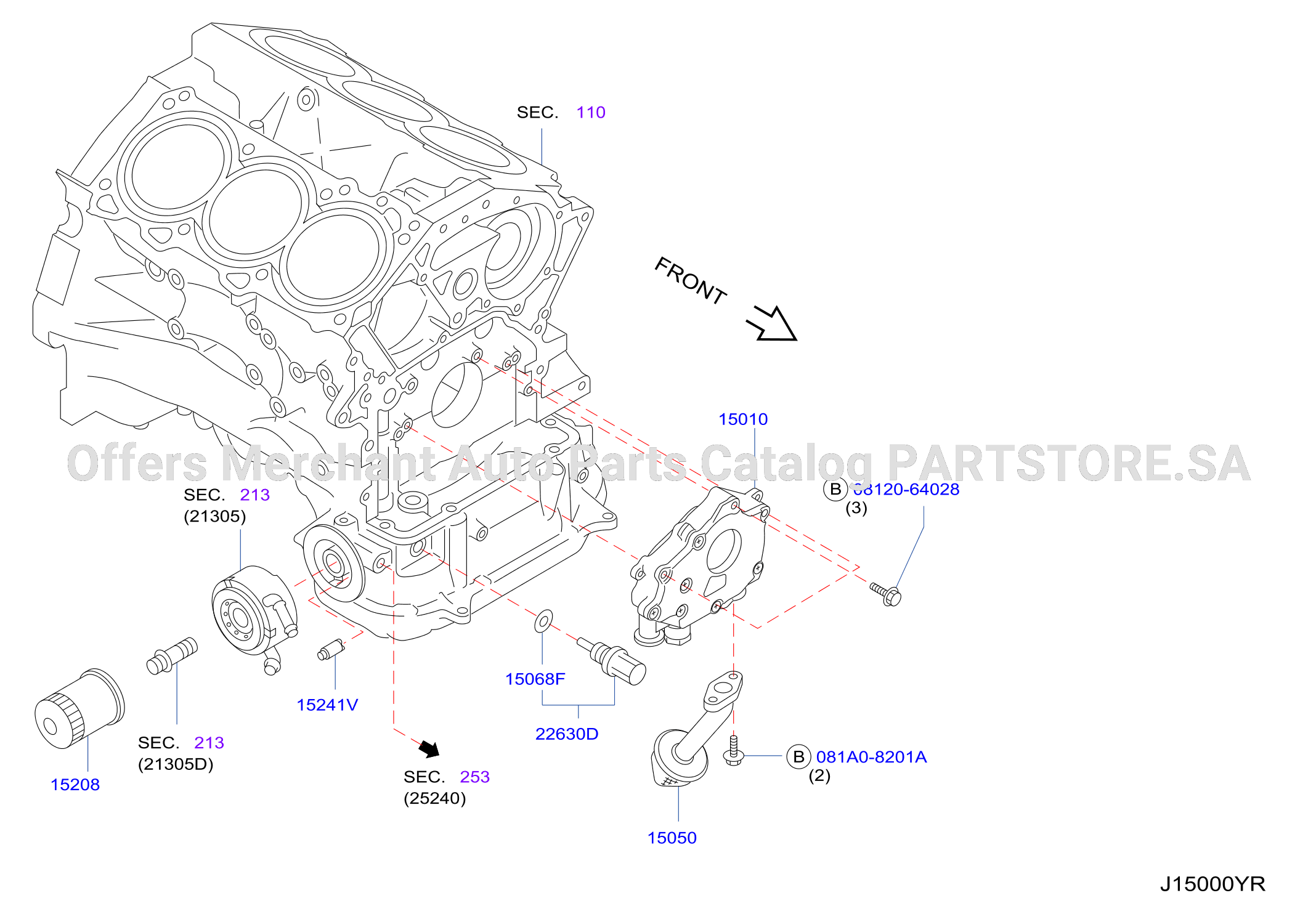

Lubricating System With Cooler
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 150C-007-01 | Lubricating System With Cooler | 2010 - 2011 |
AREA: GCC
ENGINE: VQ37VHR
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0812064028 | 0812064028 | BOLT - HEX | |||
| 081A08201A | 081A08201A | BOLT - FLANGE | |||
| 15010JK20D | 15010 | OIL PUMP ASSY | |||
| 15050JK20A | 15050 | STRAINER ASSY - OIL | |||
| 1520865F0B | 15208 | OIL FILTER ASSY | |||
| 1524143U0A | 15241V | VALVE ASSY - RELIEF | |||
| 2263044B20 | 22630D | SENSOR ASSY - OIL TEMPERATURE | |||
| 22636N4200 | 15068F | SEAL - O RING | |||
| A52081HCXA | 15208 | KEY VALUE OIL FILTER ASSY |
