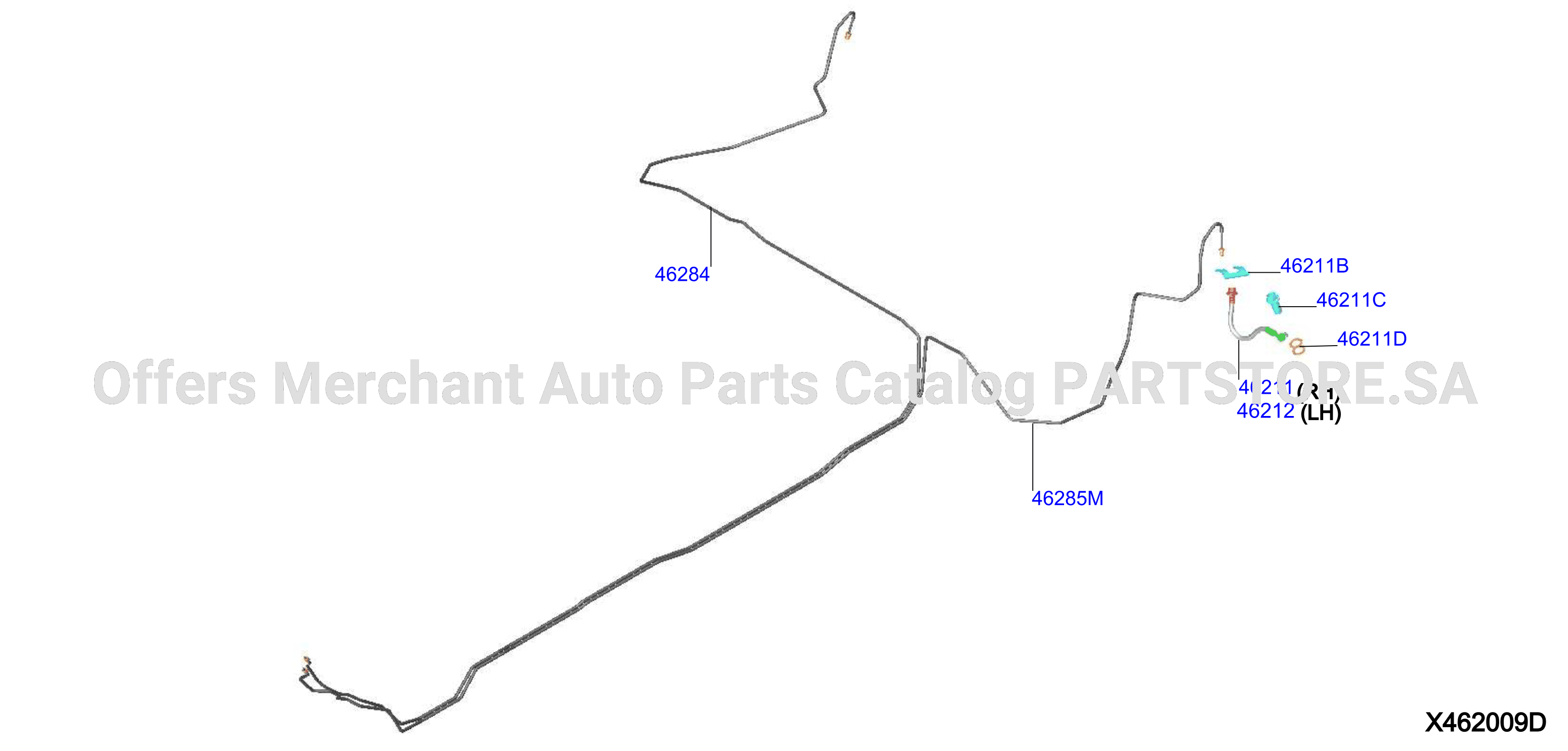

Brake Piping Control Rear Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-002-01 | Brake Piping Control Rear Piping | 2021 - 2022 |
BODY: WAG
DRIVE: AWD
|
No illustration for this section
The full parts list is available below
Parts in this diagram 9
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 462062J00A | 46211B | SPRING - LOCK, BRAKE HOSE | |||
| 462105VG0A | 46211 | HOSE ASSY - BRAKE, REAR RH | |||
| 462109CN0A | 46211 | HOSE ASSY - BRAKE, REAR RH | |||
| 462115VG0A | 46212 | HOSE ASSY - BRAKE, REAR LH | |||
| 462119CN0A | 46212 | HOSE ASSY - BRAKE, REAR LH | |||
| 46237A4600 | 46211D | GASKET - BRAKE HOSE | |||
| 462845NA0A | 46284 | TUBE ASSY - BRAKE, REAR | |||
| 462855NA0A | 46285M | TUBE ASSY - BRAKE, REAR | |||
| 463560E00A | 46211C | BOLT - UNION, REAR BRAKE HOSE |
