| Code | Name | Period | Specifications |
|---|---|---|---|

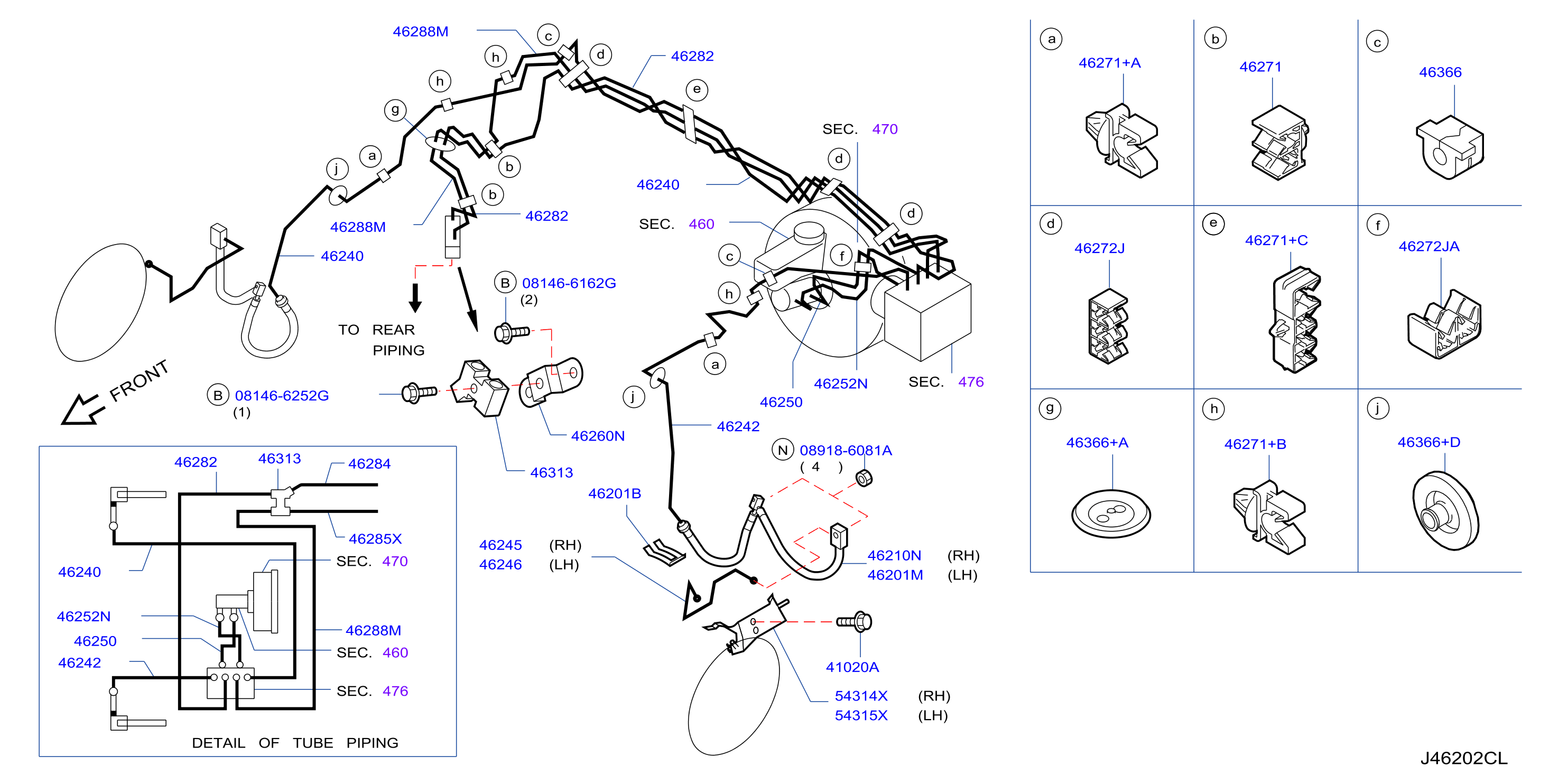

| 462C-003-01 | Brake Piping Control Front Piping | 2010 - 2010 |
BODY: W
ENGINE: VK50VE
|
| Part Number | Offers | Part Code | Name | Match |
|---|---|---|---|---|
| 0112104761 | 41020A | BOLT | ||
| 081466162G | 081466162G | BOLT - HEX | ||
| 081466252G | 081466252G | BOLT - HEX | ||
| 089186081A | 089186081A | NUT - SLOCK | ||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | ||
| 462401CD1A | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 462401CG2B | 46240 | TUBE ASSY - BRAKE, FRONT RH | ||
| 462421CD1A | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 462421CG2B | 46242 | TUBE ASSY - BRAKE, FRONT LH | ||
| 46245JK60B | 46245 | TUBE ASSY - FRONT BRAKE, RH | ||
| 46245JK64A | 46245 | TUBE ASSY - FRONT BRAKE, RH | ||
| 46246JK60B | 46246 | TUBE ASSY - FRONT BRAKE, LH | ||
| 46246JK64A | 46246 | TUBE ASSY - FRONT BRAKE, LH | ||
| 462501CD0A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | ||
| 462521CD0A | 46252N | TUBE ASSY - BRAKE | ||
| 46260JK600 | 46260N | BRACKET - BRAKE TUBE | ||
| 46271JG00A | 46271+A | CLIP - TUBE, BRAKE | ||
| 46271JK70A | 46271+B | CLIP - TUBE, BRAKE | ||
| 46271JK71A | 46271 | CLIP - TUBE, BRAKE | ||
| 46271JK73A | 46271+C | CLIP - TUBE, BRAKE | ||
| 46272JG41B | 46272JA | INSULATOR | ||
| 46272JK71A | 46272J | INSULATOR | ||
| 462821CD0A | 46282 | TUBE ASSY - BRAKE, REAR | ||
| 462821CG1B | 46282 | TUBE ASSY - BRAKE, REAR | ||
| 462831CD0A | 46288M | TUBE ASSY - BRAKE, REAR LH | ||
| 462831CG1B | 46288M | TUBE ASSY - BRAKE, REAR LH | ||
| 462841CA0A | 46284 | TUBE ASSY - BRAKE, REAR | ||
| 462851CA0A | 46285X | TUBE ASSY - BRAKE, REAR | ||
| 46313JG00A | 46313 | CONNECTOR - BRAKE TUBE | ||
| 46366AL505 | 46366+A | GROMMET | ||
| 46366EG000 | 46366 | GROMMET | ||
| 46366EH10A | 46366+D | GROMMET | ||
| 54314JK60A | 54314X | BRACKET - BRAKE HOSE, RH | ||
| 54314JK64A | 54314X | BRACKET - BRAKE HOSE, RH | ||
| 54315JK60A | 54315X | BRACKET - BRAKE HOSE, LH | ||
| 54315JK64A | 54315X | BRACKET - BRAKE HOSE, LH |
