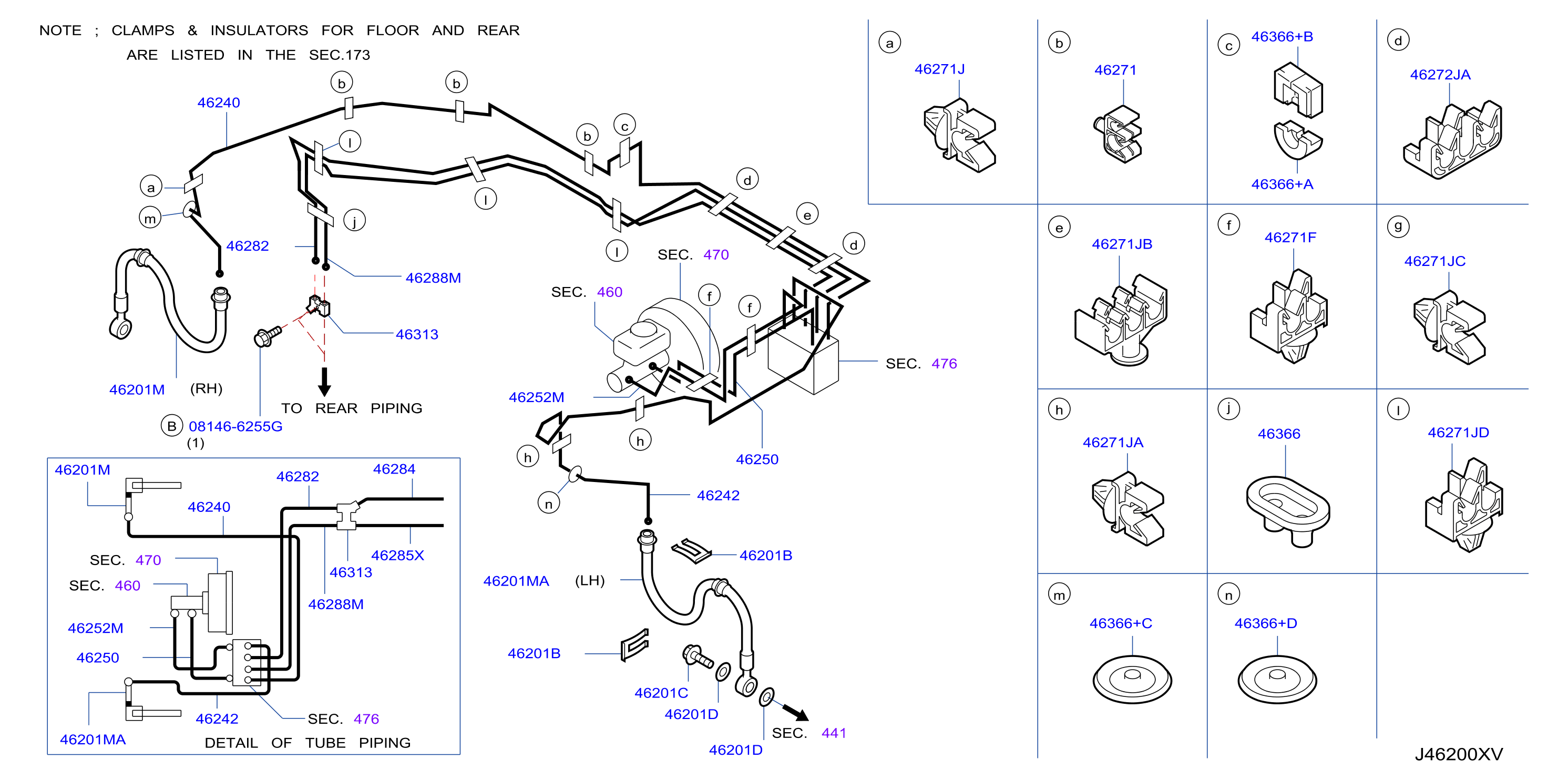

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462A-001-04 | Brake Piping Control Front Piping | 2006 - ... |
BODY: W
|
No illustration for this section
The full parts list is available below
Parts in this diagram 31
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466255G | 081466255G | BOLT - HEX | |||
| 462062J000 | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 46210CG000 | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 46211CG000 | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 46240CG001 | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 46242CG001 | 46242 | TUBE ASSY - BRAKE, FRONT LH | |||
| 46250CG000 | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT | |||
| 46250CL70A | 46250 | TUBE ASSY - BRAKE, MASTER CYLINDER TO FRONT |
of
4
