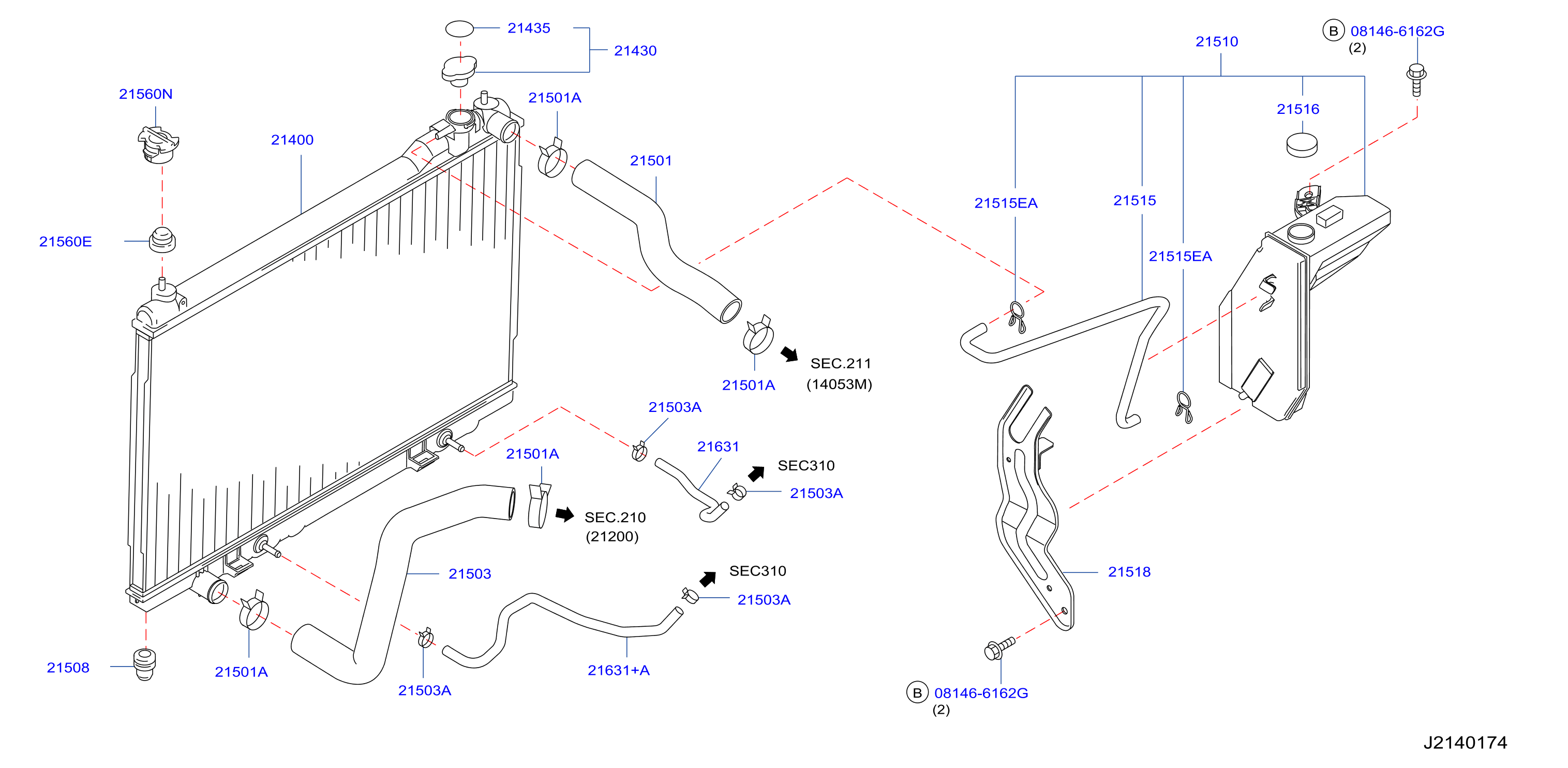

Parts in this diagram 24
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0155800181 | 21503A | CLAMP - HOSE | |||
| 0155800261 | 21501A | CLAMP - HOSE | |||
| 0155800351 | 21501A | CLAMP - HOSE | |||
| 0155800551 | 21501A | CLAMP - HOSE | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 164393U50A | 21503A | CLAMP - HOSE | |||
| 2143079901 | 21430 | CAP ASSY - RADIATOR | |||
| 2143579901 | 21435 | LABEL - CAUTION, RADIATOR | |||
| 21460CG000 | 21400 | RADIATOR ASSY | |||
| 21501CG000 | 21501 | HOSE - RADIATOR, UPPER | |||
| 21503CG000 | 21503 | HOSE - RADIATOR, LOWER | |||
| 2150610V00 | 21560E | MOUNTING - RUBBER, RADIATOR UPPER | |||
| 215084P000 | 21508 | MOUNTING - RUBBER, RADIATOR | |||
| 21542AL500 | 21560N | BRACKET - RADIATOR MOUNTING, UPPER | |||
| 21631CG010 | 21631 | HOSE - OIL COOLER, AUTO TRANSMISSION | |||
| 21632CG010 | 21631+A | HOSE - OIL COOLER, AUTO TRANSMISSION | |||
| 21639VS100 | 21503A | CLAMP - HOSE | |||
| 21639VS10A | 21503A | CLAMP - HOSE | |||
| 21710CG000 | 21510 | TANK ASSY - RADIATOR RESERVOIR | |||
| 2171279900 | 21516 | CAP - RESERVOIR TANK | |||
| 21741CG000 | 21515 | HOSE - RESERVOIR TANK | |||
| 21745CG000 | 21518 | BRACKET ASSY - RESERVOIR TANK | |||
| 2175015U01 | 21515EA | CLIP | |||
| 217504U00A | 21515EA | CLIP |
