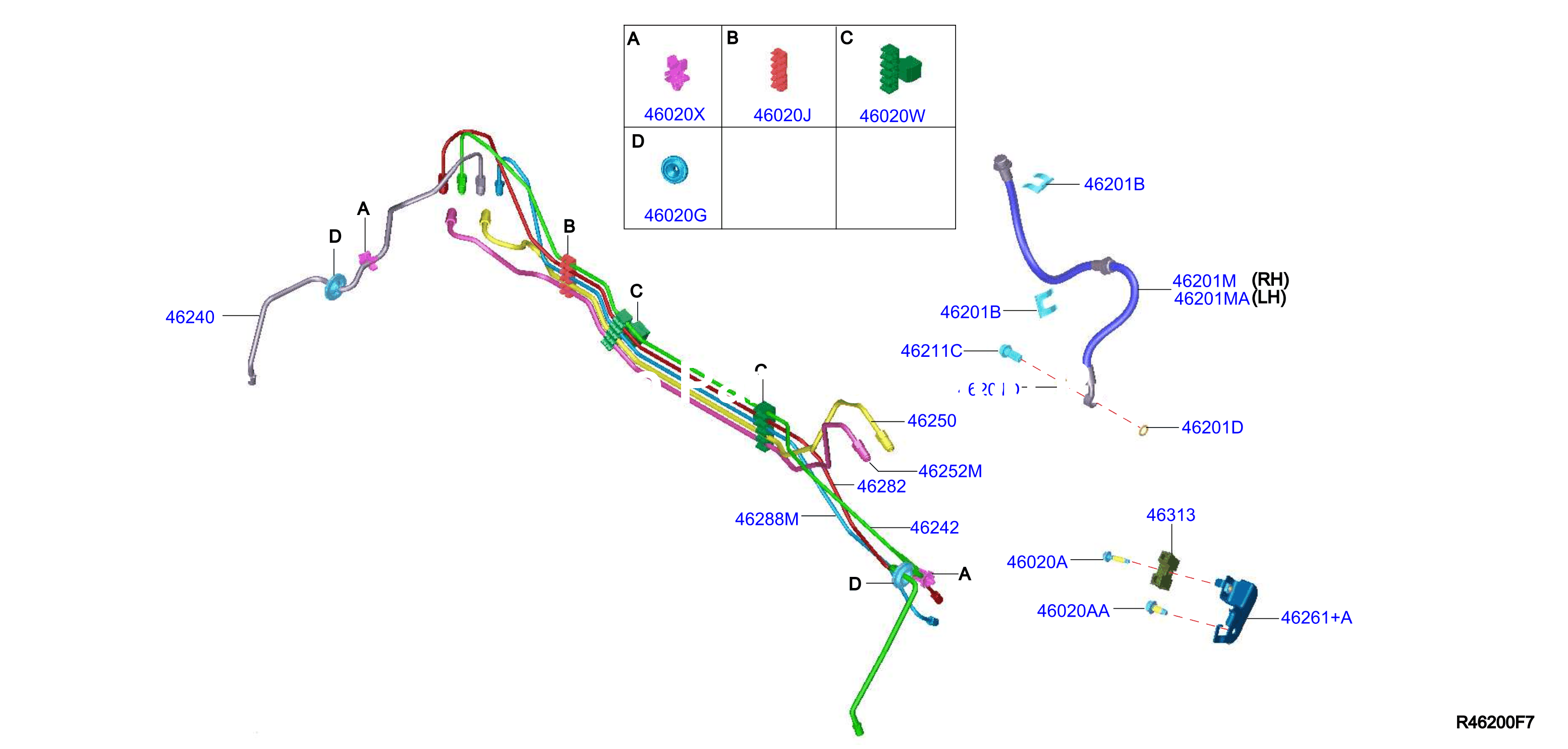

Brake Piping Control Front Piping
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 462B-002-01 | Brake Piping Control Front Piping | 2024 - ... |
BODY: W
|
No illustration for this section
The full parts list is available below
Parts in this diagram 28
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 01125A6101 | 46020A | BOLT | |||
| 01125A8031 | 46020AA | BOLT | |||
| 462062J00A | 46201B | SPRING - LOCK, BRAKE HOSE | |||
| 462106SA0A | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462106SA0B | 46201M | HOSE ASSY - BRAKE, FRONT | |||
| 462116SA0A | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 462116SA0B | 46201MA | HOSE ASSY - BRAKE, FRONT | |||
| 46237A4600 | 46201D | GASKET - BRAKE HOSE | |||
| 462406SA0A | 46240 | TUBE ASSY - BRAKE, FRONT RH | |||
| 462406TX0C | 46240 | TUBE ASSY - BRAKE, FRONT RH |
