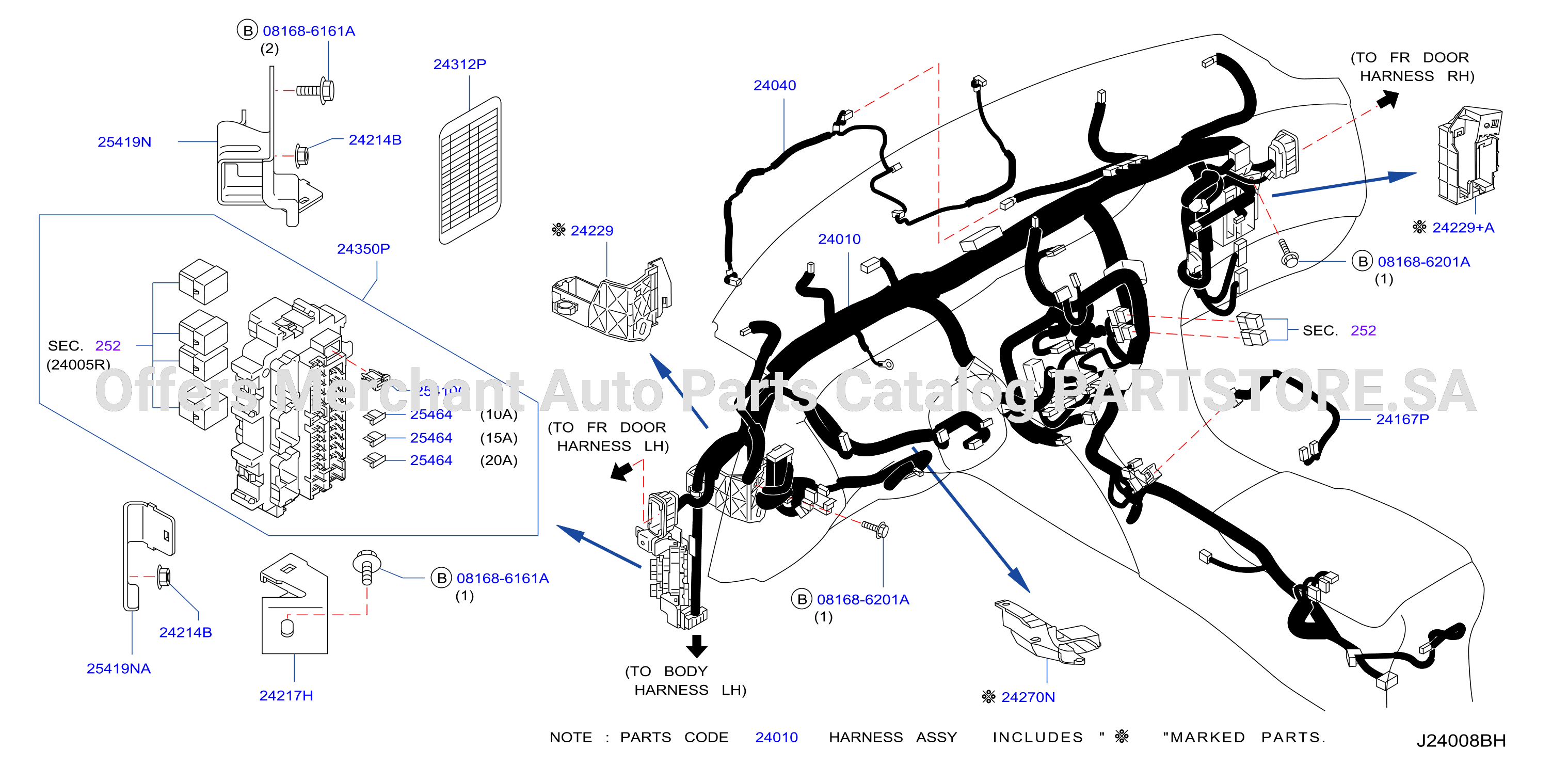

Wiring Main Harness
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 240B-007-03 | Wiring Main Harness | 2012 - 2015 |
BODY: WAG
ENGINE: VQ37VHR
|
No illustration for this section
The full parts list is available below
Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122500371 | 24214B | NUT - FLANGE | |||
| 081686161A | 081686161A | SCREW | |||
| 081686201A | 081686201A | SCREW | |||
| 240101UR2B | 24010 | HARNESS - MAIN | |||
| 240191BP1A | 24167P | HARNESS - SUB | |||
| 24040JK60A | 24040 | HARNESS - AIR CONDITIONER | |||
| 242701BA0A | 24270N | PROTECTOR - HARNESS | |||
| 243131BA0A | 24312P | LABEL - FUSE BLOCK | |||
| 243131BL0A | 24312P | LABEL - FUSE BLOCK | |||
| 24317JK60A | 25419N | BRACKET - FUSE BLOCK |
of
3
