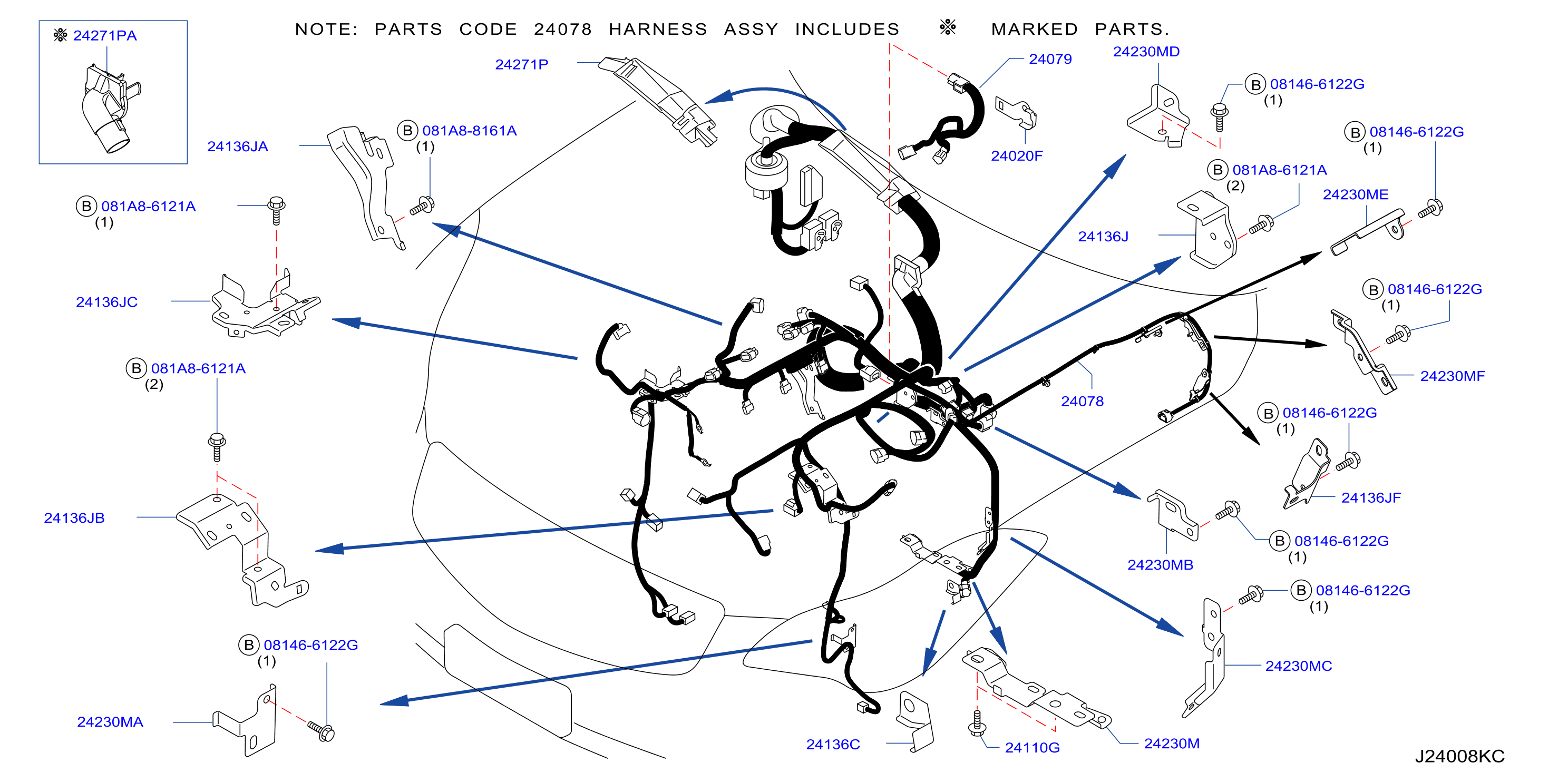

Parts in this diagram 24
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0112502501 | 24110G | BOLT | |||
| 081466122G | 081466122G | BOLT - HEX | |||
| 081A86121A | 081A86121A | BOLT | |||
| 081A88161A | 081A88161A | BOLT | |||
| 22650JK03A | 24020F | CLIP | |||
| 240111BT0B | 24078 | HARNESS - EGI | |||
| 240111NA0C | 24078 | HARNESS - EGI | |||
| 24079JL00A | 24079 | HARNESS ASSY - EGI SUB | |||
| 241361CA1A | 24136JF | BRACKET - EGI HARNESS | |||
| 241361CA2A | 24230MF | BRACKET | |||
| 241361CA3A | 24230ME | BRACKET | |||
| 241361CA5A | 24230MD | BRACKET | |||
| 241361CB0A | 24230M | BRACKET | |||
| 24136AL63A | 24230MB | BRACKET | |||
| 24136AL63B | 24230MC | BRACKET | |||
| 24136JK60A | 24136J | BRACKET - EGI HARNESS | |||
| 24136JK60B | 24136JA | BRACKET - EGI HARNESS | |||
| 24136JK60D | 24136JB | BRACKET - EGI HARNESS | |||
| 24136JK60E | 24136JC | BRACKET - EGI HARNESS | |||
| 24136JK61A | 24230M | BRACKET | |||
| 24136JK61B | 24230MA | BRACKET | |||
| 24236JK60A | 24136C | BRACKET - CONNECTOR | |||
| 24271AL501 | 24271PA | PROTECTOR - HARNESS | |||
| 24271JK60A | 24271P | PROTECTOR - HARNESS |
