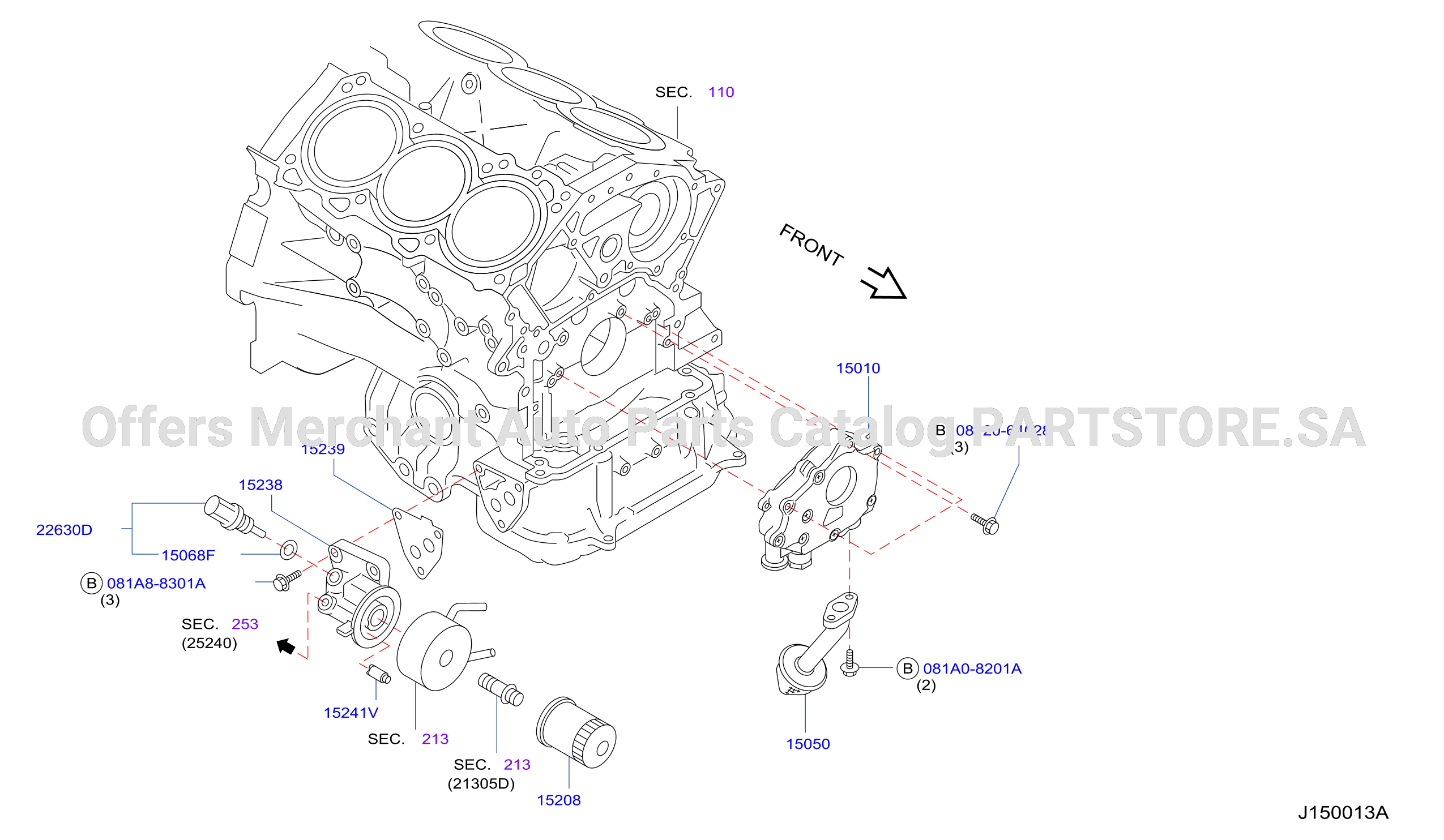

Lubricating System With Oil Cooler Prc
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|
| 150B-001-04 | Lubricating System With Oil Cooler Prc | 2015 - 2016 |
ENGINE: VQ37VHR
|
No illustration for this section
The full parts list is available below
Parts in this diagram 13
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0812064028 | 0812064028 | BOLT - HEX | |||
| 081A08201A | 081A08201A | BOLT - FLANGE | |||
| 081A88301A | 081A88301A | BOLT | |||
| 15010JK20D | 15010 | OIL PUMP ASSY | |||
| 15010JK21D | 15010 | OIL PUMP ASSY | |||
| 15050JK20A | 15050 | STRAINER ASSY - OIL | |||
| 1520865F0B | 15208 | OIL FILTER ASSY | |||
| 15238JK20A | 15238 | BRACKET - OIL FILTER | |||
| 15239JK20A | 15239 | GASKET - OIL FILTER | |||
| 1524143U0A | 15241V | VALVE ASSY - RELIEF |
