Engine Transmission Mounting
Search by VIN to filter parts for your vehicle
Part name must be at least 2 characters.
| Code | Name | Period | Specifications |
|---|---|---|---|

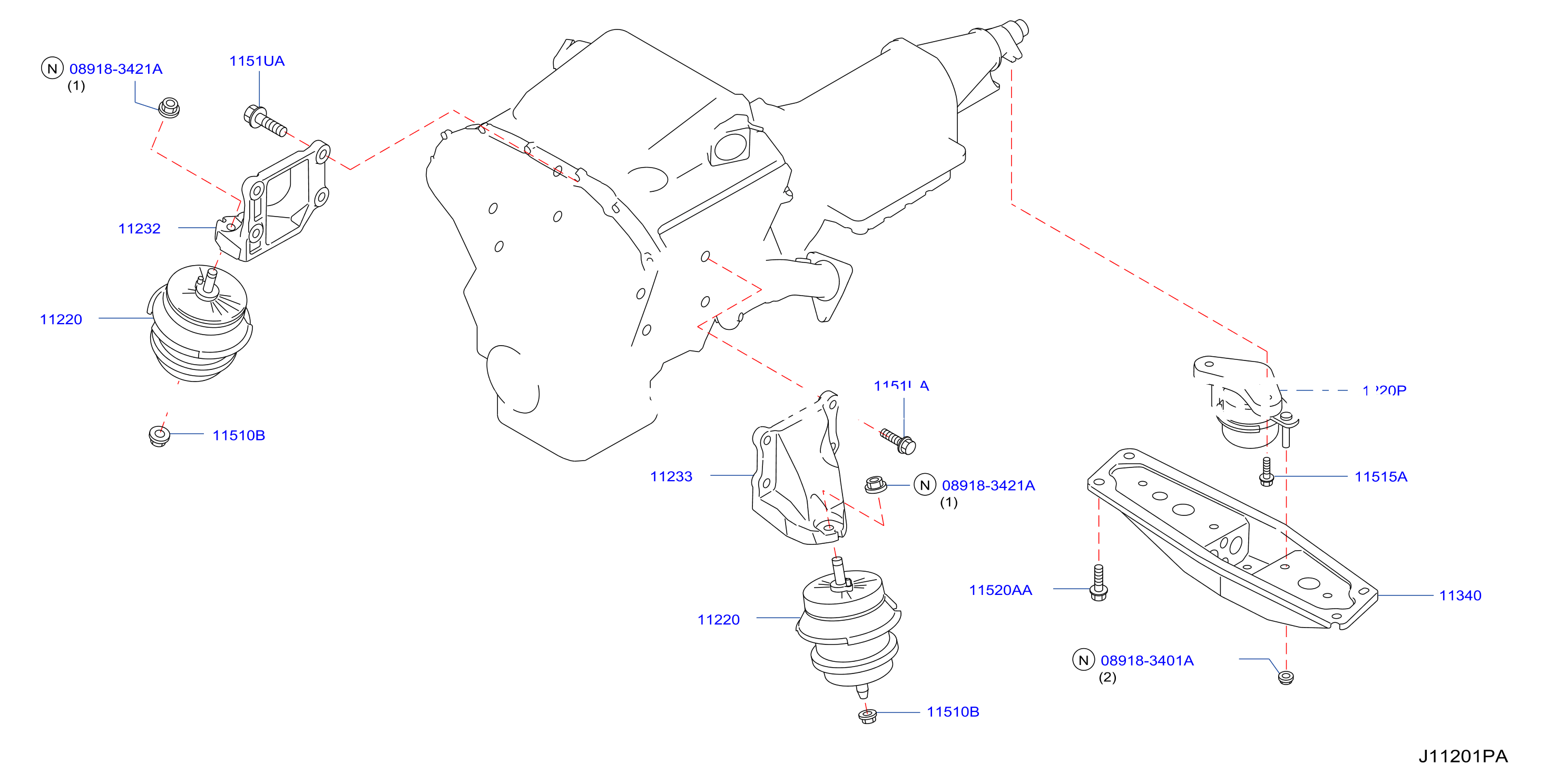

| 112Z-002-01 | Engine Transmission Mounting | 2012 - 2015 |
DRIVE: 2WD
ENGINE: VQ25HR
|
Parts in this diagram 14
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0122500931 | 11510B | NUT | |||
| 089183401A | 089183401A | NUT - FLANGE, HEX | |||
| 089183421A | 089183421A | NUT - FLANGE, HEX | |||
| 11220JK00A | 11220 | INSULATOR - ENGINE MOUNTING, FRONT | |||
| 112321PM0A | 11232 | BRACKET - ENGINE MOUNTING, RH | |||
| 11232JK000 | 11232 | BRACKET - ENGINE MOUNTING, RH | |||
| 112331PM0A | 11233 | BRACKET - ENGINE MOUNTING, LH | |||
| 11233JK000 | 11233 | BRACKET - ENGINE MOUNTING, LH | |||
| 112984M411 | 1151UA | BOLT | |||
| 11298AG90A | 11520AA | BOLT |
