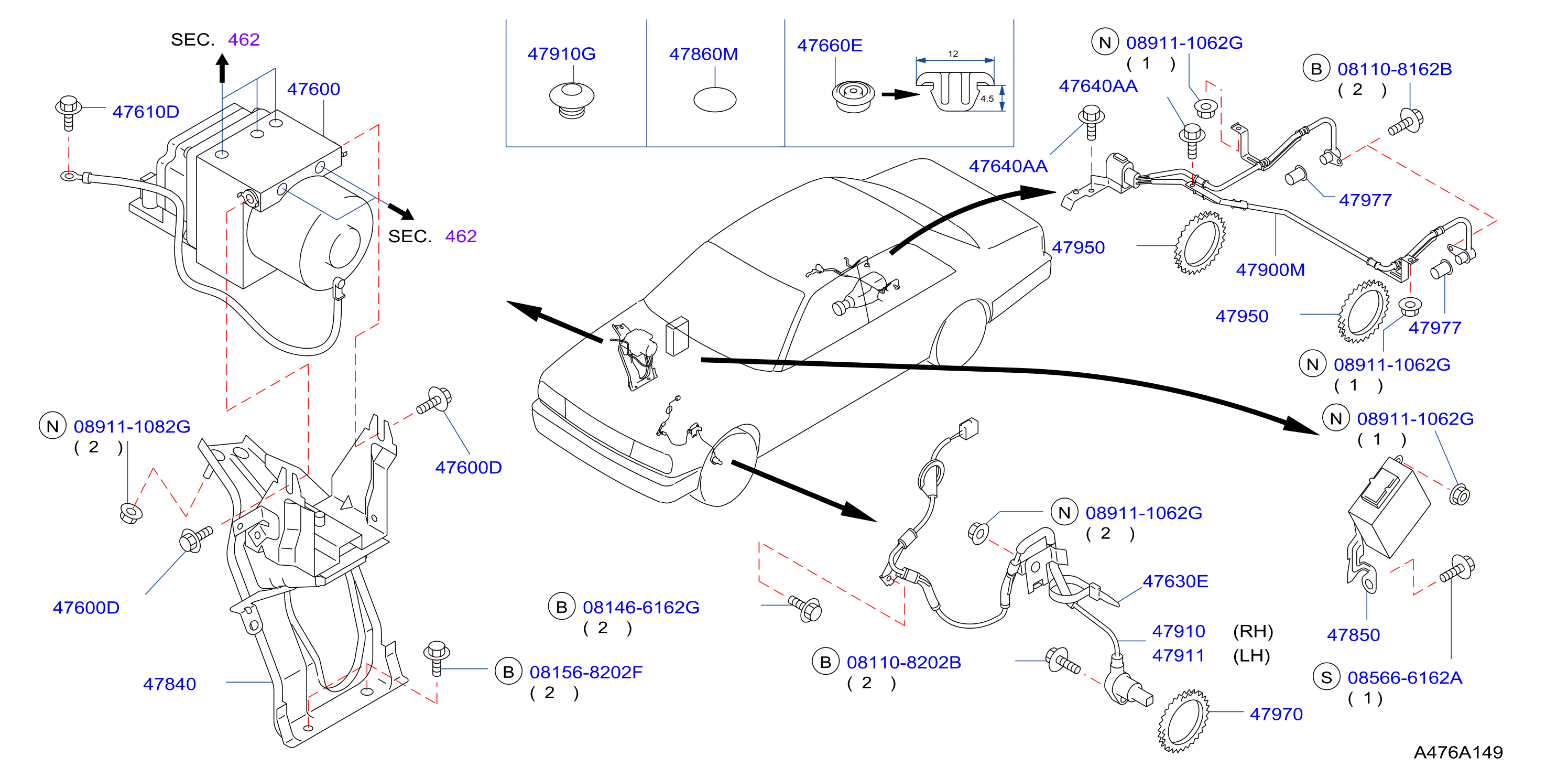

Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0145600411 | 47610D | SCREW | |||
| 0155200083 | 47630E | CLIP | |||
| 0165801481 | 47910G | PLUG | |||
| 081108162B | 081108162B | BOLT - HEX | |||
| 081108202B | 081108202B | BOLT - HEX | |||
| 081466162G | 081466162G | BOLT - HEX | |||
| 081568202F | 081568202F | BOLT - HEX, PP W / W | |||
| 085666162A | 085666162A | SCREW - TAPPING | |||
| 089111062G | 089111062G | NUT - HEX | |||
| 089111082G | 089111082G | NUT - HEX | |||
| 24253M7000 | 47660E | PLUG | |||
| 476003H066 | 47600 | ACTUATOR ASSY - ANTISKID | |||
| 476045L340 | 47600D | BOLT | |||
| 478403H010 | 47840 | BRACKET - ACTUATOR, ANTISKID | |||
| 478503H210 | 47850 | MODULE ASSY - ANTISKID | |||
| 479007P100 | 47900M | SENSOR ASSY - ANTISKID, REAR | |||
| 479106P000 | 47910 | SENSOR ASSY - ANTISKID, FRONT RH | |||
| 479116P000 | 47911 | SENSOR ASSY - ANTISKID, FRONT LH | |||
| 4795076T00 | 47950 | ROTOR - SENSOR, ANTISKID REAR | |||
| 479704P000 | 47970 | ROTOR - SENSOR, ANTISKID FRONT | |||
| 4797732P10 | 47977 | SHIM - ANTISKID SENSOR, REAR | |||
| 544590P005 | 47640AA | BOLT | |||
| 64891W5000 | 47860M | COVER - MODULE |
