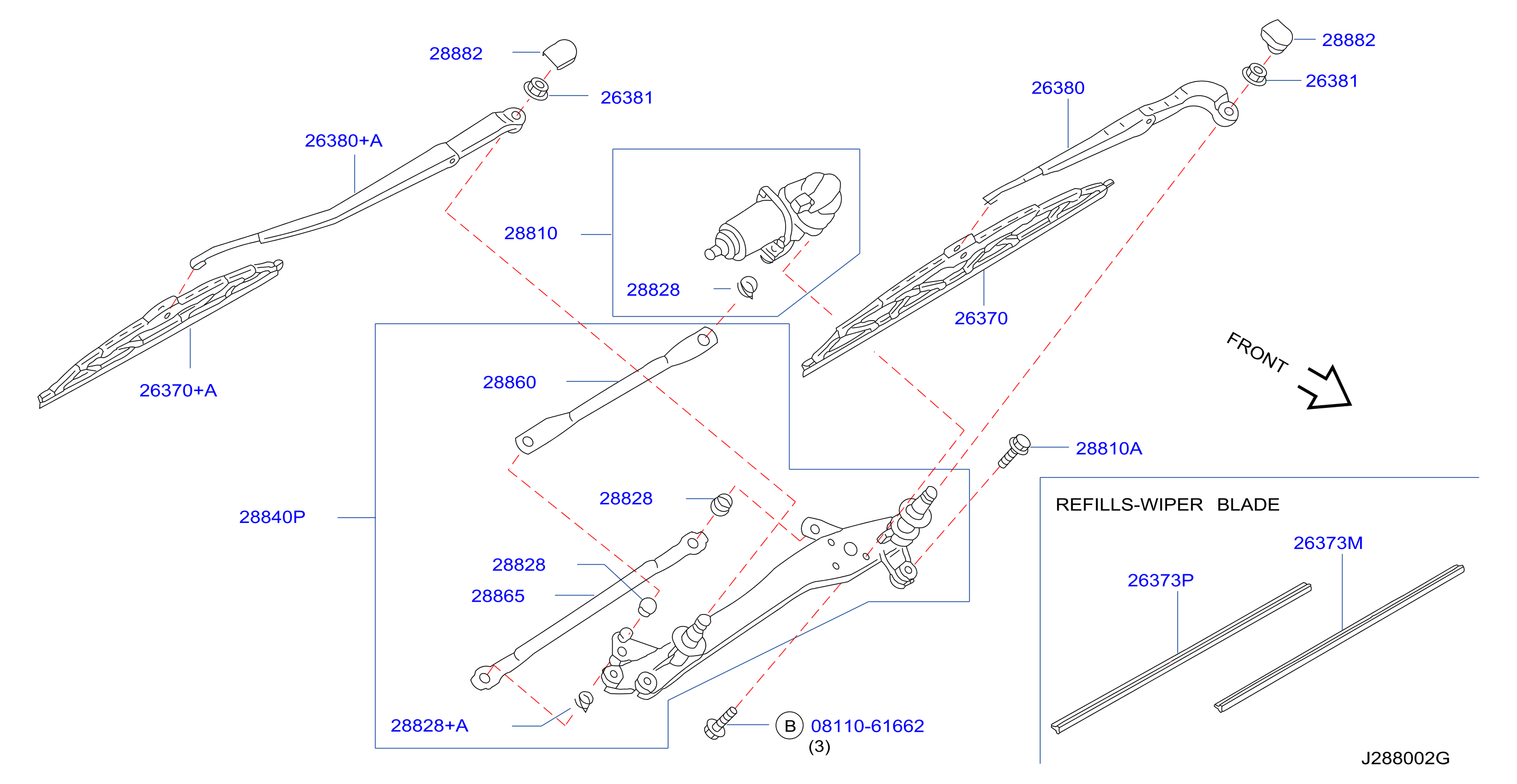

Parts in this diagram 20
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 0811061662 | 0811061662 | BOLT - HEX | |||
| 28810AR000 | 28810 | MOTOR ASSY - WINDSHIELD WIPER | |||
| 2882865F00 | 28828 | SEAL - BALL RETAINER | |||
| 2882865F01 | 28828+A | SEAL - BALL RETAINER | |||
| 28840AR200 | 28840P | LINK ASSY - WIPER | |||
| 28841AR000 | 28860 | LINK ASSY - CONNECTING, NO 1 | |||
| 28842AR000 | 28865 | LINK ASSY - CONNECTING, NO 2 | |||
| 28881AR200 | 26380 | ARM ASSY - WINDSHIELD WIPER | |||
| 288824N000 | 28882 | COVER - WIPER ARM | |||
| 28886AR200 | 26380+A | ARM ASSY - WINDSHIELD WIPER | |||
| 2888950J00 | 26381 | NUT - WIPER ARM | |||
| 28890AR200 | 26370 | BLADE ASSY - WINDSHIELD WIPER | |||
| 28890AR205 | 26370+A | BLADE ASSY - WINDSHIELD WIPER | |||
| 28895AR200 | 26373M | REFILL - WIPER BLADE, DRIVER | |||
| 28895AR205 | 26373P | REFILL - WIPER BLADE ASSIST | |||
| 28895AR20A | 26373M | REFILL - WIPER BLADE, DRIVER | |||
| 28899AD000 | 28810A | SCREW | |||
| B8890U45XB | 26370+A | KEY VALUE BLADE ASSY - WINDSHIELD WIPER | |||
| B8890U65XB | 26370 | KEY VALUE BLADE ASSY - WINDSHIELD WIPER | |||
| B8891450XN | 26373P | KEY VALUE REFILL - WIPER BLADE ASSIST |
