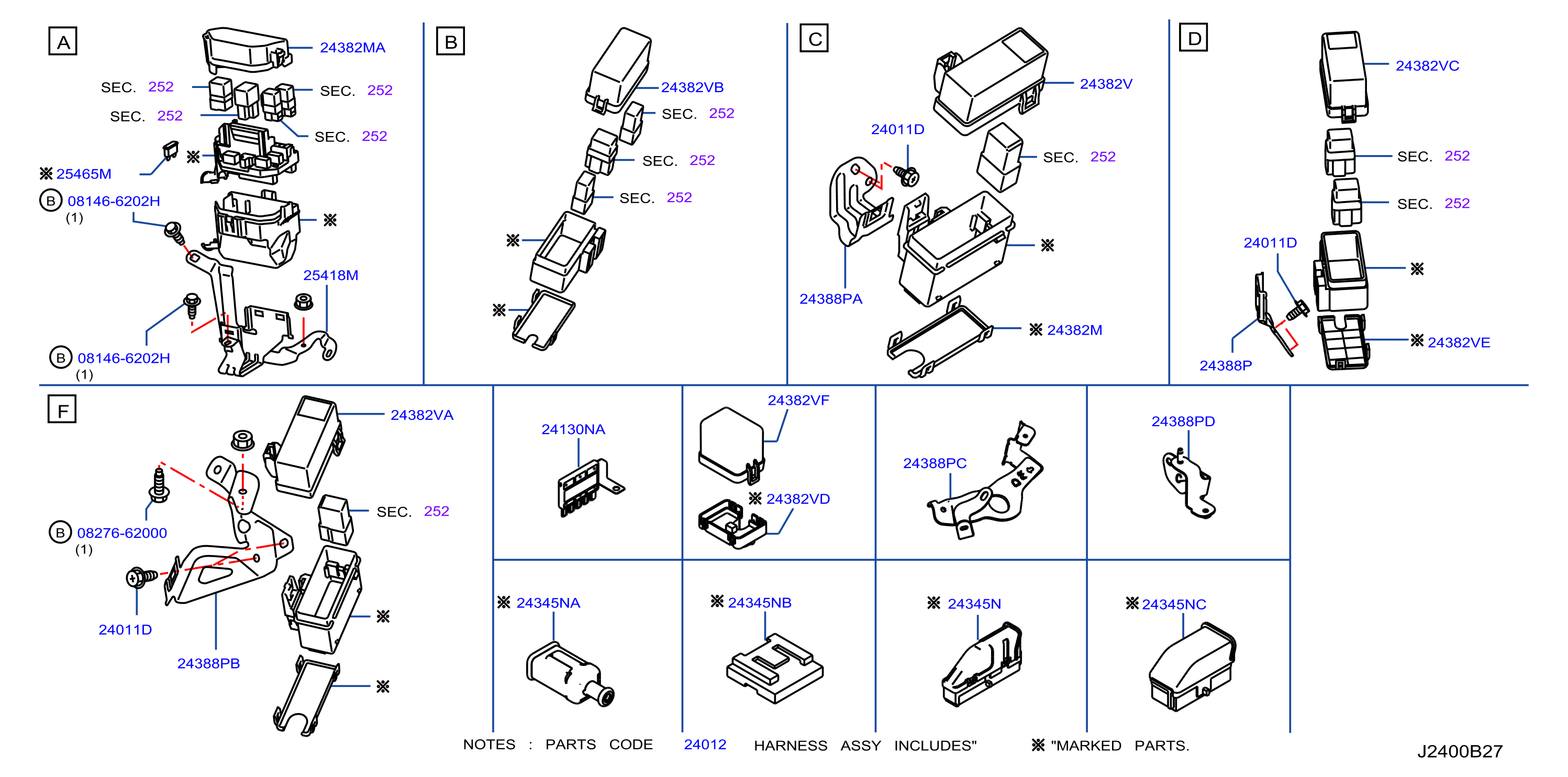

Parts in this diagram 23
| Part Number | Offers | Part Code | Name | Compatibility | Match |
|---|---|---|---|---|---|
| 081466202H | 081466202H | BOLT - HEX | |||
| 0827662000 | 0827662000 | BOLT - WELD | |||
| 243198991A | 25465M | FUSE | |||
| 243198991B | 25465M | FUSE | |||
| 243198992C | 25465M | FUSE | |||
| 243198993A | 25465M | FUSE | |||
| 24335C9900 | 24130NA | DIODE | |||
| 243454M445 | 24345N | COVER - CONNECTOR | |||
| 2434585E11 | 24345NA | COVER - CONNECTOR | |||
| 24345AX00B | 24345NB | COVER - CONNECTOR | |||
| 24345JK05A | 24345NC | COVER - CONNECTOR | |||
| 243726HB0A | 24382MA | COVER - RELAY BOX | |||
| 24372JK60A | 24382M | COVER - RELAY BOX | |||
| 243824GA0B | 24382VC | COVER - RELAY BOX | |||
| 243824GD0A | 24382V | COVER - RELAY BOX | |||
| 243824GD3A | 24382VB | COVER - RELAY BOX | |||
| 2438264U20 | 24382VD | COVER - RELAY BOX | |||
| 24382AM600 | 24382VE | COVER - RELAY BOX | |||
| 243884GA0C | 24388PD | BRACKET - RELAY BOX | |||
| 243884GA0E | 24388P | BRACKET - RELAY BOX | |||
| 243884GC0B | 24388PA | BRACKET - RELAY BOX | |||
| 243884GC1B | 24388PC | BRACKET - RELAY BOX | |||
| 243884GC1C | 25418M | BRACKET - FUSIBLE LINK HOLDER |
